Cast iron compressor housing
Cast iron compressor housings provide a robust structure for compressor-side durability and dimensional stability in replacement turbocharger assemblies.
Click image to zoom
2837180 HX83 Turbocharger Compressor Housing Replacement
Aftermarket 2837180 HX83 compressor housing for heavy-duty applications including Hitachi EX1900-6 and Cummins QSK38/QSK19 engines. Verify OEM reference numbers and engine fitment before ordering.
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Cross Reference
4037669
Show more cross references
4037669 FOR 2834735 CH FOR 2834736 CH FOR 2837529 CH FOR 2837531 CH FOR 2837532 CH FOR 2837533 CH FOR 2837540 CH FOR 2838541 CH FOR 2839018 CH FOR 2839019 CH FOR 2839885 CH FOR 2881772 CH FOR 2881849 CH FOR 2882106 CH FOR 2882149 CH FOR 3772777 CH FOR 3777194 CH FOR 3777195 CH FOR 3777586 CH FOR 3782584 CH FOR 3782586 CH FOR 3782897 CH FOR 3784728 CH FOR 3785886 CH FOR 3790718 CH FOR 3790719 CH FOR 3792956 CH FOR 3794409 CH FOR 4033005 CH FOR 4033010 CH FOR 4033480 CH FOR 4033755 CH FOR 4040239 CH FOR 4040240 CH FOR 4040241 CH FOR 4041702 CH FOR 4041703 CH FOR 4041704 CH FOR 4043252 CH FOR 4043253 CH FOR 4043254 CH FOR 4043255 CH FOR 4043624 CH FOR 4043625 CH FOR 4047475 CH FOR 4047476 CH FOR 4047882 CH FOR 4049908 CH FOR 4049909 CH FOR 4049910 CH FOR 4089987 CH FOR 4309558 CH FOR 4352415 CH FOR 4955290 CH FOR 4955430 CH FOR 4955513 CH FOR 4955514 CH FOR 4955933 CH FOR 4956137 CH FOR 4956143 CH FOR 4956144 CH FOR 4956145 CH
US$ 245.00
/ 1 pc(s)
Qty
Subtotal: US$ 245.00
Send an InquiryProduct Key Features
This aftermarket 2837180 HX83 compressor housing is a replacement component for heavy-duty applications including Hitachi EX1900-6 mining excavators and Cummins QSK38 engines. Verify part number, engine code, and OEM reference numbers against your specific turbocharger configuration before ordering.
Key Specifications
- Part Number: 2837180
- Product Type: Compressor Housing
- Turbo Model: HX83
- Gross Weight: 19.4 kg
- Packing Dimensions: 41 x 39 x 23 cm
- Representative OEM References: 4037669, 2834735 CH, 2834736 CH
- Application Clues: Cummins QSK38, QSK19, Q19 engines
- Image Availability: High-resolution studio views showing cast metal housing, central bore, and mounting flange
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- HITACHI > EX1900-6 > EX1900-6 Mining excavator > hydraulic shovel > CUMMINS QSK38
- HITACHI > Hitachi Excavator > Cummins QSK38
- Ingersoll Rand > T4W > T4W DH > T4W DH Truck-mounted water-well > deep-hole drilling rig > CUMMINS Q19 600HP
- KOMATSU > KOMATSU WA600 > CUMMINS QSK19
- LiuGong > 8128H > 8128H Wheel Loader > QSK19
- POWERTEC GENERATOR SYSTEM > PCC750B; 545 kW prime > 600 kW standby > 600 kW standby Genset > CUMMINS QSK19 805HP
- Terex > TR45 > TR45 Rigid haul truck > CUMMINS Q19 > QSK19
This HX83 compressor housing is listed for replacement applications across heavy-duty mining, construction, and generator equipment. Reference applications include Hitachi EX1900-6 mining excavators with Cummins QSK38 engines, Komatsu WA600 wheel loaders with QSK19 engines, and Terex TR45 rigid haul trucks. Additional clues point to Ingersoll Rand T4W DH drilling rigs and PowerTec generator sets. Buyers should verify the part number 2837180, engine code, and specific OEM reference numbers against their existing turbocharger configuration before ordering. Technical fitment support is available to confirm backplate and actuator alignment for your specific unit.
Technical Notes

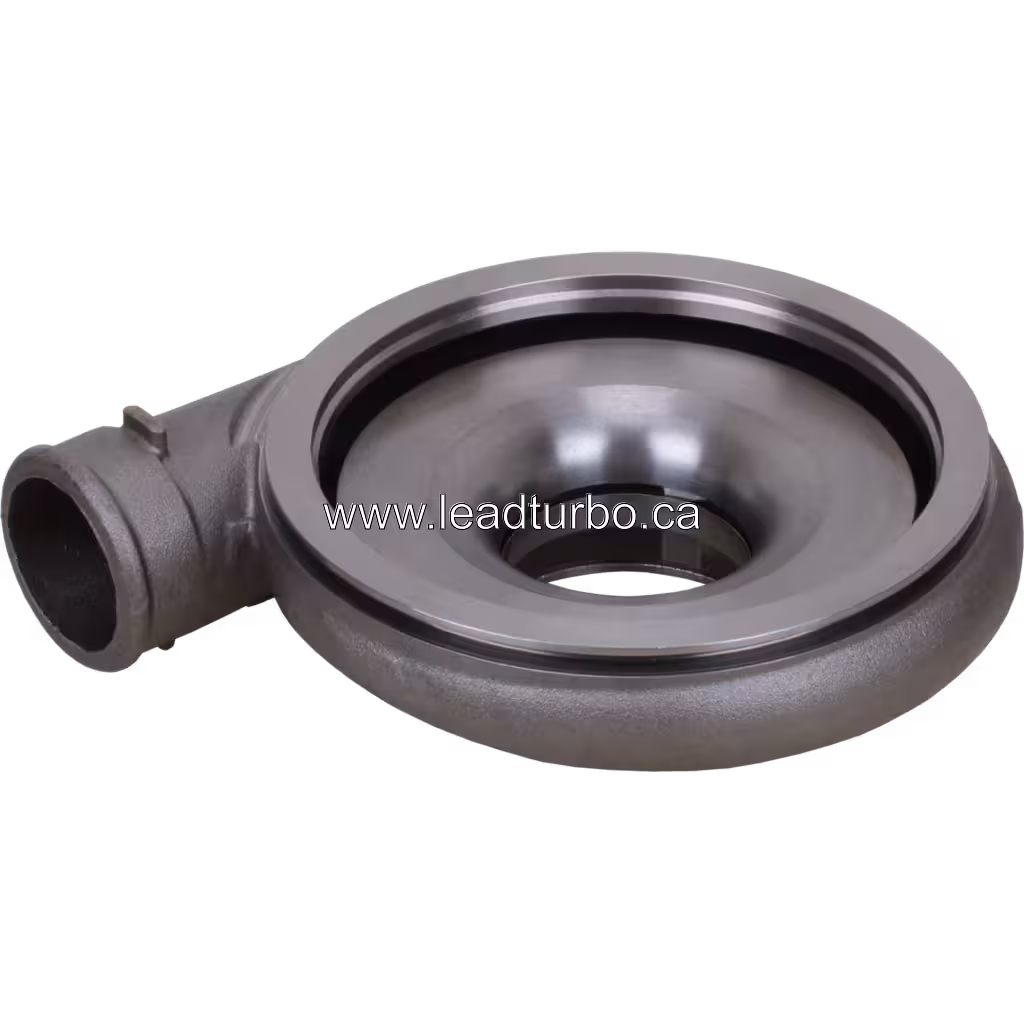

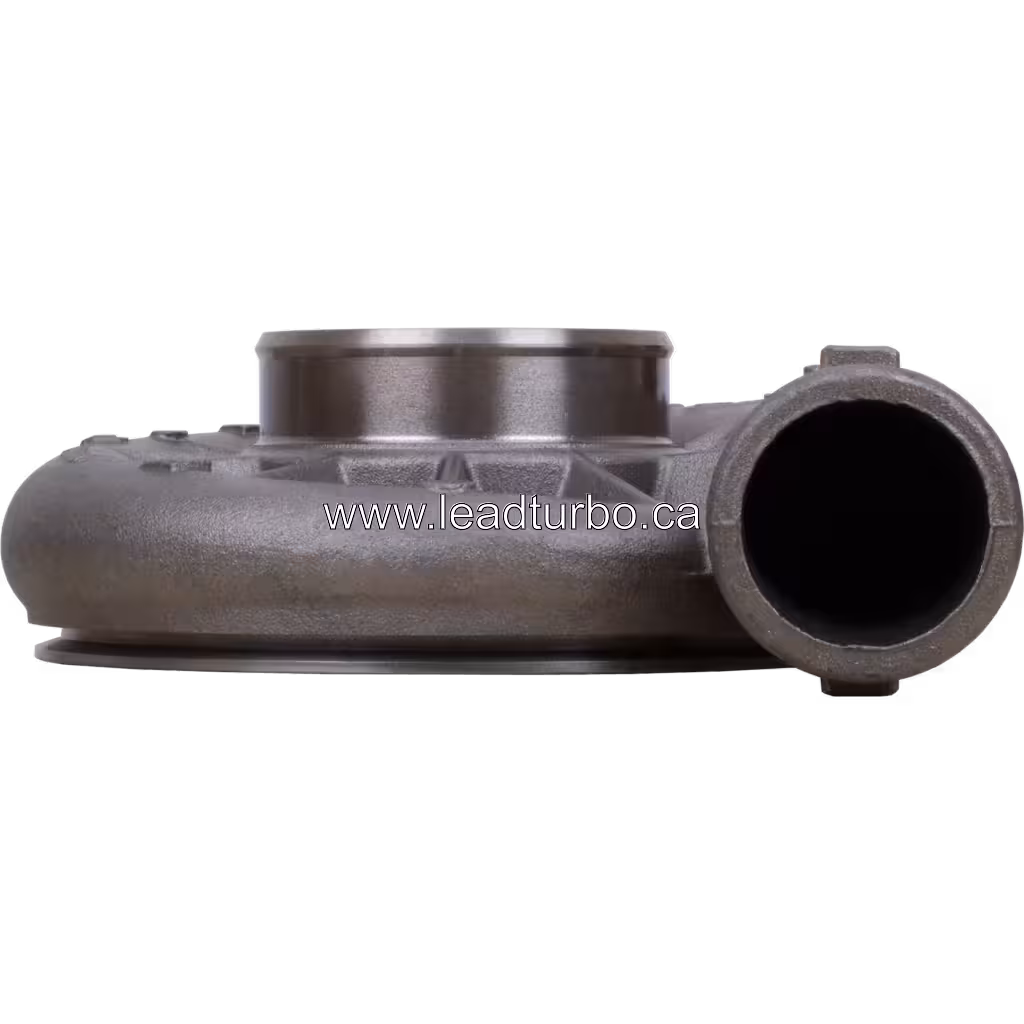

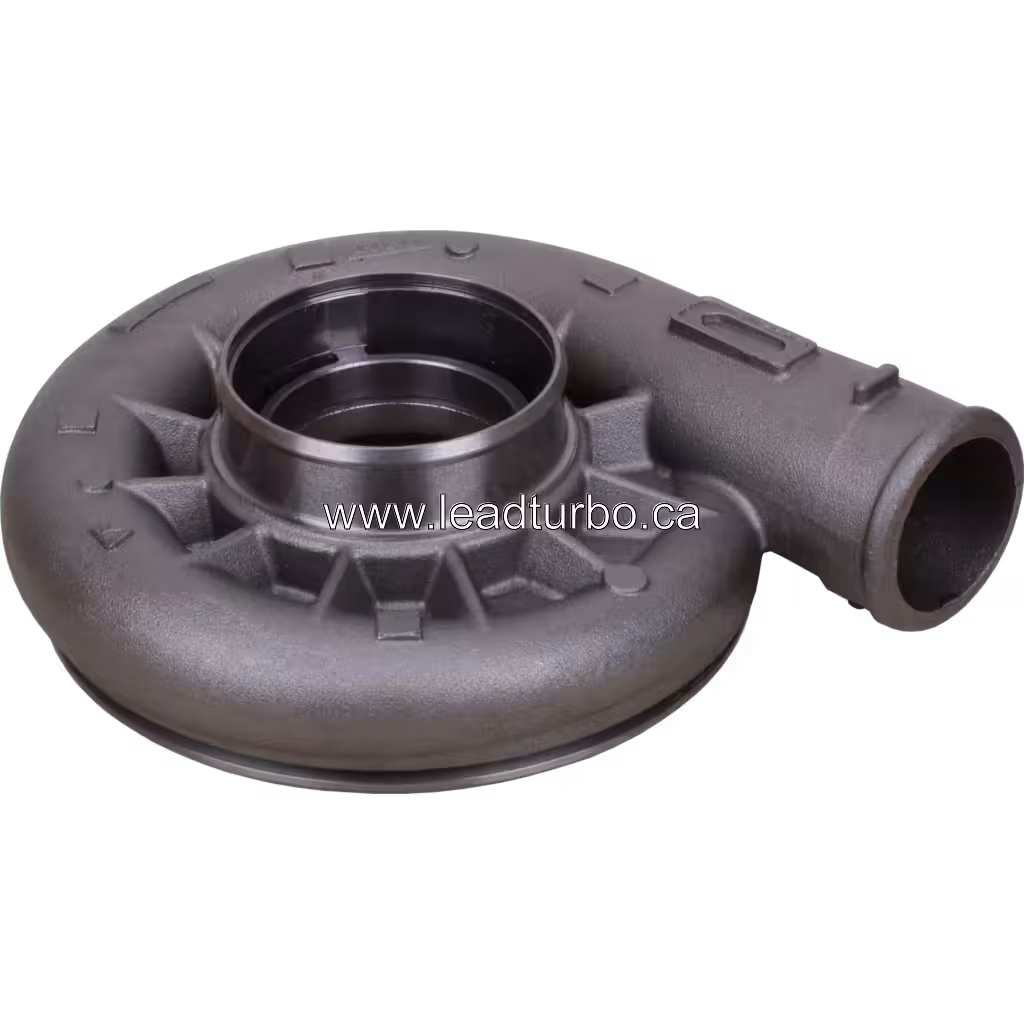

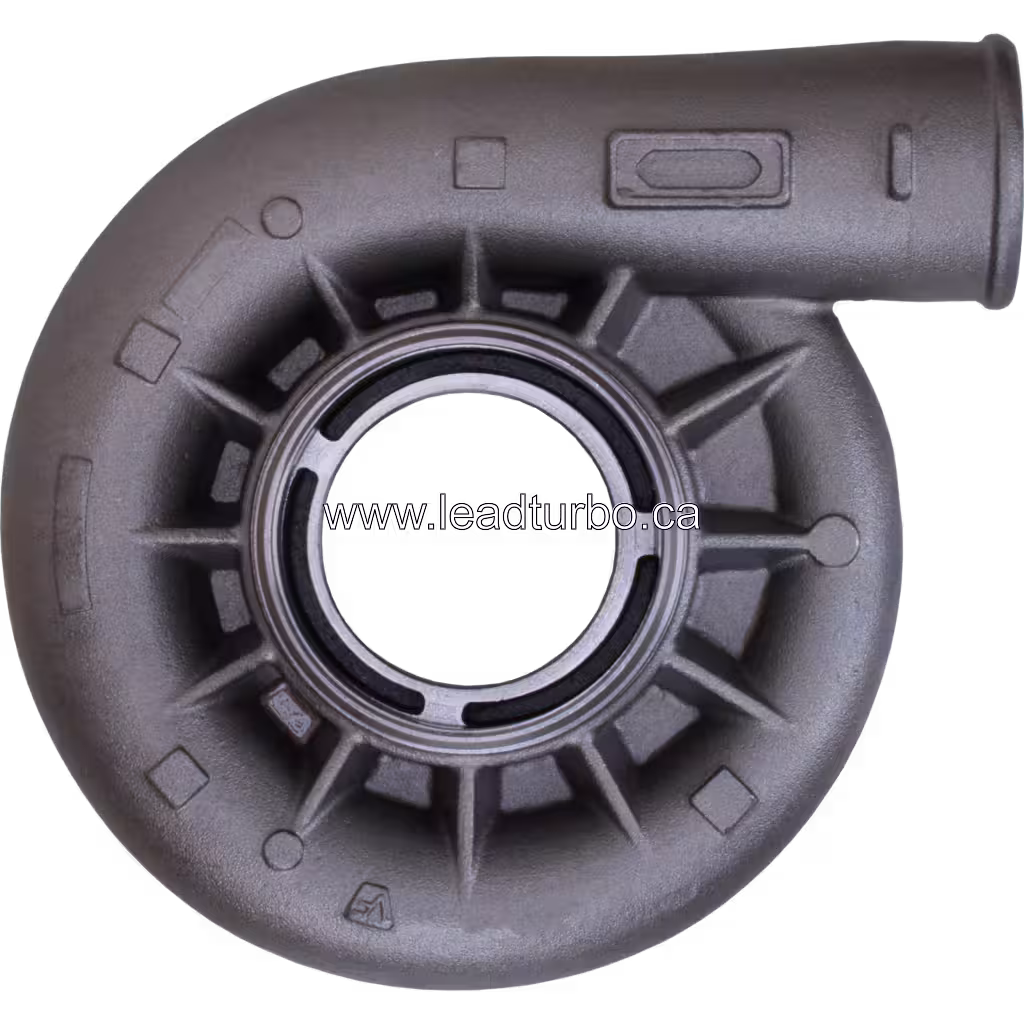

The HX83 compressor housing features a cast metal construction with a machined central bore and radial structural ribs visible on the top surface. A large cylindrical outlet port extends from the side, while the underside displays a flat mounting flange with bolt holes for backplate attachment. No specific part numbers or material grades are stamped on the visible surfaces. Buyers should verify the backplate bolt pattern and actuator mounting details against their existing turbocharger configuration. Technical fitment support is available to confirm alignment for Cummins QSK38 or QSK19 engine applications before installation.
B2B Supply
LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing for the 2837180 HX83 compressor housing. Worldwide shipping is available for this 19.4 kg component. Technical fitment support is provided to verify backplate alignment and actuator rod length against your specific Cummins QSK38 or QSK19 engine configuration. Contact our team to confirm OEM reference numbers and secure your order.
Product FAQ
This HX83 compressor housing references 63 OEM numbers, including 4037669, 2834735 CH, and 2834736 CH. Verify these against your specific turbocharger configuration.
Confirm the backplate bolt pattern and sealing surface match your existing HX83 turbocharger. The housing is a aftermarket replacement component, but backplate alignment must be checked during installation.
Measure the actuator rod length on your current turbocharger and compare it to the new housing's mounting details. Ensure the actuator spring rate and rod length are consistent with your engine's boost requirements.
The 2837180 compressor housing has a gross weight of 19.4 kg and ships in a 41x39x23 cm package. This weight is typical for heavy-duty industrial turbocharger components.
EX1900-6 and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by EX1900-6.
Compatibility Verify part number 2837180, engine code (QSK38/QSK19), vehicle application, and OEM reference numbers against your specific unit before ordering. This is an aftermarket replacement component; confirm backplate and actuator fitment for your turbo configuration.
