4045417 HE800FG HX82 Compressor Housing for Cummins QSK45

This aftermarket 4045417 compressor housing is a replacement component for the HE800FG HX82 turbocharger, designed for Cummins QSK45 1500HP engines in heavy-duty applications. It serves as a reference application for Liebherr R 9350 G6 mining excavators and other heavy equipment, with OEM reference numbers available for fitment verification.

Key Specifications

• Part Number: 4045417
• Product Type: Compressor Housing
• Turbo Model: HE800FG HX82
• Application Clues: Cummins QSK45 1500HP; Liebherr R 9350 G6 Mining Excavator
• Packing Dimensions: 41 x 39 x 23 cm
• Gross Weight: 9 kg
• OEM Reference Numbers: 3598626, 2834737 CH, 2882050 CH, 3592855 CH, 3592856 CH, 3592857 CH, 3767513 CH, 3770611 CH, 3800951 CH

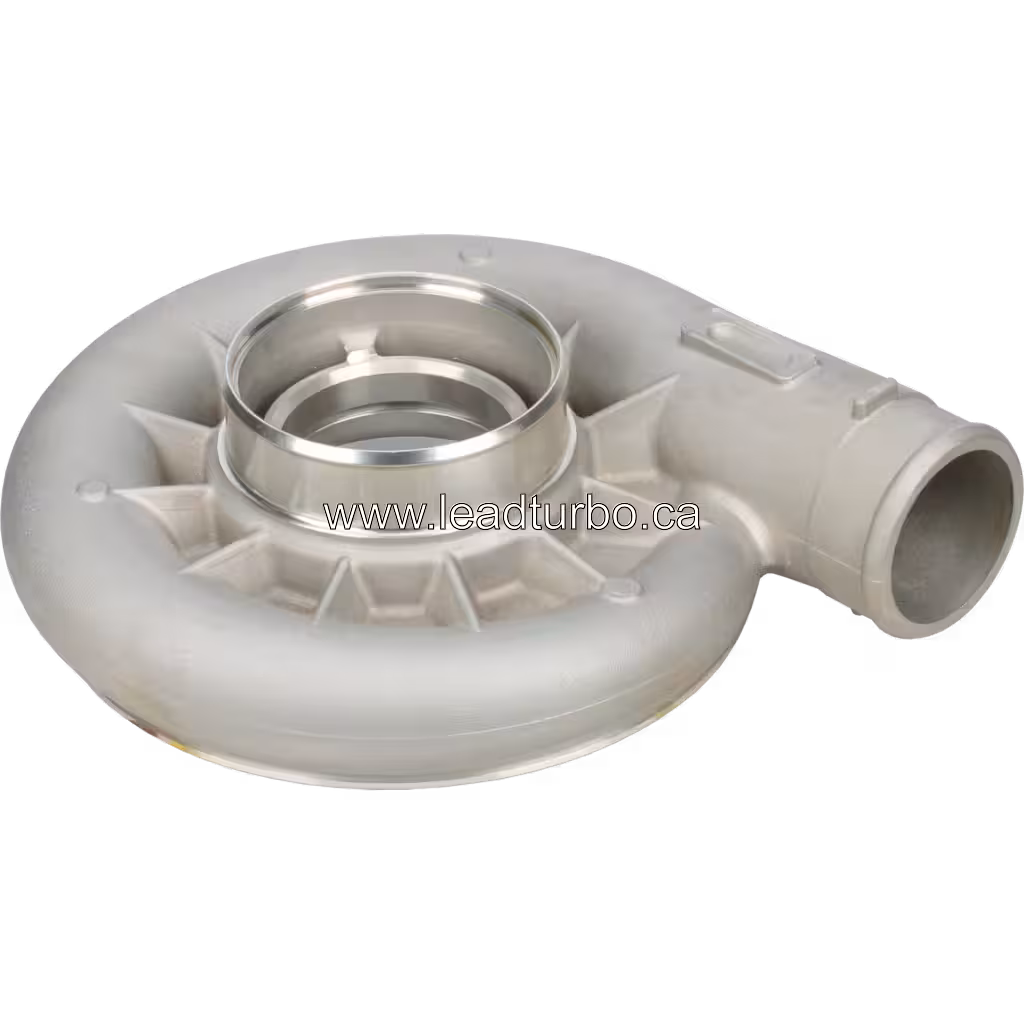

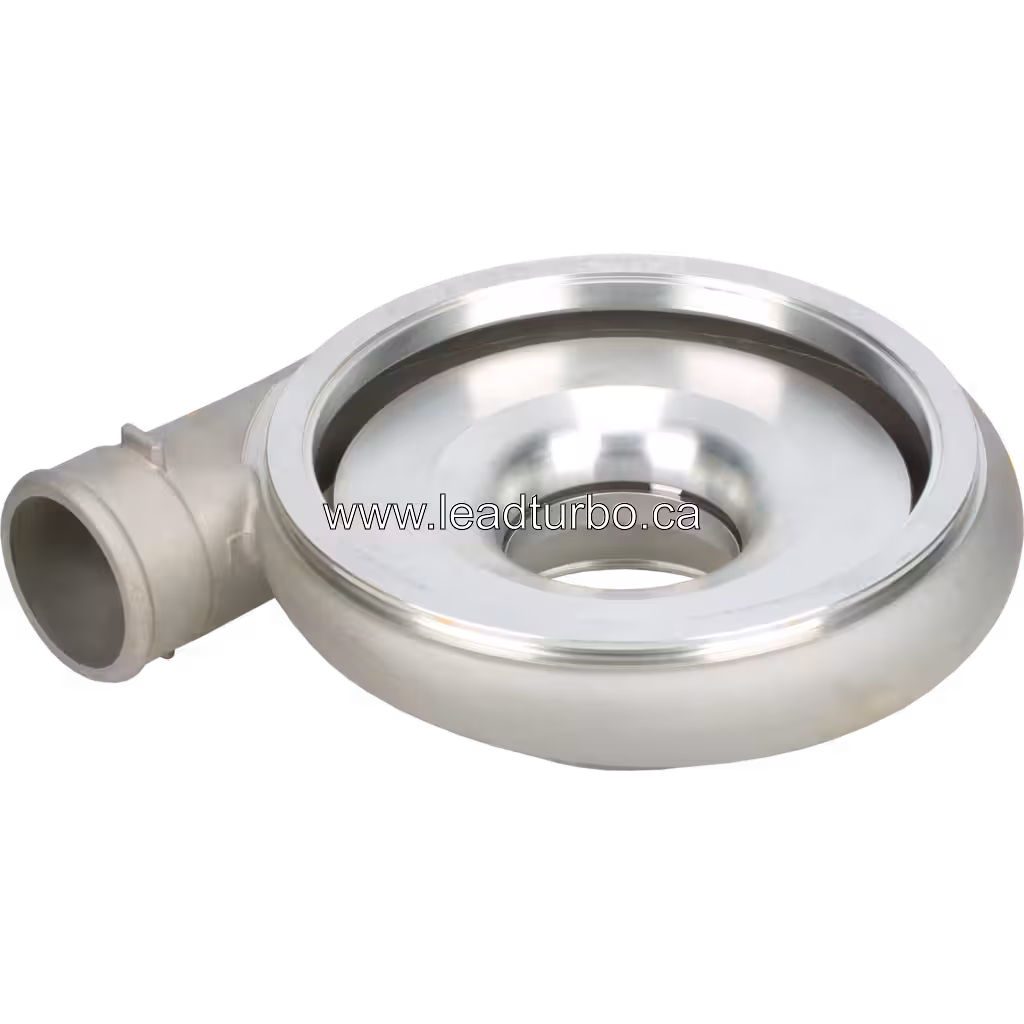

• Visual Features: Spiral volute casing, radial reinforcing ribs, polished central bearing bore, and circular inlet port with mounting tabs.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• LIEBHERR > R 9350 G6 > R 9350 G6 Mining excavator > CUMMINS QSK45 1500HP
• Samsung > Saibos FDS > Saipem FDS, IMO 9210749 > Saipem FDS, IMO 9210749 Field-development, pipelaying and heavy-lift vessel > CUMMINS CW8L-170

This 4045417 compressor housing is listed for reference applications including the Liebherr R 9350 G6 mining excavator equipped with a Cummins QSK45 1500HP engine. It is also associated with marine applications such as the Samsung Saibos FDS vessel powered by a Cummins CW8L-170 engine. These application paths serve as clues for fitment verification; buyers must confirm their specific engine serial number, turbo model HE800FG HX82, and production year before ordering. Cross-check the OEM reference numbers, such as 3598626 and 2834737 CH, against your existing part to ensure the correct replacement application. Verify inlet port dimensions and mounting tab positions against your current housing to confirm intercooler pipe connection compatibility.

Technical Notes

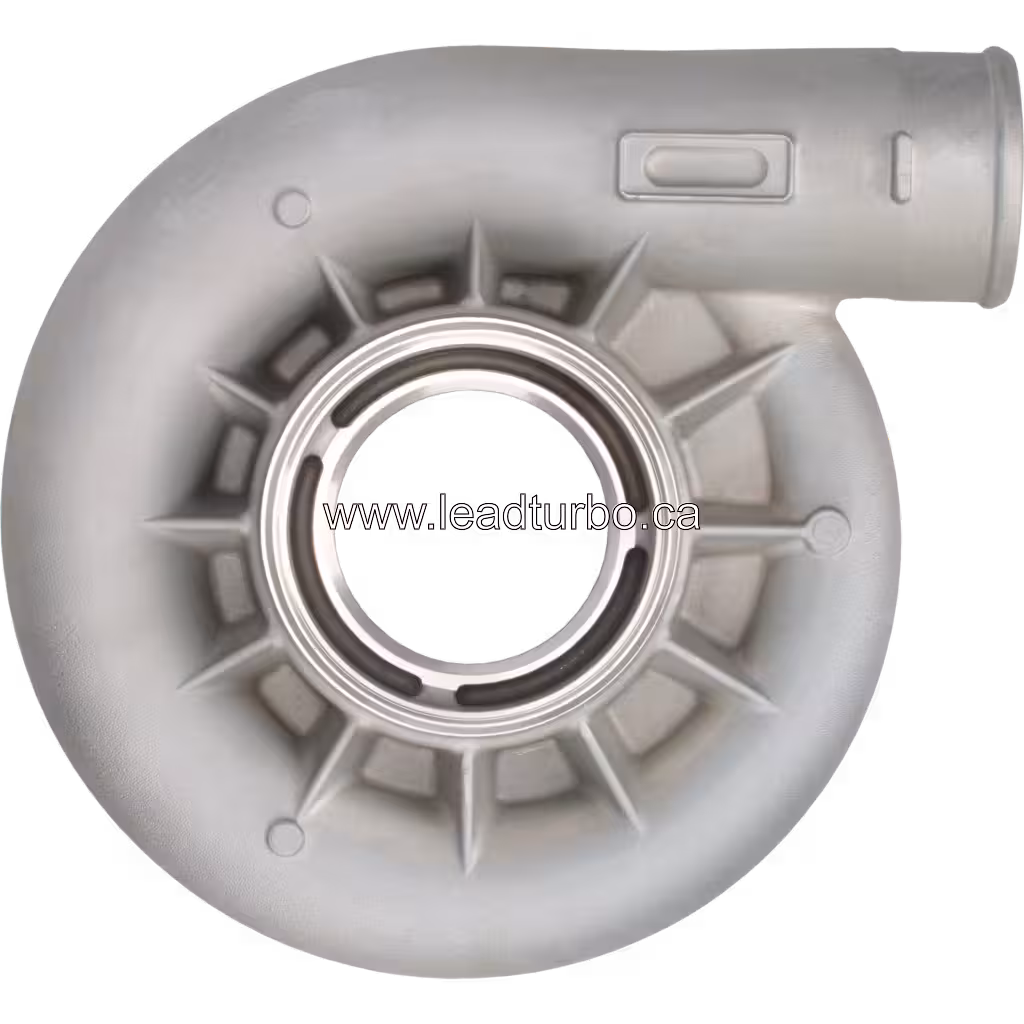

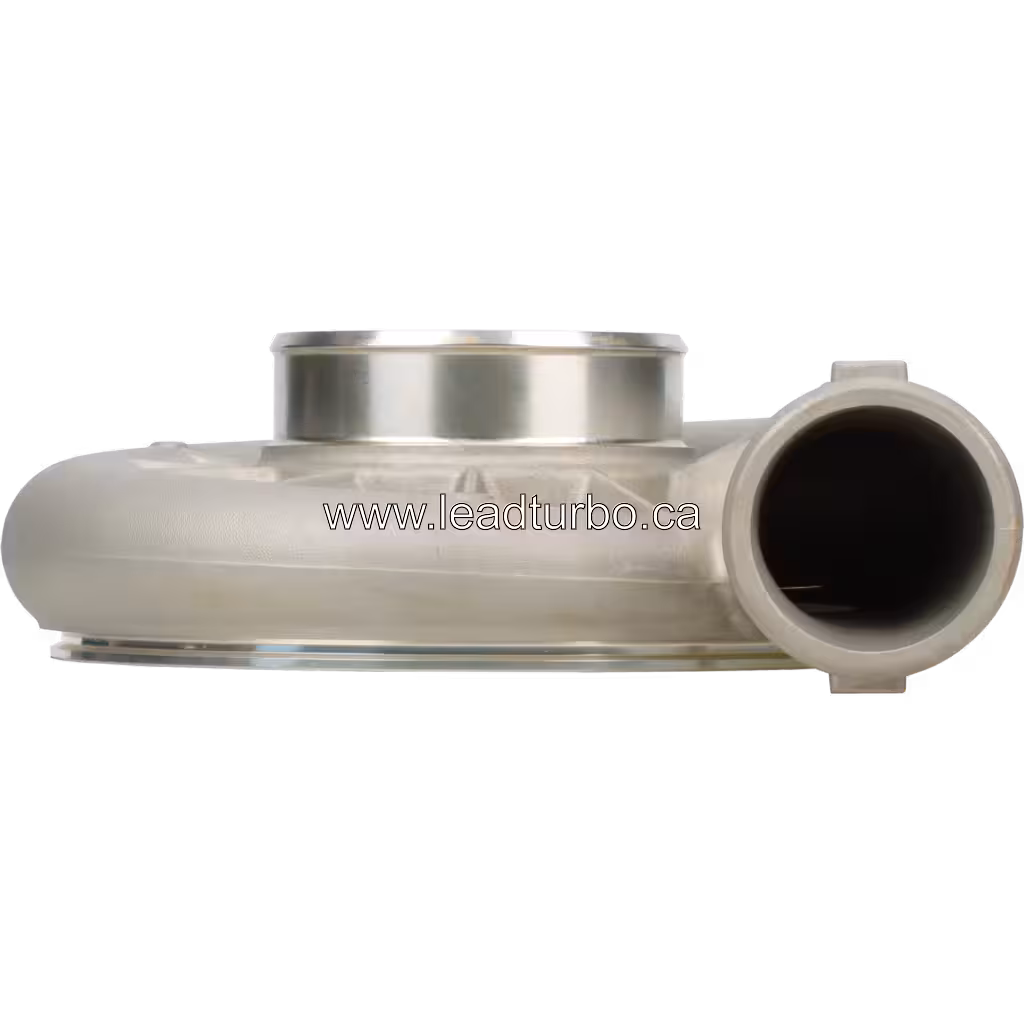

The HE800FG HX82 compressor housing features a spiral volute casing with radial reinforcing ribs and a polished central bearing bore. The large circular inlet port includes two small mounting tabs for intercooler pipe attachment. Buyers should verify the inlet port diameter and mounting tab positions against their existing housing to ensure correct intercooler pipe connection. Additionally, confirm the overall turbo assembly alignment to ensure the compressor housing flange matches the turbine housing and engine manifold spacing for the Cummins QSK45 application. Pre-shipment inspection is available to verify part number 4045417 and physical dimensions before dispatch.

B2B Supply

LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for the 4045417 compressor housing. Technical fitment support is available to help verify OEM reference numbers, such as 3598626 and 2834737 CH, against your specific Cummins QSK45 or CW8L-170 engine configuration. Confirm part number, turbo model HE800FG HX82, and application details before placing an order to ensure the correct replacement component is supplied.
