3802290 H1C Turbocharger Core for Cummins 4BTA 3.9
Aftermarket H1C core for FOR 3802290, applied to Cummins 4BTA 3.9 engines in Case 1840 skid steer loaders and Case IH tractors. Verify part number and OEM references before ordering.
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Show more cross references
3523322 FOR 3519287 FOR 3520030 FOR 3522900 FOR 3523743 FOR 3523744 FOR 3524121 FOR 3524122 FOR 3524125 FOR 3524126 FOR 3528743 FOR 3528744 FOR 3528753 FOR 3528754 FOR 3528755 FOR 3528756 FOR 3528757 FOR 3528758 FOR 3530717 FOR 3530718 FOR 3530719 FOR 3530720 FOR 3530721 FOR 3535381 FOR 3535422 FOR 3535423 FOR 3535424 FOR 3535425 FOR 3535426 FOR 3535427 FOR 3535432 FOR 3535433 FOR 3536065 FOR 3536066 FOR 3536677 FOR 3538840 FOR 3539310 FOR 3779713 FOR 3802294 FOR 3802295 FOR 3802296 FOR 3908460 FOR 3908591 FOR J906602 FOR J908293 FOR J914130 FOR J919129 FOR J919130 FOR J919133 FOR J919135 FOR J919139Subtotal: US$ 65.00
Send an InquiryThis aftermarket H1C turbocharger core (CHRA) is a replacement part for FOR 3802290, designed for Cummins 4BTA 3.9 engines in Case 1840 skid steer loaders and Case IH tractors. Verify your specific engine code and OEM reference numbers before ordering to ensure correct fitment.
Key Specifications
- Part Number: FOR 3802290
- Product Type: Turbocharger Core (CHRA)
- Turbo Model: H1C
- Application Clues: Cummins 4BTA 3.9, Case 1840 Skid Steer Loader, Case IH Maxxum 5120/5220
- Packing Dimensions: 15 x 15 x 15 cm
- Gross Weight: 4 kg
- Representative OEM References: 3523322, 3519287, 3520030, 3522900, 3523743, 3523744

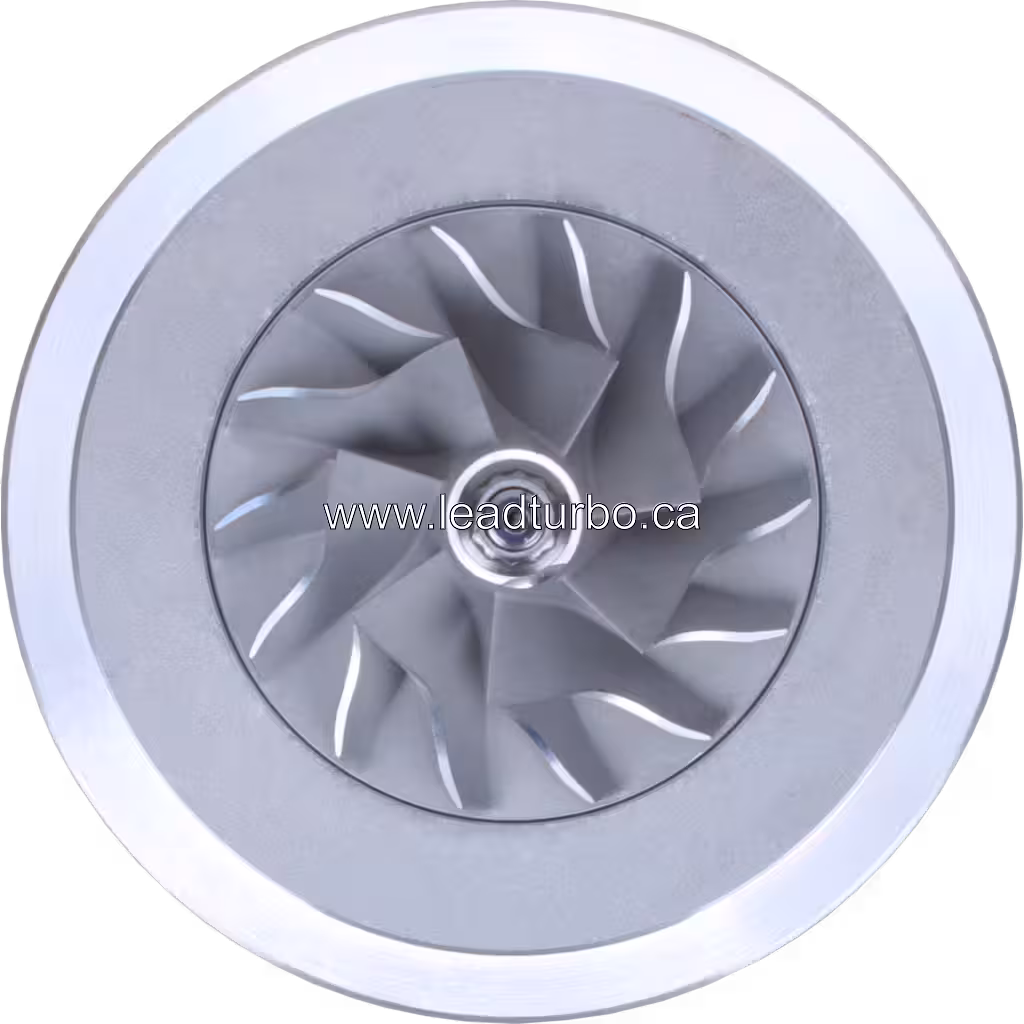

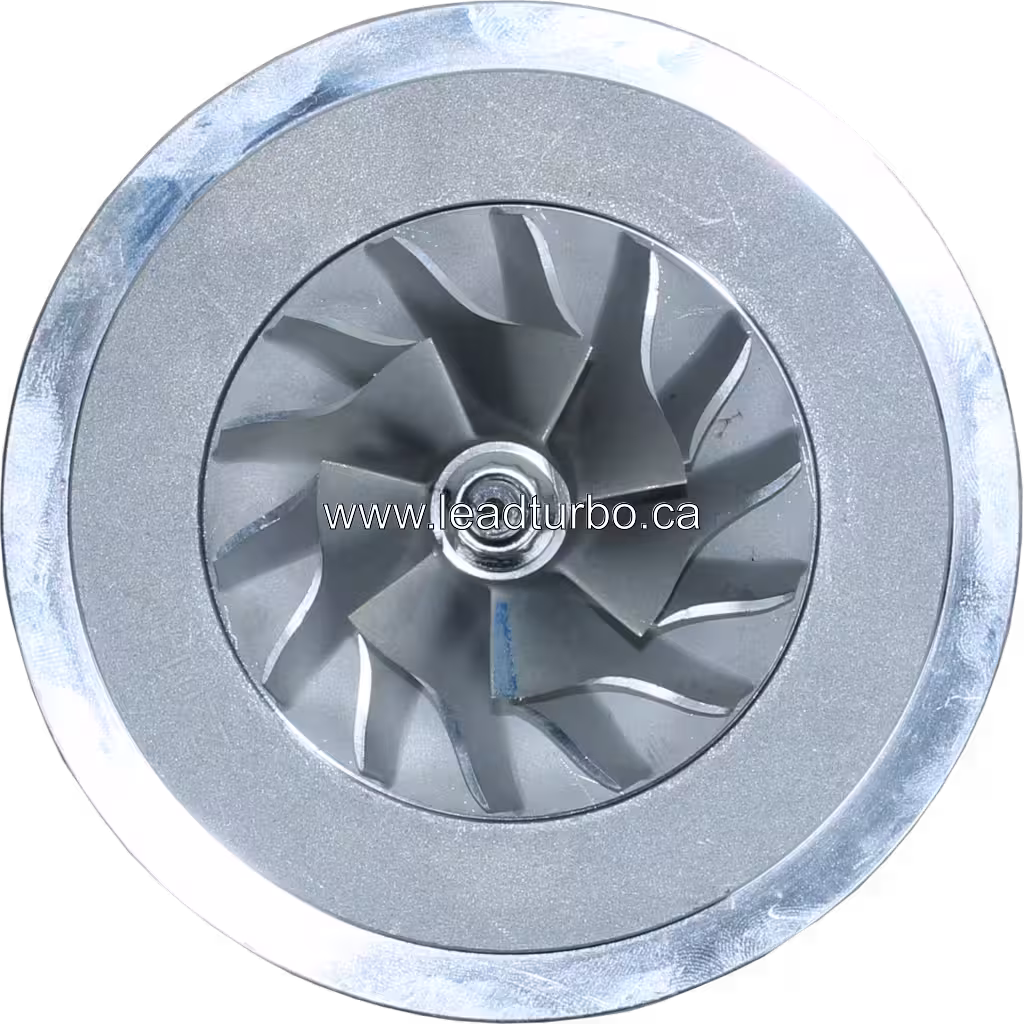

- Image Availability: High-resolution studio views of the core assembly, including compressor and turbine wheel details
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- Case > Case 1840 > Case Skid Steer Loader 1840 > Cummins 4BTA 3.9
- Case IH > Maxxum 5120, 5220 > Maxxum 5120, 5220 Agricultural tractor > CUMMINS 4BT3.9 > 4BTA3.9
- Case > 9010B > 9010B Crawler excavator > 4TA-390
- Case > Case 1840 > Case Skid Steer 1840 > Cummins 4BTA
- Case > CUMMINS 4BT
This H1C core is listed for Cummins 4BTA 3.9 engines in Case 1840 skid steer loaders, Case IH Maxxum 5120/5220 tractors, and Case 9010B excavators. These are reference applications for verification; confirm your specific engine code and production year before ordering. The core references 51 OEM numbers, including 3523322, 3519287, and 3520030. Use these OEM reference numbers to cross-check against your existing unit or service manual. Verify the mounting flange orientation and shaft configuration match your current core to ensure correct installation.
Technical Notes

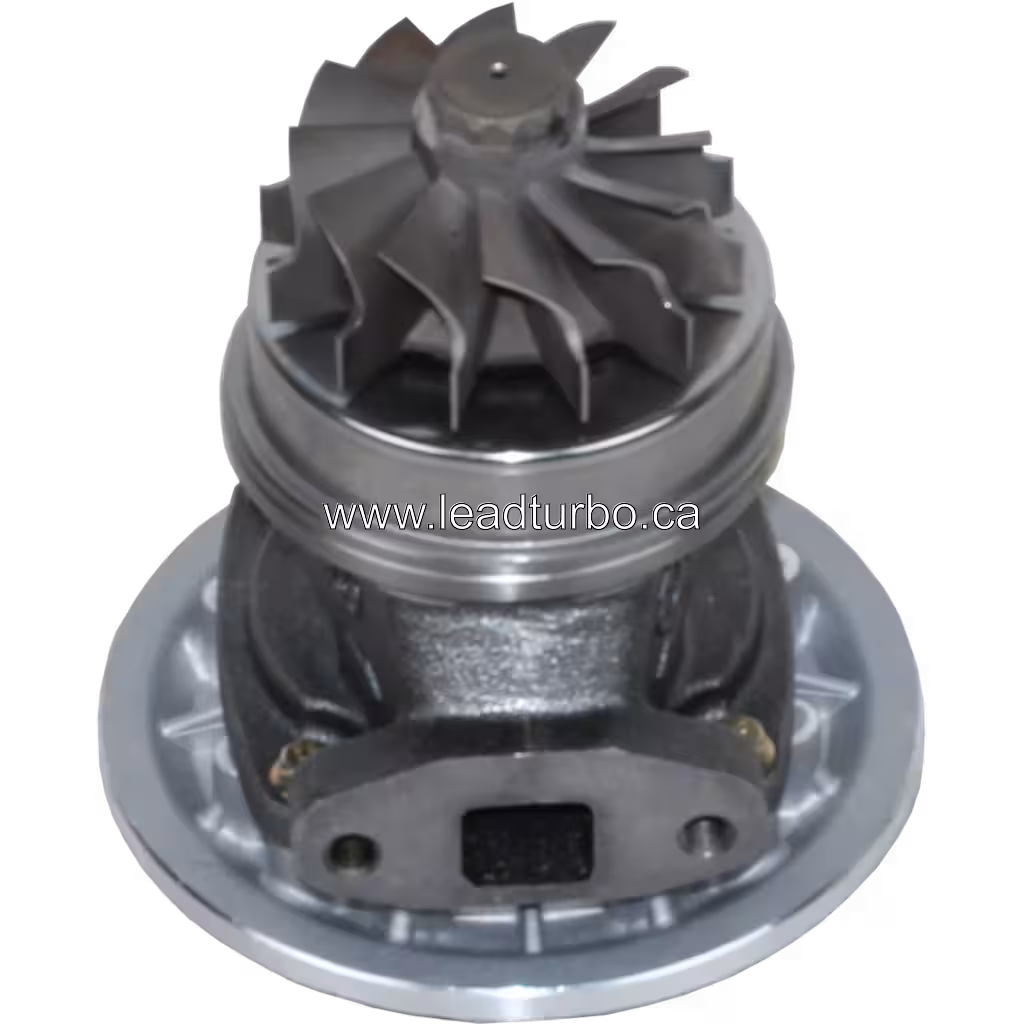

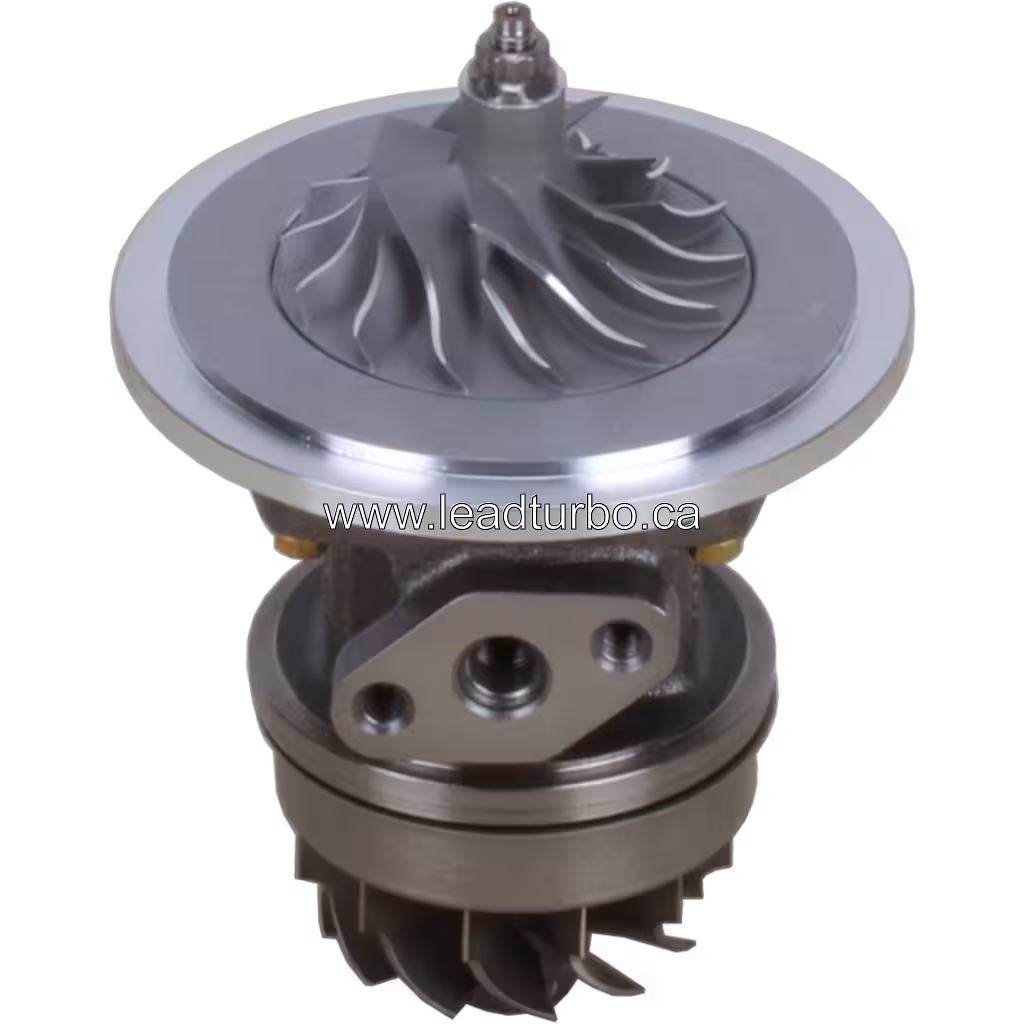

The H1C core features a central bearing housing connecting the compressor and turbine sections, with a mounting flange equipped with three threaded holes. Visible inspection points include the journal bearing design, turbine-end piston ring seal groove, and compressor-end oil slinger configuration. Buyers should verify these dimensions against their specific Cummins 4BTA 3.9 rebuild specifications. Confirm the shaft orientation and flange alignment match the existing unit before installation. This core is supplied with pre-shipment inspection and quality control checks to ensure stable operation in replacement applications.
B2B Supply
LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing for the FOR 3802290 H1C core. Technical fitment support is available to help verify engine codes, OEM reference numbers, and application details before ordering. Worldwide shipping is available for this replacement core. For bulk inquiries or fleet parts needs, contact our team with your specific vehicle and engine specifications to confirm availability and pricing.
Product FAQ
Case 1840 and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by Case 1840.
Compatibility Verify part number FOR 3802290, engine code (e.g., Cummins 4BTA 3.9, 4BT3.9), vehicle application (Case 1840, Case IH Maxxum 5120/5220), and OEM reference numbers (e.g., 3523322, 3519287) before ordering. Fitment is reference-based; confirm against your specific unit.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
