8-94394-457-2-2 Turbocharger Core for ISUZU P365TC

This aftermarket replacement core for FOR 8-94394-457-2-2 serves as a CHRA assembly for ISUZU P365TC applications. Verify the part number, engine code, and OEM reference VA860019-2 against your specific vehicle configuration before ordering to ensure correct fitment.

Key Specifications

• Part Number: FOR 8-94394-457-2-2
• Product Type: Turbocharger Core (CHRA)
• Gross Weight: 4 kg
• OEM Reference: VA860019-2
• Application Clue: ISUZU P365TC
• Image Availability: High-resolution studio photography available

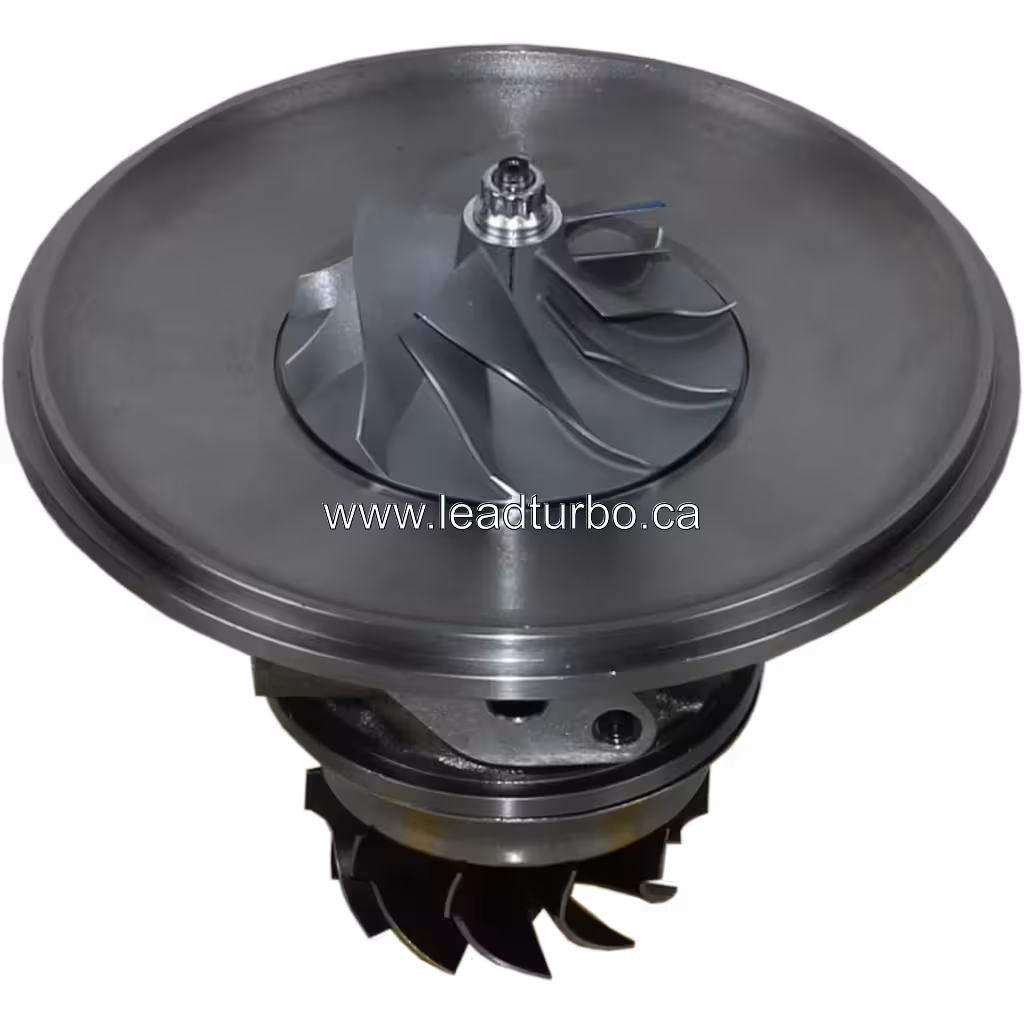

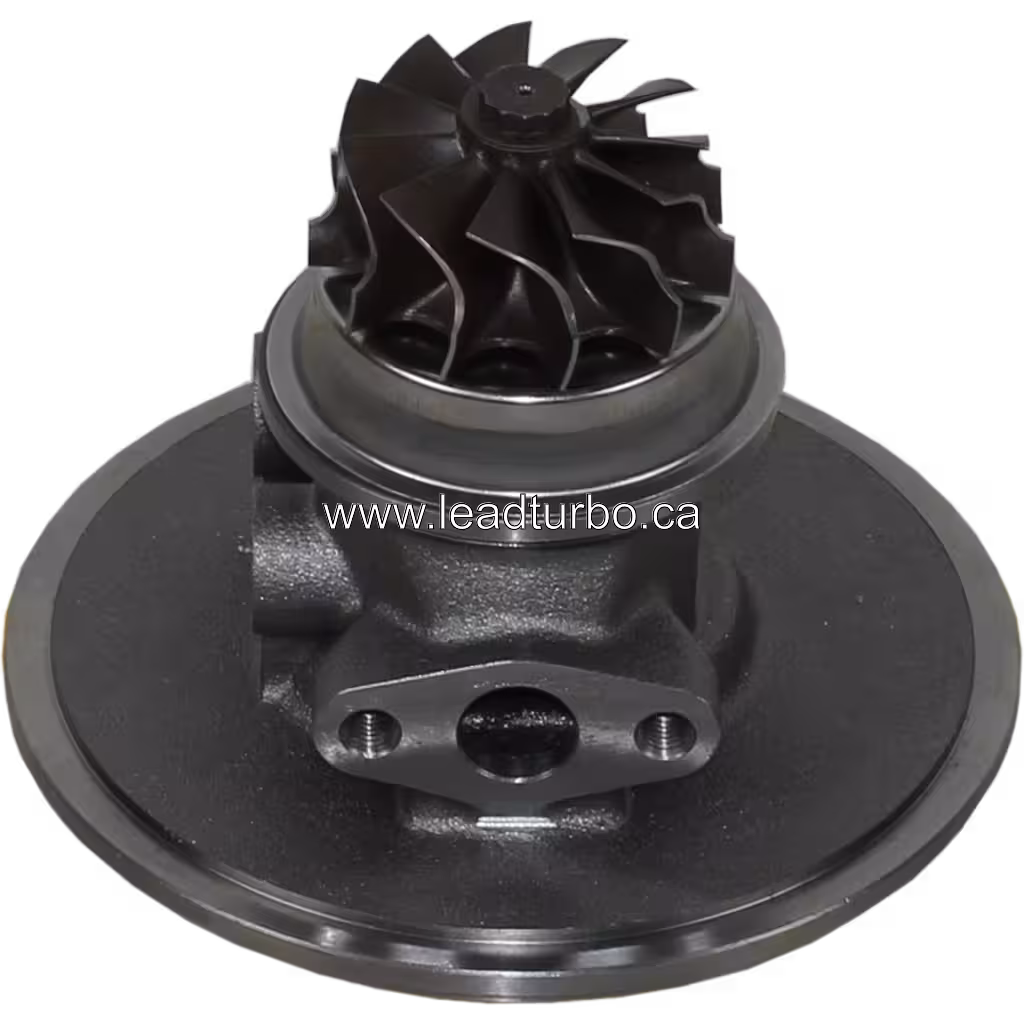

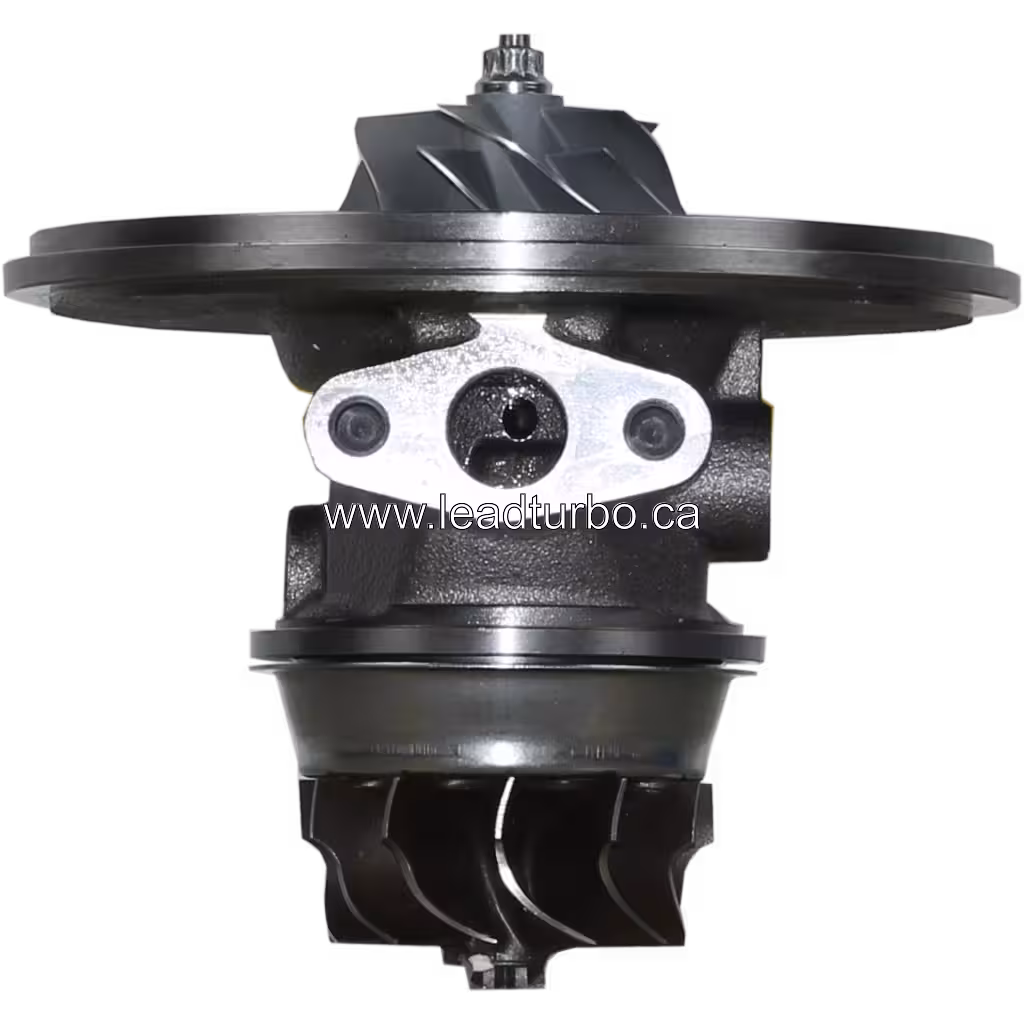

This core assembly features a central cast housing with a matte black finish, a large circular compressor wheel, and a multi-bladed turbine wheel. A silver-colored metal mounting bracket with two bolt holes and a central opening is visible, along with the central shaft and internal bearing structure between the compressor and turbine sections. These visible features help buyers confirm the physical configuration matches their rebuild requirements.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• ISUZU > P365TC

This core is listed for ISUZU P365TC applications. The supplied data associates part number FOR 8-94394-457-2-2 with OEM reference VA860019-2. Buyers should verify the part number, engine code, and production year against their specific vehicle configuration. Confirm that the mounting bracket and shaft dimensions match the existing assembly before ordering. This reference application serves as a verification clue rather than a confirmed fitment confirm.

Technical Notes

The core assembly includes a central cast housing, compressor wheel, turbine wheel, and mounting bracket. Visible internal bearing structures support the shaft between the compressor and turbine sections. Buyers should inspect the piston ring seal diameter on the turbine end and verify the oil slinger blade orientation on the compressor end against OEM reference VA860019-2. Confirm the heat shield material and condition match your rebuild specifications. Technical fitment support is available to assist with these verification steps before shipment.

B2B Supply

LeadTurbo supports B2B buyers including repair shops, rebuilders, distributors, and fleet parts buyers with volume pricing and worldwide shipping for this core assembly. Technical fitment support is available to assist with verifying part number FOR 8-94394-457-2-2, engine code, and OEM reference VA860019-2 before shipment. Contact our sales team for quotes based on order quantity and destination. Verify all application details against your specific vehicle configuration to ensure correct replacement selection.
