7C7596 S4DS001 Turbocharger Core for CAT 3306 Engines

This aftermarket 7C7596 S4DS001 turbocharger core is a replacement application for CAT 3306 engines, including CAT D6G, 14G, and D6D models. Verify part number, engine code, and OEM reference numbers such as 0R6343 or 178220 before ordering to ensure correct fitment.

Key Specifications

• Part Number: 7C7596
• Product Type: Turbocharger Core
• Turbo Model: S4DS001
• Application Clues: CAT 3306, CAT D6G, 14G, D6D
• Gross Weight: 10 kg
• Representative OEM References: 0R6343, 178220, 196535, 313198

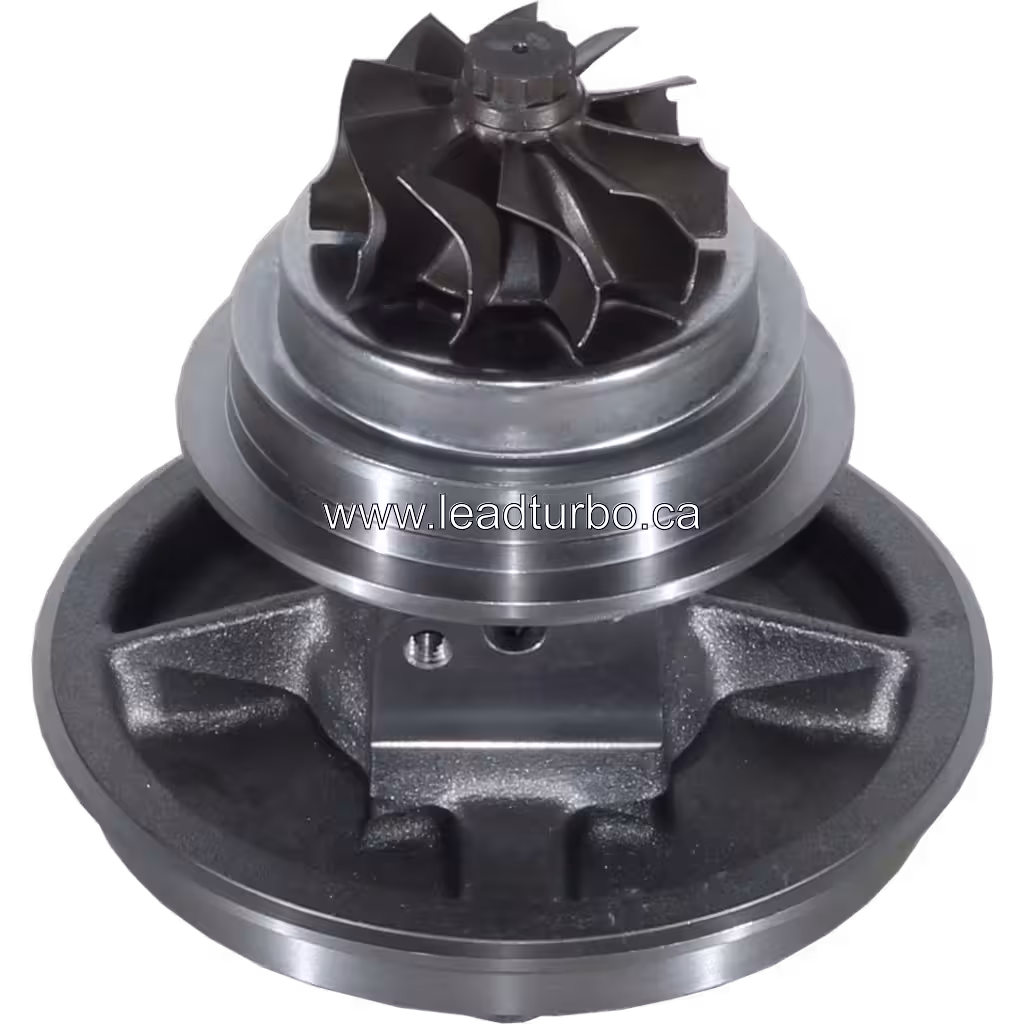

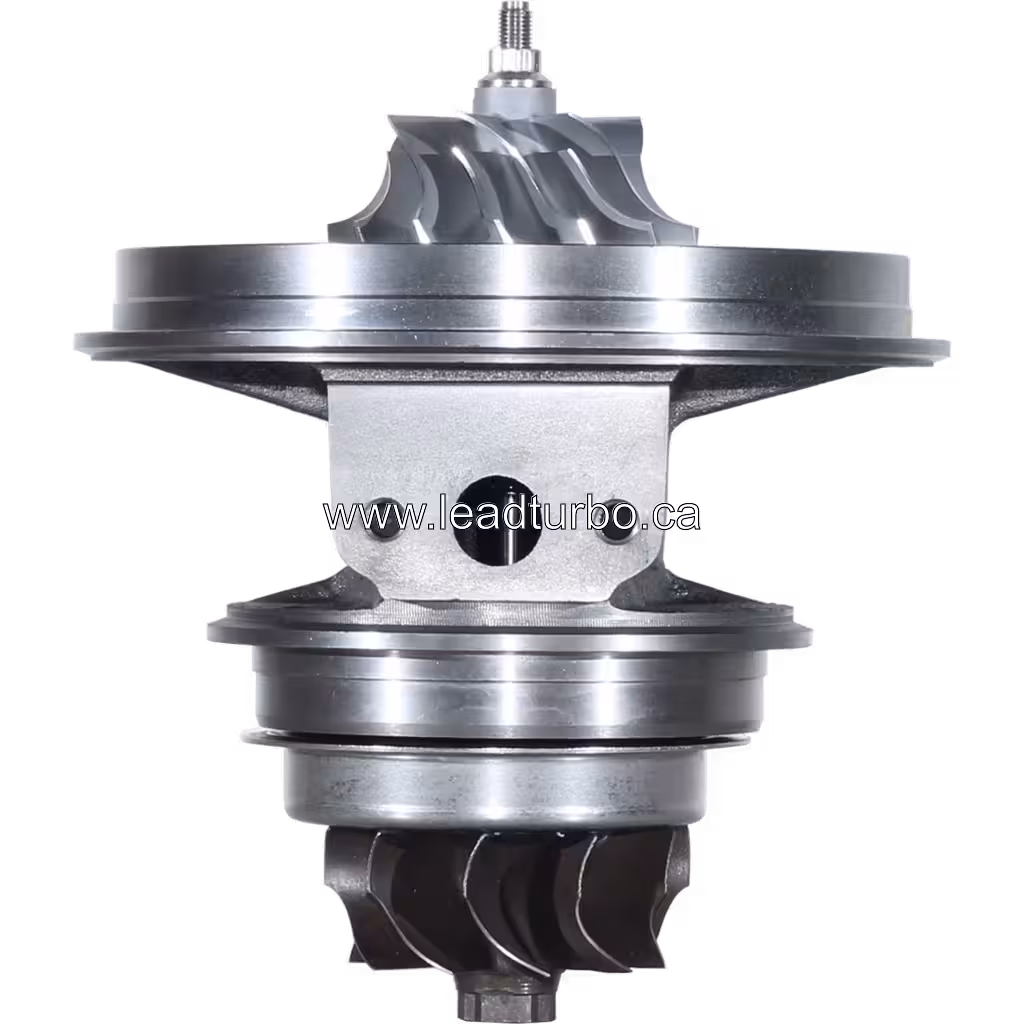

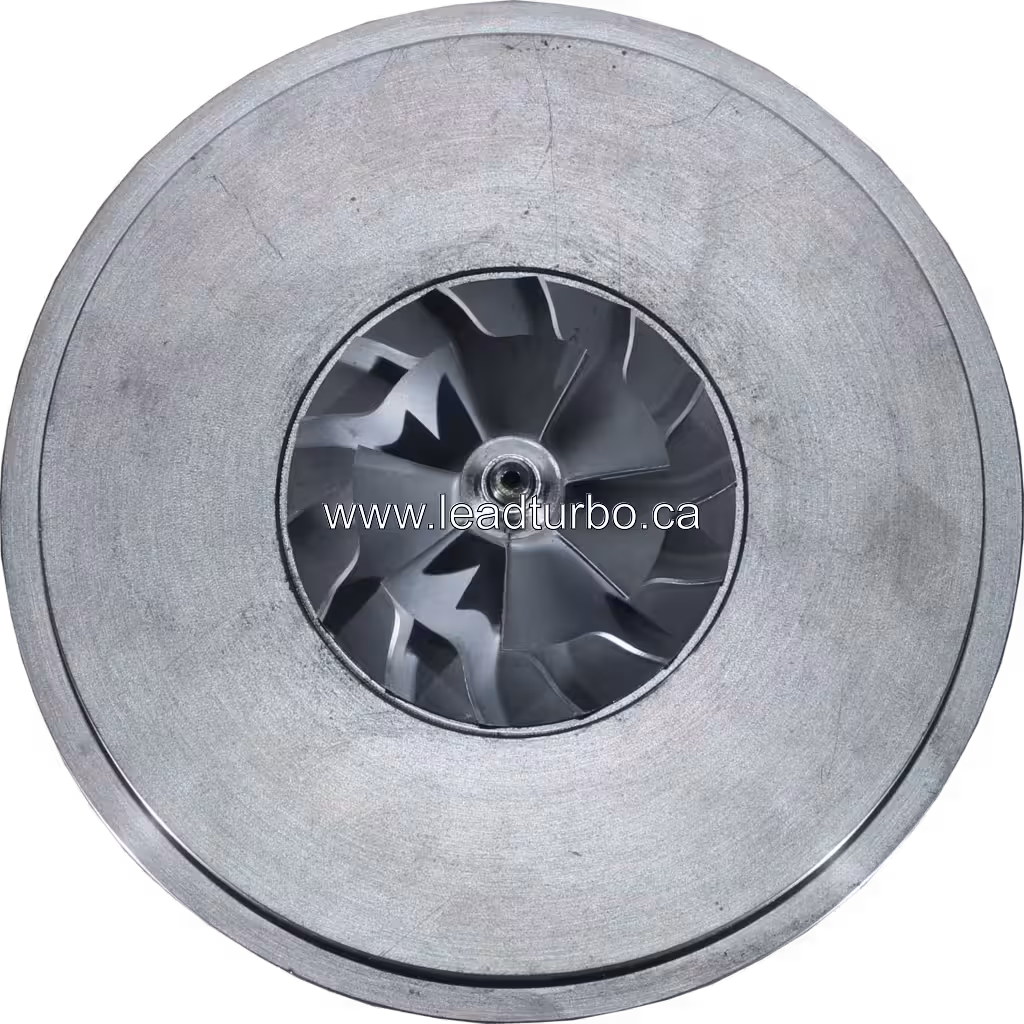

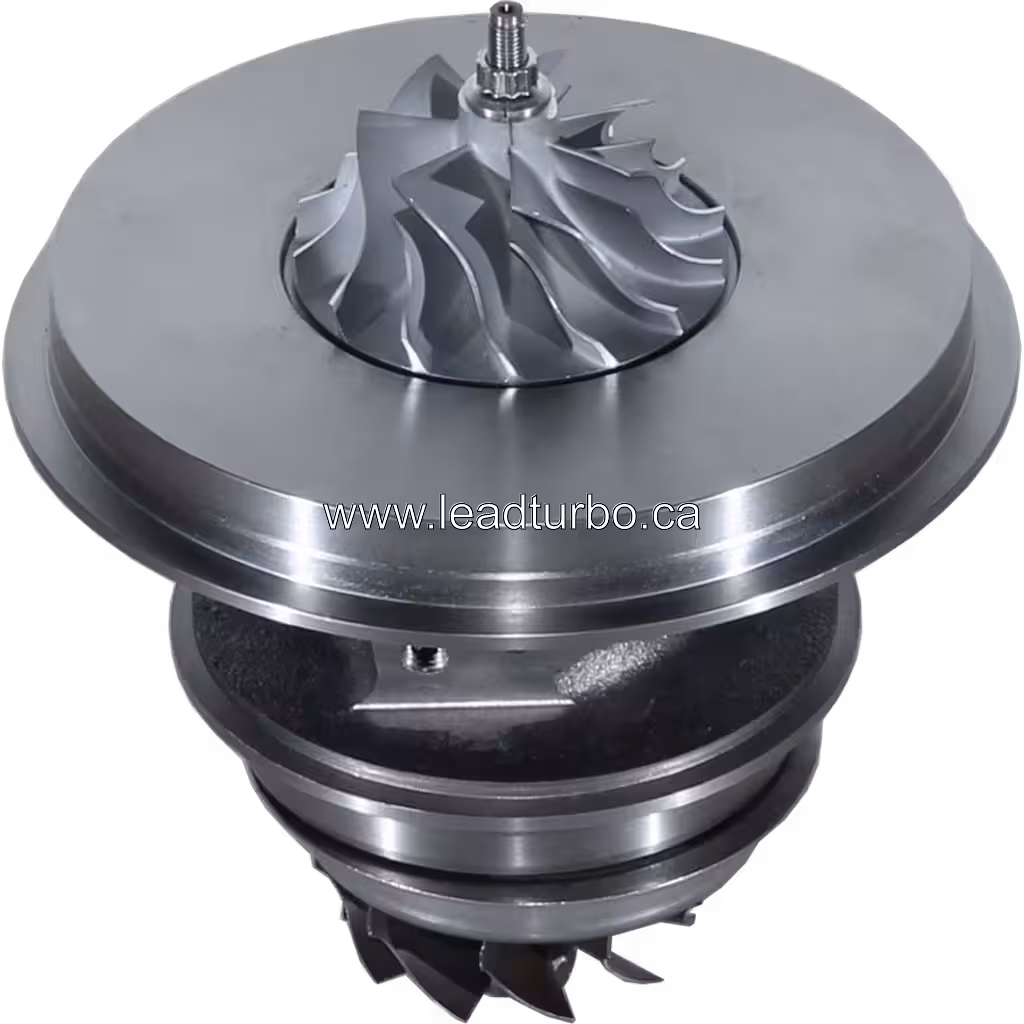

• Image Availability: Front, top, and bottom 45-degree views

This core assembly includes the central bearing housing, compressor wheel, and turbine wheel. Visible features include machined compressor housing flanges and cast turbine housing mounting details. Verify cooling passage orientation and shaft condition against your existing unit before installation.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• Caterpillar > CAT > CAT D6G 14G D6D > CAT 3306
• Caterpillar > CAT > CAT TRACK-TYPE TRACTOR D7H > 3306

This core is listed for CAT 3306 engine applications, including CAT D6G, 14G, and D6D models, as well as the CAT D7H track-type tractor. It is associated with 18 OEM reference numbers, including 0R6343, 178220, 196535, and 313198. Buyers should verify these references against their specific engine and vehicle application before ordering. Confirm that the housing orientation and mounting position match the existing unit to ensure correct installation.

Technical Notes

The S4DS001 core assembly features a central bearing housing with visible water and air cooling passages, which is typical for this class of turbocharger. Verify that the cooling port orientation matches your existing CAT 3306 engine layout to ensure proper fluid flow. Inspect the machined compressor housing flanges and cast turbine housing mounting details against the original unit. Confirm that the threaded shaft tip and wheel alignment are intact before installation. Use the provided front and 45-degree views to compare housing orientation and mounting position. This verification step helps prevent installation errors related to housing rotation or seal interface mismatch.

B2B Supply

LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing for the 7C7596 S4DS001 core. Worldwide shipping is available for this 10 kg assembly. Technical fitment support is provided to help verify the 18 associated OEM reference numbers, including 0R6343 and 178220, against your specific CAT 3306 engine application. Confirm part number, engine code, and housing orientation before placing an order to ensure the correct replacement application.
