6506215020 TH Turbine Housing KTR90-232E Komatsu PC400-7
Aftermarket turbine housing FOR 6506215020 TH for KTR90-232E turbochargers. Reference application for Komatsu PC400-7 and SAA6D125E-5 engines. Verify part number and OEM references before ordering.
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Show more cross references
6506214230 6506-21-4230 FOR 6506215010 TH FOR 6506-21-5010 TH FOR 6506215011 TH FOR 6506-21-5011 TH FOR 6506-21-5020 THSubtotal: US$ 95.00
Send an InquiryThis aftermarket turbine housing, part number FOR 6506215020 TH, is a replacement component for KTR90-232E turbochargers used in Komatsu SAA6D125E-5 engines. It serves as a reference application for Komatsu PC400-7 and HM300-2 equipment, with OEM reference numbers such as 6506214230 available for fitment verification before ordering.
Key Specifications
- Part Number: FOR 6506215020 TH
- Product Type: Turbine Housing
- Turbo Model: KTR90-232E
- Gross Weight: 10 kg
- Packing: N/A
- OEM Reference Numbers: 6506214230, 6506-21-4230, FOR 6506215010 TH, FOR 6506-21-5010 TH, FOR 6506215011 TH, FOR 6506-21-5011 TH, FOR 6506-21-5020 TH
- Image Availability: High-resolution studio images available

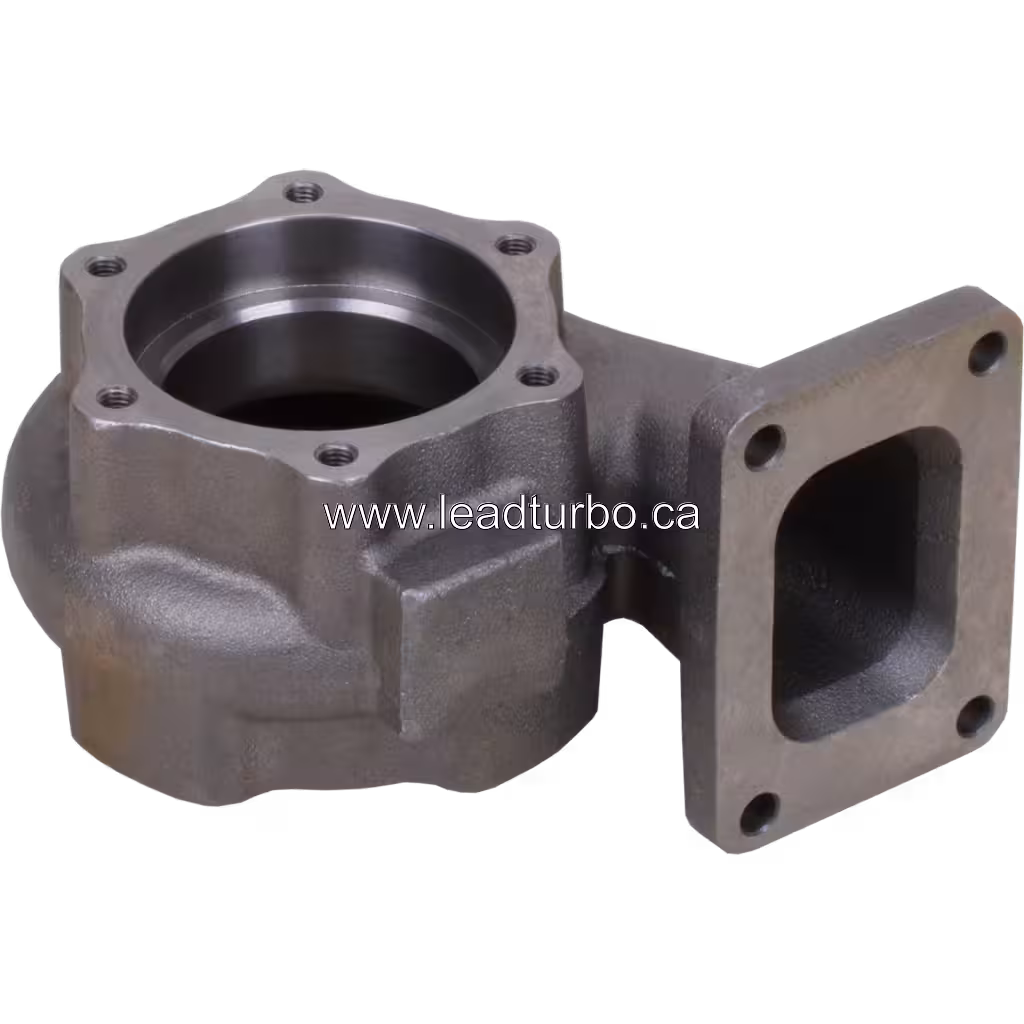

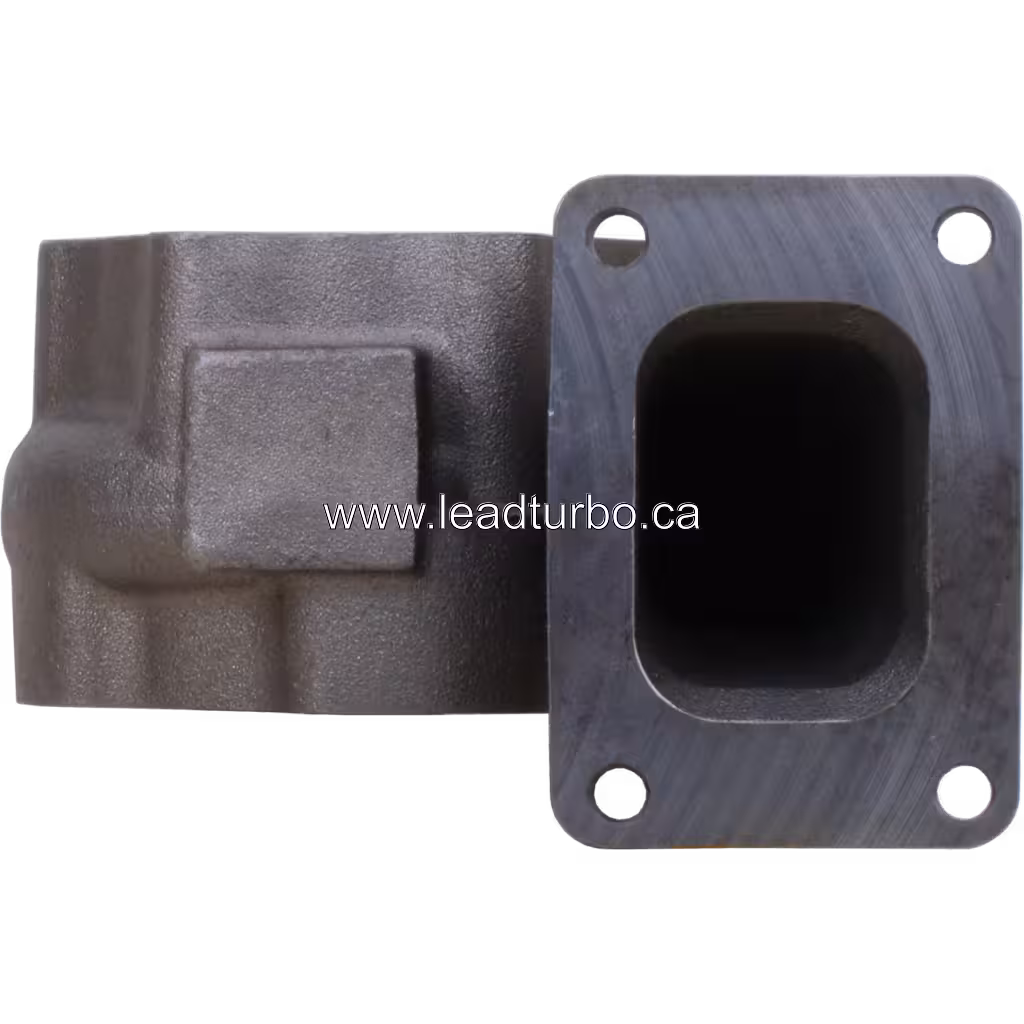

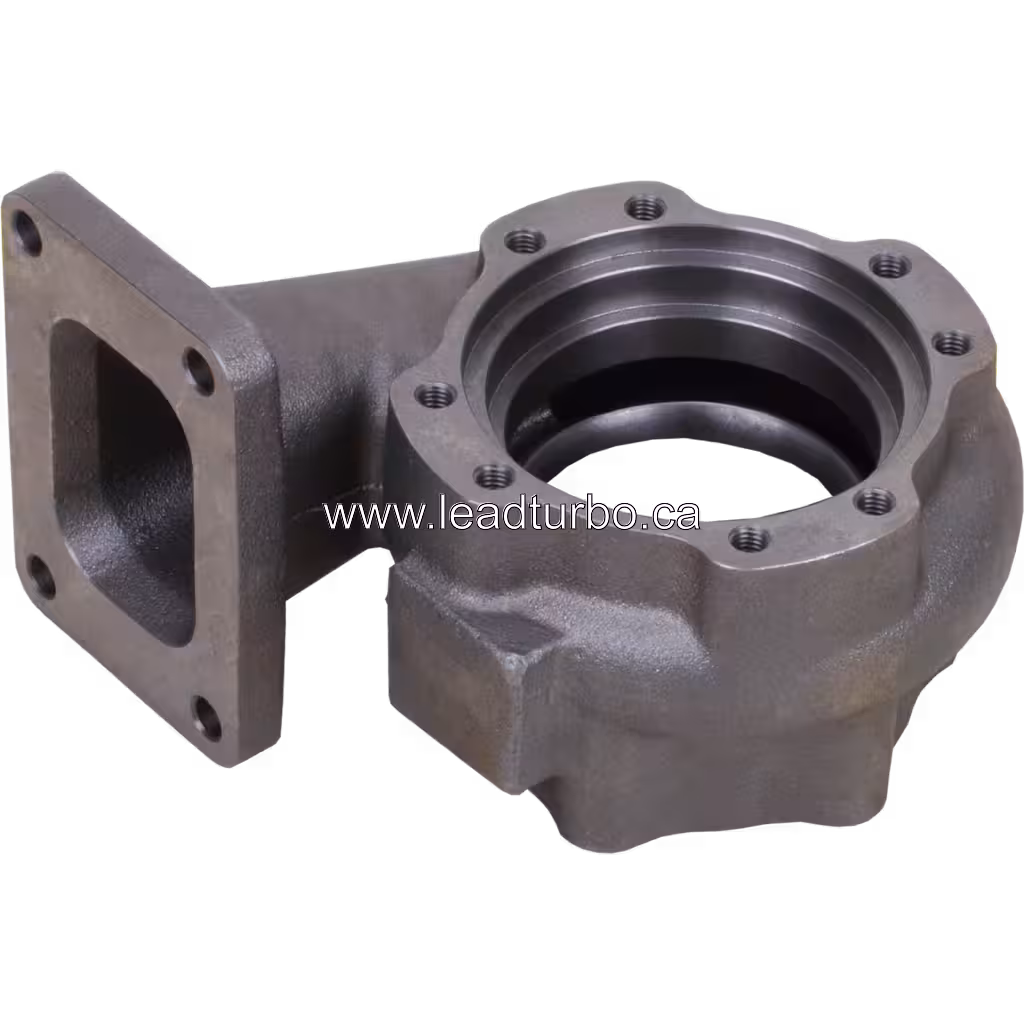

The housing features a cast metal construction with a rectangular inlet flange and a circular outlet flange. Machined surfaces on the flange faces and visible cooling channel structures are evident in the provided imagery. Buyers should verify these physical characteristics against their specific unit requirements.
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
This turbine housing is listed for Komatsu PC400-7 and HM300-2 equipment powered by SAA6D125E-5 engines. It serves as a reference application for KTR90-232E turbocharger systems. Buyers should verify the specific engine code and vehicle model against their unit before ordering. Cross-check the following OEM reference numbers to confirm fitment:
- KOMATSU > KOMATSU PC400-7 > KOMATSU SAA6D125E-5
- KOMATSU > KOMATSU DUMP TRUCK HM300-2 > KOMATSU SAA6D125E-5B
- 6506214230
- 6506-21-4230
- FOR 6506215010 TH
- FOR 6506-21-5010 TH
- FOR 6506215011 TH
- FOR 6506-21-5011 TH
- FOR 6506-21-5020 TH
Confirm that the flange bolt patterns and inlet dimensions match your existing component.
Technical Notes

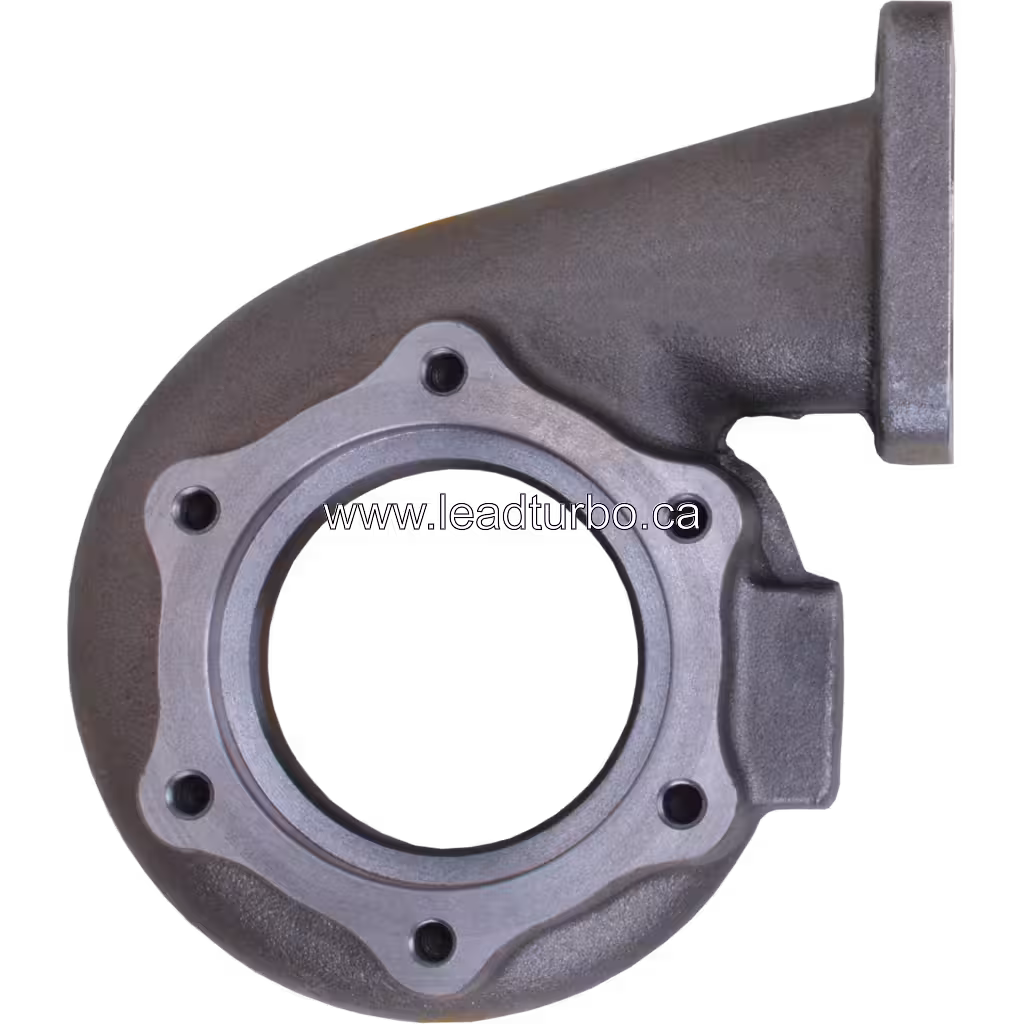

The KTR90-232E turbine housing is a cast metal component designed for SAA6D125E-5 engine applications. Visible features include a rectangular inlet flange with four bolt holes and a circular outlet flange with six threaded holes. Buyers should verify the cooling channel structure and machined flange surfaces against their existing unit. Confirm the bypass port diameter and anti-surge slot configuration, if applicable, to ensure proper airflow management. Cross-check these physical dimensions with the OEM reference numbers 6506214230 and 6506-21-5020 TH before finalizing your order.
B2B Supply
LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing for FOR 6506215020 TH turbine housings. Worldwide shipping is available for this 10 kg component. Our technical team provides fitment support to help verify OEM reference numbers such as 6506214230 against your specific Komatsu SAA6D125E-5 application. Contact us for tailored quotes and pre-shipment inspection details to ensure the correct replacement part is supplied for your fleet or rebuild project.
Product FAQ
KOMATSU and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by KOMATSU.
Compatibility Verify part number, engine code (SAA6D125E-5), vehicle application (Komatsu PC400-7 or HM300-2), and OEM reference numbers (e.g., 6506214230) before ordering. This is an aftermarket replacement application; confirm fitment with your specific unit.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
