49477-01214 TD04- Turbocharger Core for Jaguar 224DT(DW12C)
Aftermarket replacement core for FOR 49477-01214 TD04- turbochargers. Reference application: Jaguar 224DT(DW12C). Verify part number and engine code before ordering.
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Subtotal: US$ 90.00
Send an InquiryThis aftermarket replacement core for FOR 49477-01214 TD04- turbochargers serves as a reference application for Jaguar 224DT(DW12C) engines. Verify the specific part number, engine code, and vehicle details before ordering to ensure accurate fitment for your rebuild or replacement needs.
Key Specifications
- Part Number: FOR 49477-01214
- Product Type: Turbocharger Core (CHRA)
- Turbo Model: TD04-
- Reference Application: Jaguar 224DT(DW12C)
- Packing Dimensions: 18 x 18 x 21 cm
- Gross Weight: 2.6 kg
- OEM Reference Numbers: Not listed in current data; verify against your specific service records
- Image Availability: High-resolution studio shots available for visual inspection of turbine and compressor wheels
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- Jaguar > 224DT(DW12C)
This core is listed for the Jaguar 224DT(DW12C) engine as a reference application. The TD04- turbo model designation helps narrow the search, but buyers must verify the specific part number FOR 49477-01214 against their vehicle’s service records. Since no OEM reference numbers are provided in the current data, cross-checking the engine code and turbo configuration is essential to confirm fitment. Treat the application path as a starting point for verification rather than a confirmed match. For fleet or distributor inquiries, confirm that all units in the batch align with the 224DT(DW12C) specification before finalizing orders. This cautious approach ensures accurate replacement application and prevents misfit issues during installation.
Technical Notes

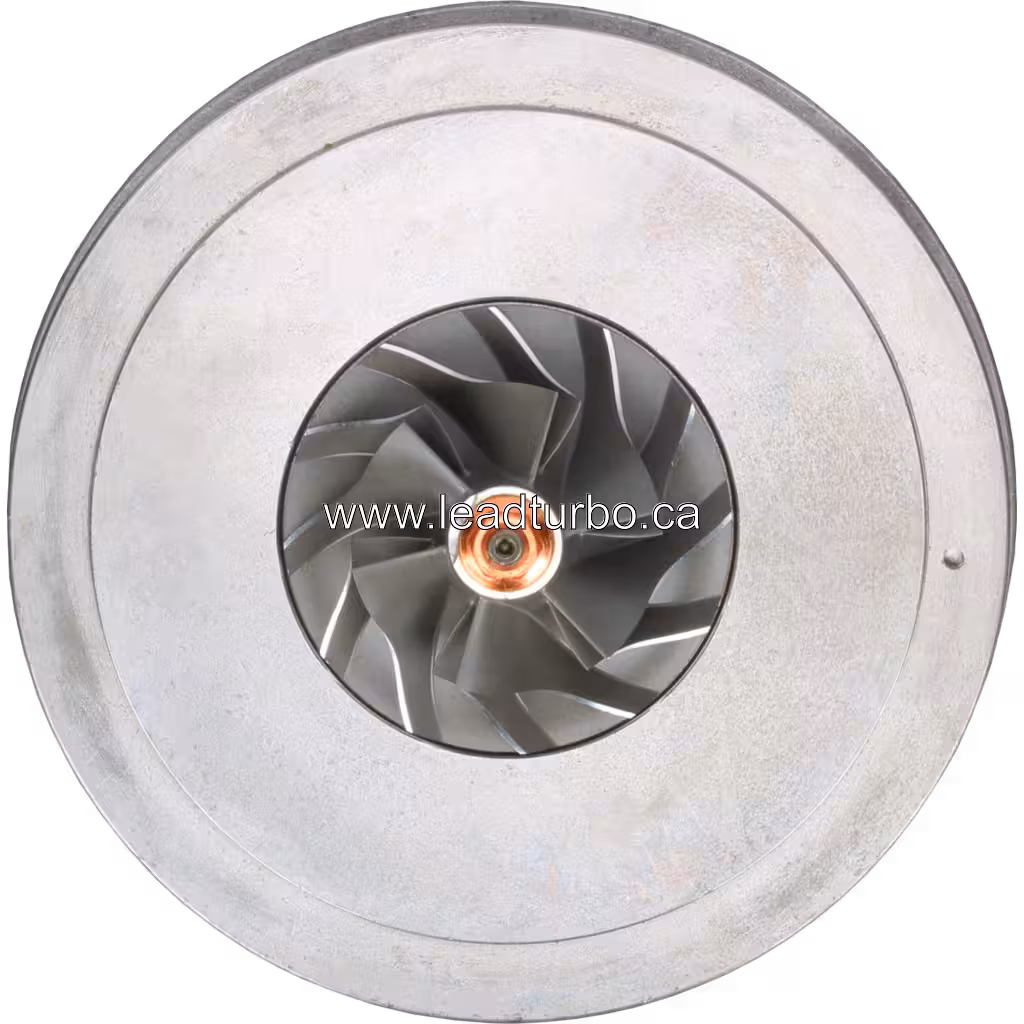

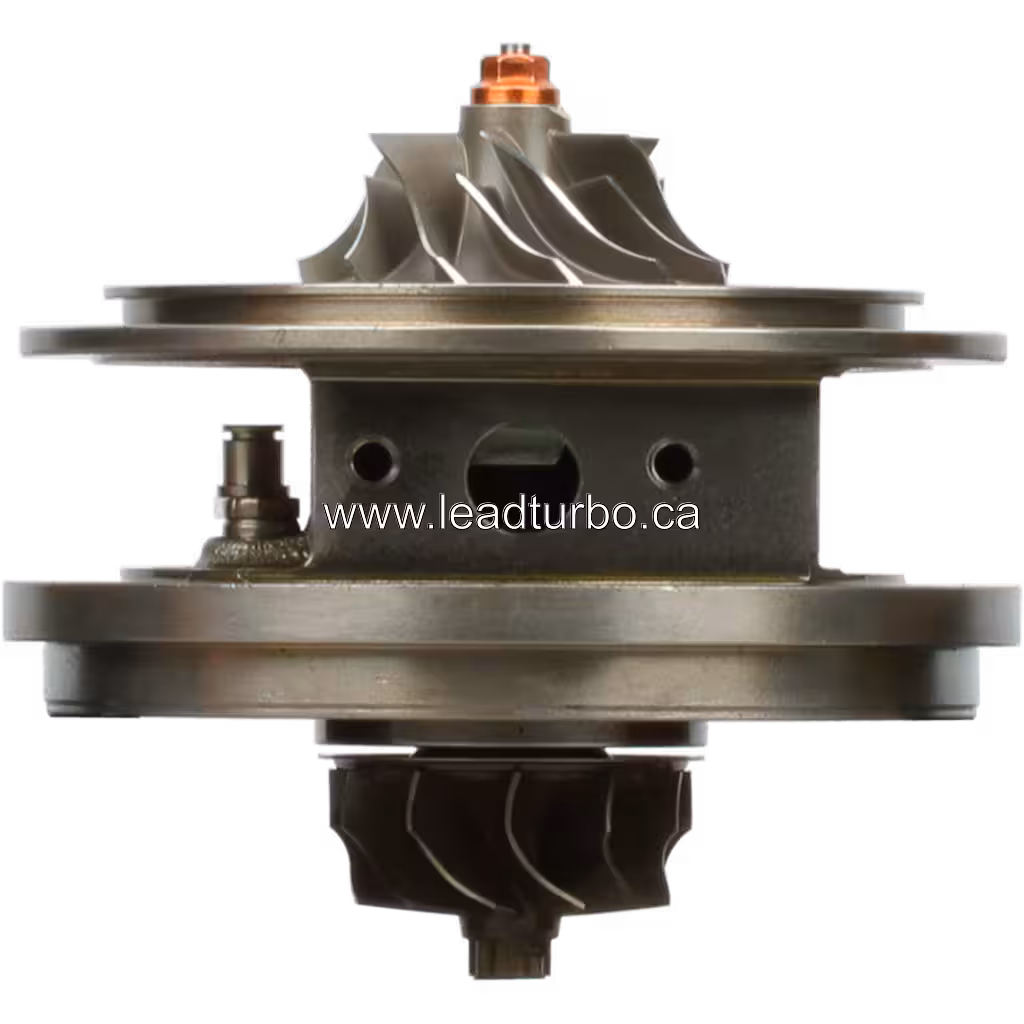

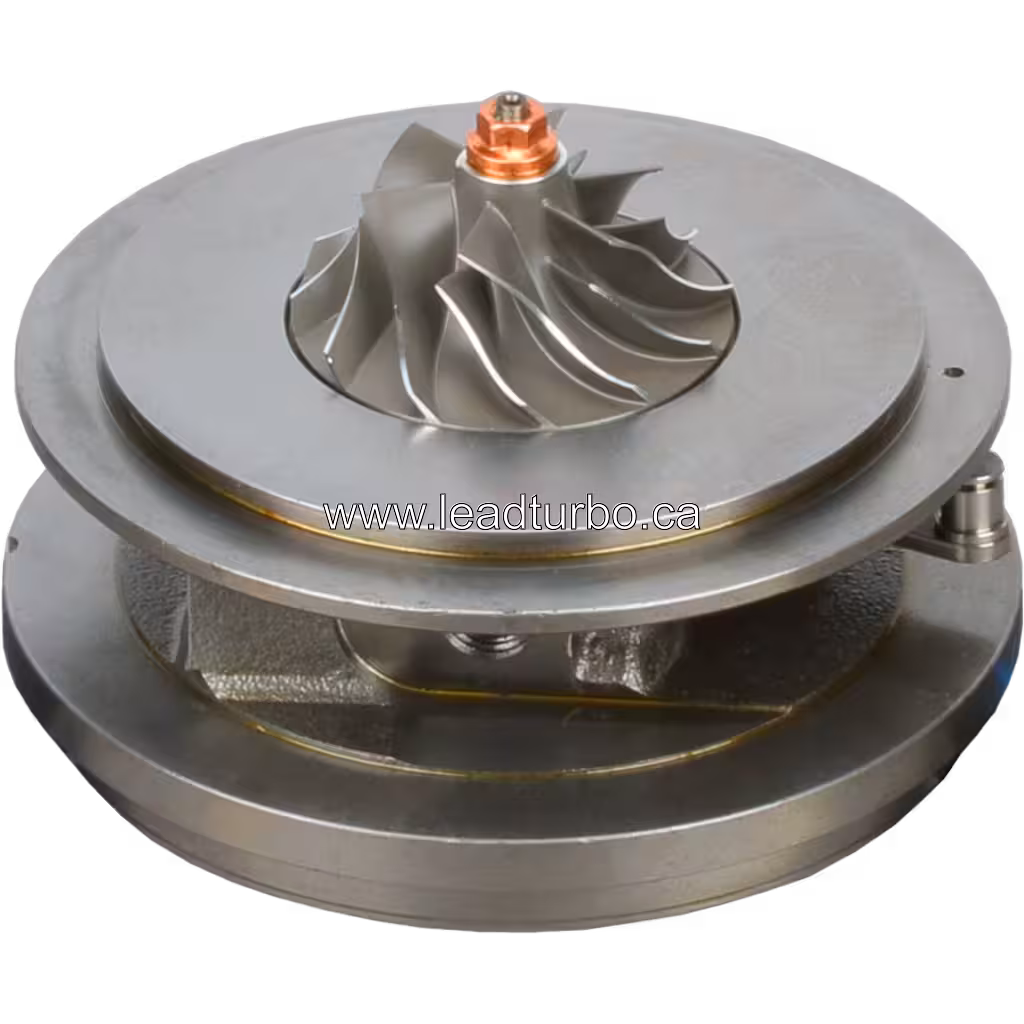

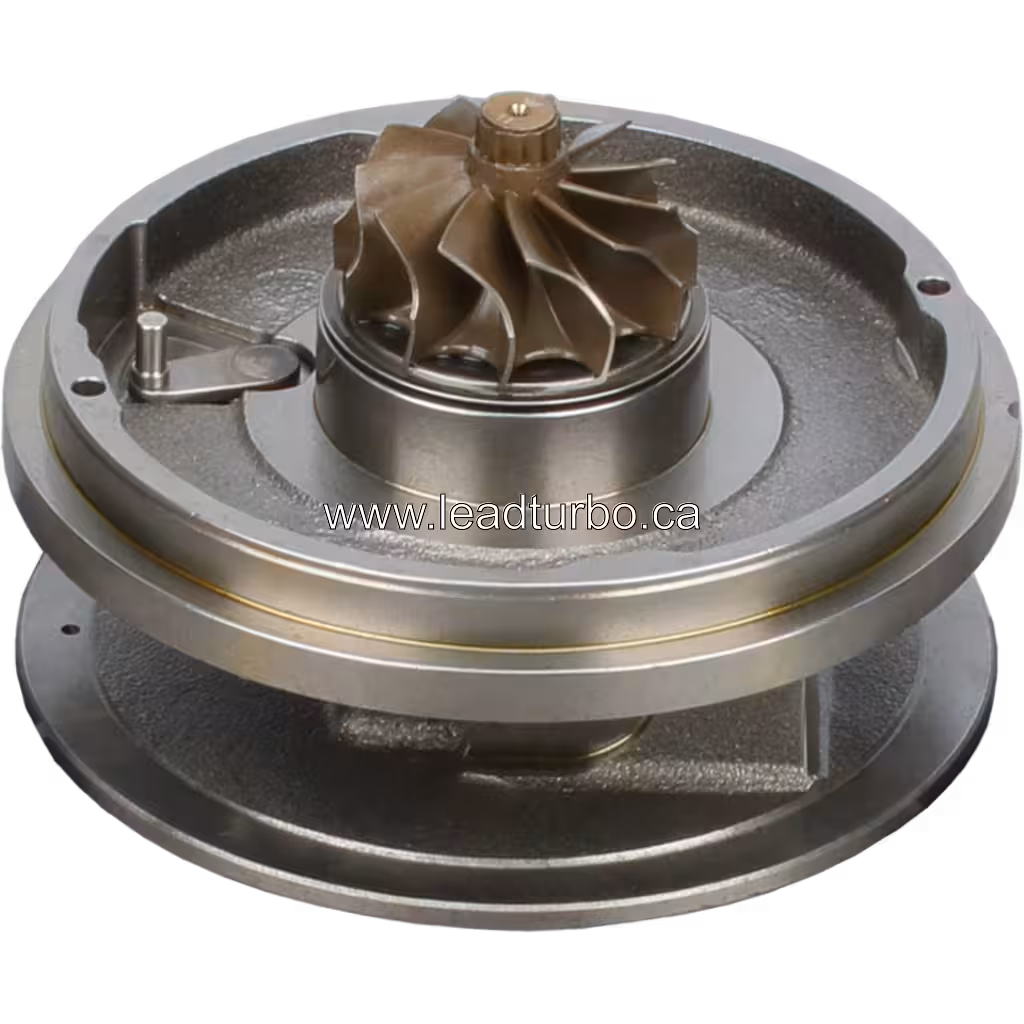

The TD04- core assembly features a cast metal center housing with visible mounting holes and V-band style flange rings on both turbine and compressor sides. High-resolution studio images show the turbine wheel with curved blades and a copper-colored bearing component, alongside the compressor wheel and actuator mounting bracket. These visual details support pre-shipment inspection and help buyers verify physical condition before installation. Since material grade and exact wheel dimensions are not confirmed in the current data, treat these observations as appearance cues only. Verify the specific part number FOR 49477-01214 against your service records to ensure the core matches your rebuild or replacement requirements.
B2B Supply
LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for this FOR 49477-01214 TD04- core. Distributors and fleet parts buyers can request technical fitment support to verify the Jaguar 224DT(DW12C) reference application against their specific vehicle records. Use the packing dimensions (18 x 18 x 21 cm) and gross weight (2.6 kg) to plan logistics and shipping estimates. For multi-unit orders, confirm that all vehicles in the batch align with the TD04- turbo configuration before finalizing the purchase.
Product FAQ
OTHER and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by OTHER.
Compatibility Verify part number FOR 49477-01214, engine code 224DT(DW12C), vehicle application, and turbo configuration before ordering. This is a reference application; confirm fitment with your specific vehicle details.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
