49189-00501 TD04H-15G Turbocharger Core for Isuzu 4BD1T 4BG1T
Aftermarket replacement core for FOR 49189-00501 TD04H-15G. Reference application includes Isuzu 4BD1T/4BG1T engines. Verify part number, engine code, and OEM reference 49189-08100 before ordering.
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Subtotal: US$ 95.00
Send an InquiryThis aftermarket replacement core for FOR 49189-00501 is designed for the TD04H-15G turbocharger, serving Isuzu 4BD1T and 4BG1T engines found in Hitachi and Kobelco construction equipment. Verify your specific engine code and OEM reference 49189-08100 before ordering to ensure correct fitment for your application.
Key Specifications
- Part Number: FOR 49189-00501
- Product Type: Turbocharger Core (CHRA)
- Turbo Model: TD04H-15G
- Gross Weight: 2 kg
- OEM Reference: 49189-08100
- Image Availability: High-resolution studio photos provided

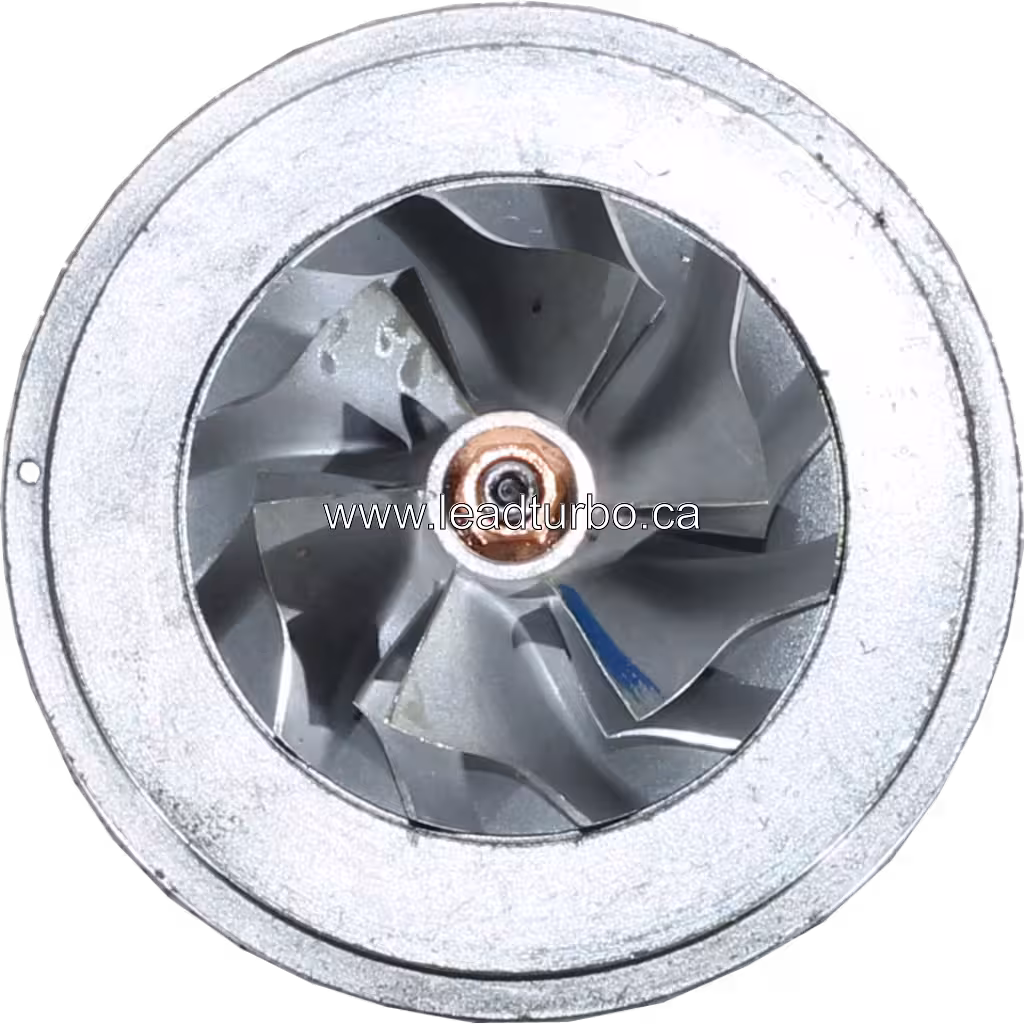

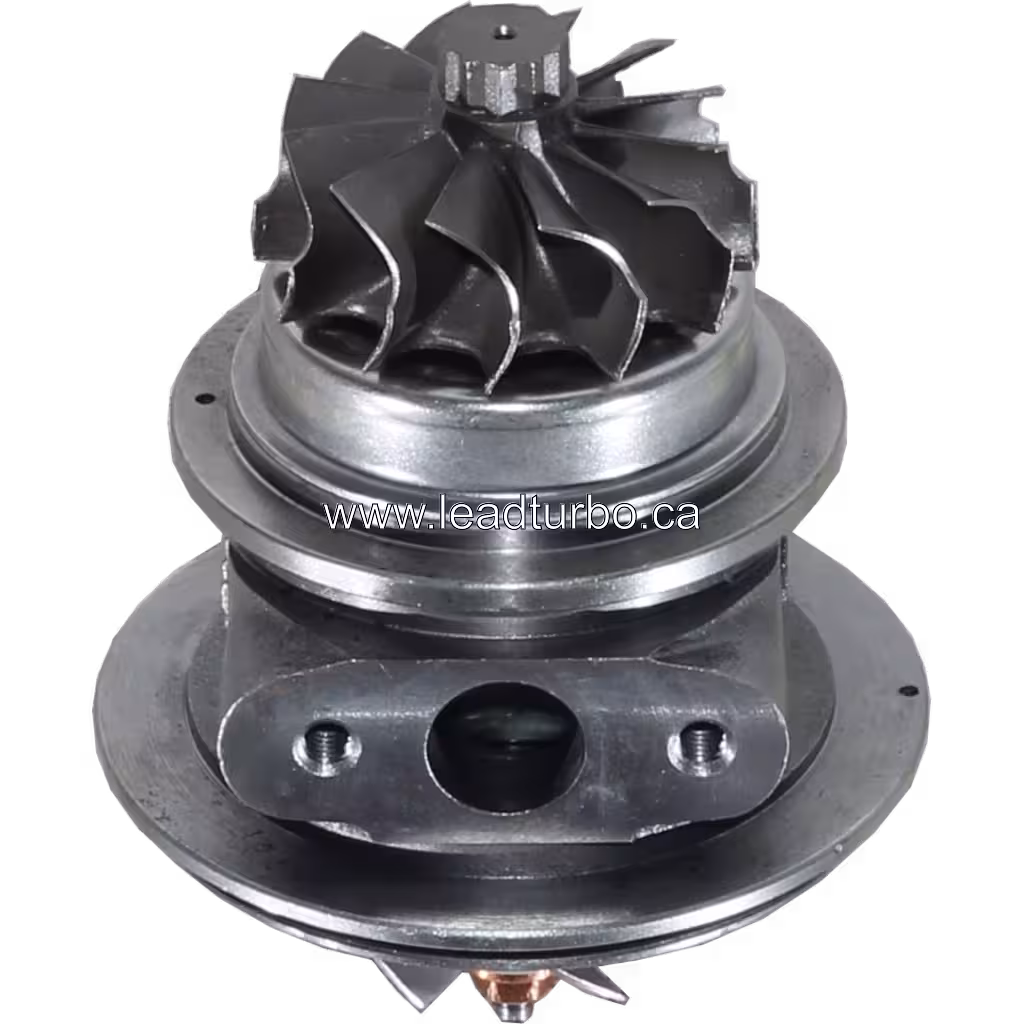

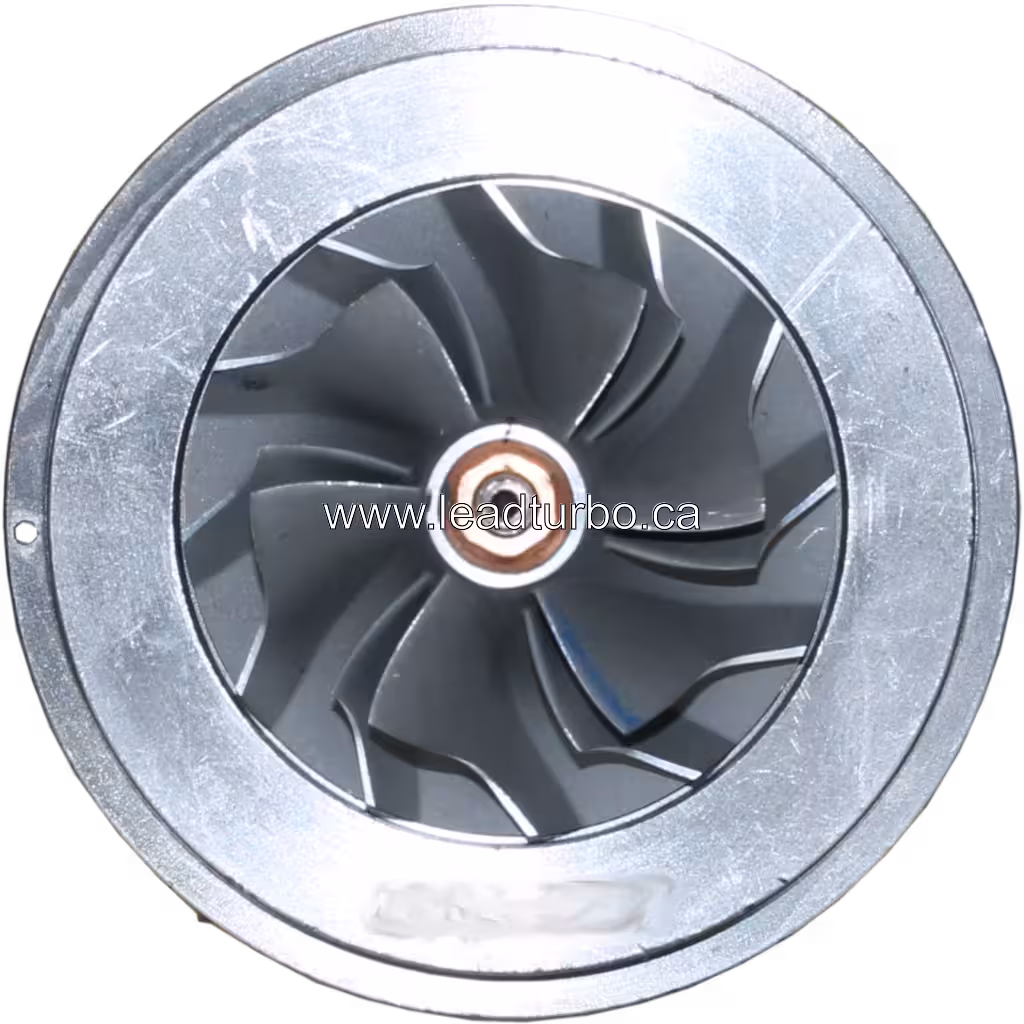

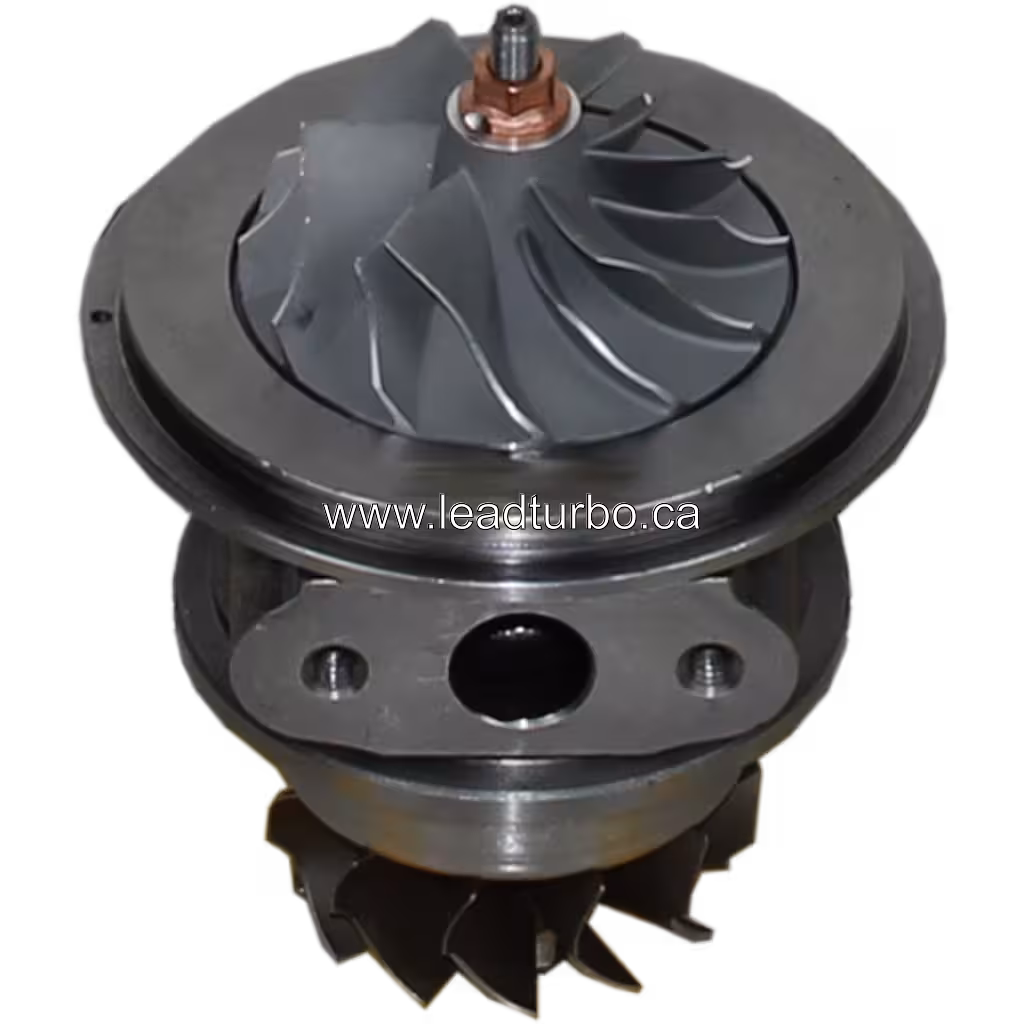

The core assembly features a flanged mounting details with two threaded holes and a central opening. Visible components include curved compressor and turbine blades, a central shaft with a copper-colored bearing area, and a silver metal housing. Buyers should verify the mounting orientation and shaft alignment against their existing unit using the provided front, top, and bottom view images.
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- HITACHI > HITACHI EX120-2 3 > ISUZU 4BD1T 4BG1T
- HITACHI > HITACHI EX100-3 > ISUZU 4BD1-T
- KOBELCO > KOBELCO SK120-1 > ISUZU 4BG1T
This TD04H-15G core is listed for reference applications involving Isuzu 4BD1T and 4BG1T engines in construction equipment. Use the following application paths as verification clues to confirm fitment against your specific machine model and engine code before ordering.
- Hitachi EX120-2 / EX120-3: Isuzu 4BD1T / 4BG1T
- Hitachi EX100-3: Isuzu 4BD1-T
- Kobelco SK120-1: Isuzu 4BG1T
Cross-check the OEM reference 49189-08100 and part number FOR 49189-00501 against your existing unit. Verify the flanged mounting details and shaft orientation using the provided images to ensure the core matches your installation requirements.
Technical Notes
The TD04H-15G core assembly is a balanced CHRA unit intended for Isuzu 4BD1T and 4BG1T engine applications. Visible features include a flanged mounting details with two threaded holes and a central opening, along with curved compressor and turbine blades. The central shaft features a copper-colored bearing area, which should be reviewed before installation for corrosion or damage before installation. Buyers should verify the shaft orientation and mounting pattern against their existing unit using the provided front, top, and bottom view images. Confirm the OEM reference 49189-08100 and part number FOR 49189-00501 to ensure the core matches your specific turbocharger configuration.
B2B Supply
LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for this FOR 49189-00501 core. Technical fitment support is available to verify the TD04H-15G configuration against your Isuzu 4BD1T or 4BG1T engine. Confirm the OEM reference 49189-08100 and mounting orientation before placing an order. Contact our team for bulk inquiries or to request additional verification details for your specific Hitachi or Kobelco application.
Product FAQ
HITACHI and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by HITACHI.
Compatibility Verify part number FOR 49189-00501, engine code (Isuzu 4BD1T/4BG1T), vehicle application (Hitachi EX120-2/3, EX100-3, Kobelco SK120-1), and OEM reference 49189-08100 before ordering. Confirm turbo configuration and mounting orientation against your specific unit.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
