49177-01510 TD04-09B Turbocharger Core Replacement for MITSUBISHI 4D56

This aftermarket replacement core for FOR 49177-01510 is a TD04-09B turbocharger CHRA designed for MITSUBISHI 4D56 and 4D65 engine applications. It serves as a reference replacement part for vehicles including HYUNDAI GALLOPE and KOMATSU trucks, with 15 associated OEM reference numbers available for fitment verification.

Key Specifications

• Part Number: FOR 49177-01510
• Product Type: Turbocharger Core (CHRA)
• Turbo Model: TD04-09B
• Gross Weight: 2 kg
• Packing Dimensions: 15 x 15 x 15 cm
• OEM Reference Numbers: 15 associated references, including 49177-08020, 49177-00640, and 49177-01000

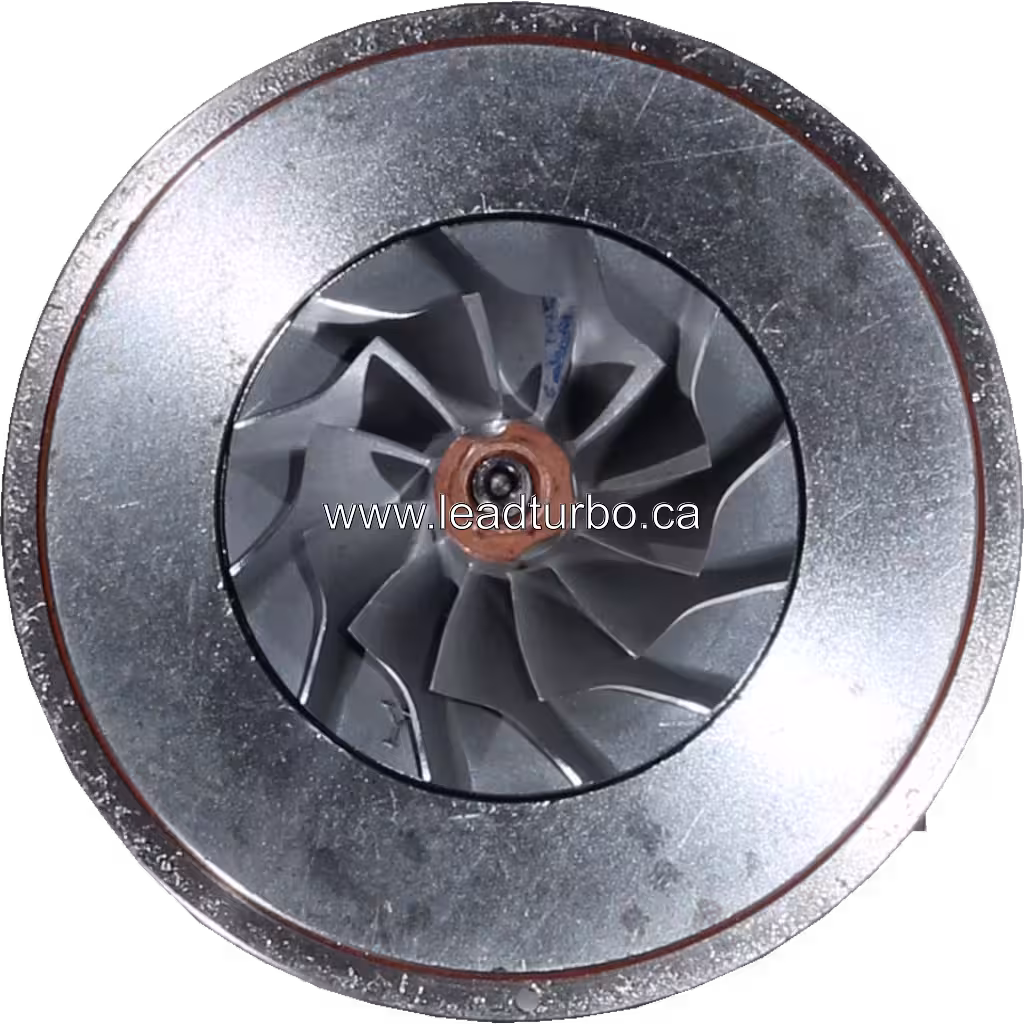

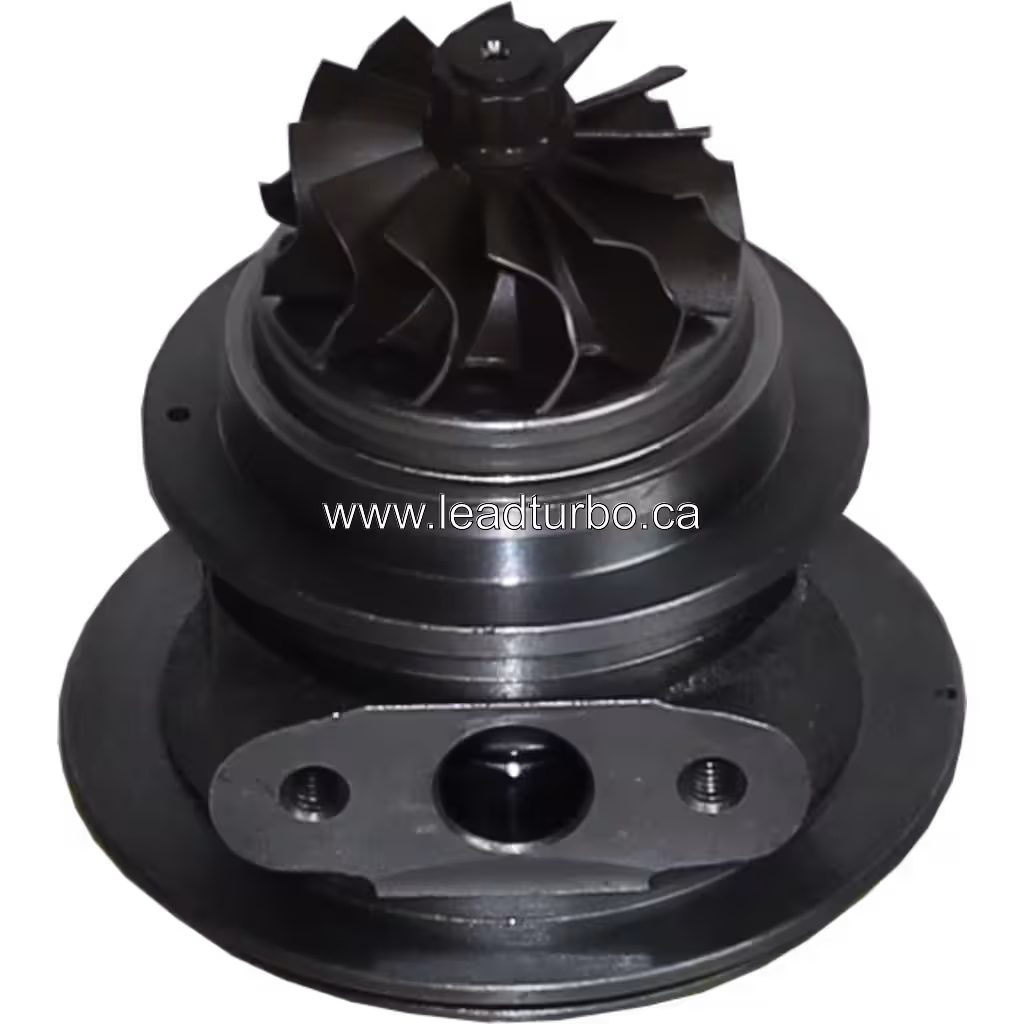

• Image Availability: High-resolution studio shots showing front, top, and bottom views of the core assembly

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• MITSUBISHI
• HYUNDAI > HYUNDAI GALLOPE > MITSUBISHI 4D56-95TC
• KOMATSU > KOMATSU TRUCK > MITSUBISHI 4D56T
• MITSUBISHI > MITSUBISHI 4D55
• MITSUBISHI > MITSUBISHI 4D56
• MITSUBISHI > 4D5 US
• MITSUBISHI > 4D55-T
• MITSUBISHI > 4D65 T
• MITSUBISHI > 4D65
• MITSUBISHI > 4D65T
• MITSUBISHI > SL 4D5

This core is a reference application for MITSUBISHI 4D56, 4D65, and 4D55 engine families, as well as HYUNDAI GALLOPE and KOMATSU truck applications. The 15 associated OEM reference numbers, including 49177-08020, 49177-00640, and 49177-01000, help confirm fitment for specific production years or market variants. Buyers should verify the exact part number, engine code, and vehicle configuration against these references before ordering. Technical fitment support is available to assist with matching the correct core for your specific unit.

Technical Notes

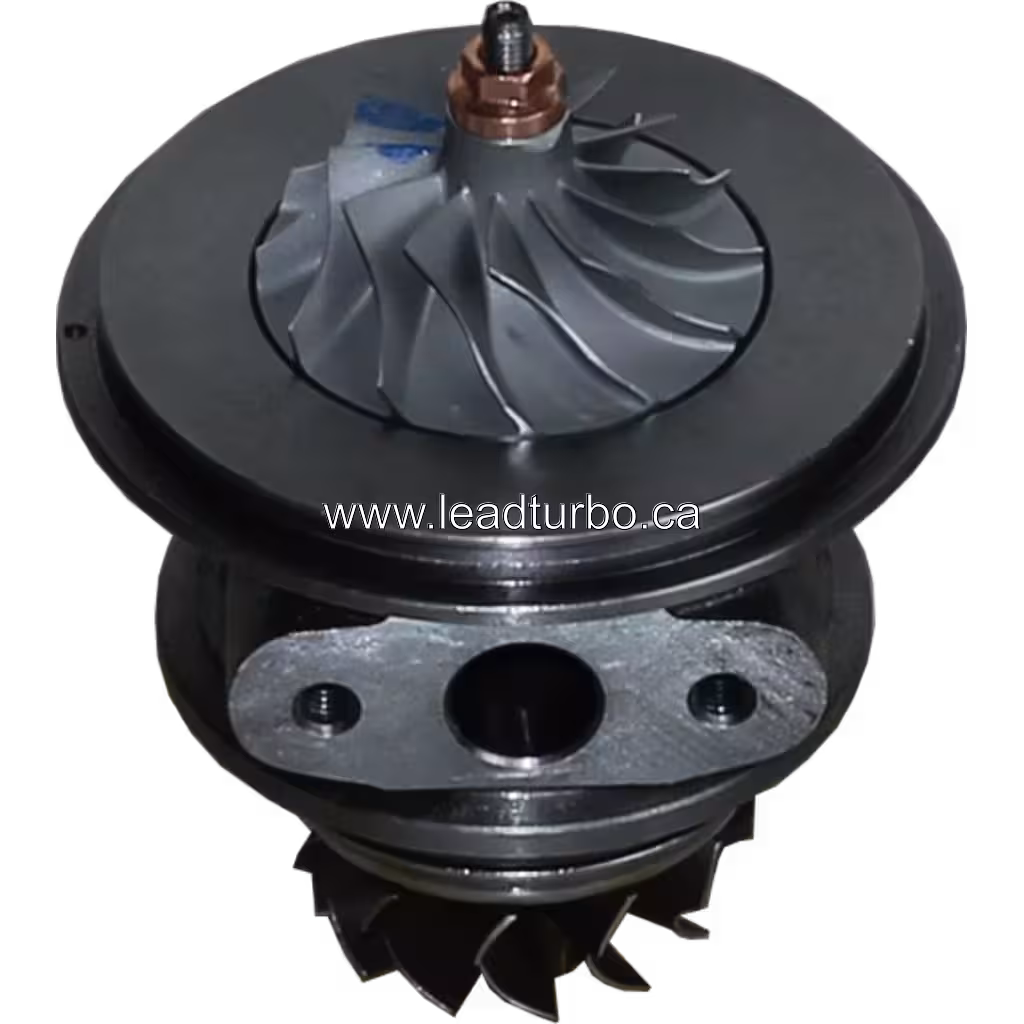

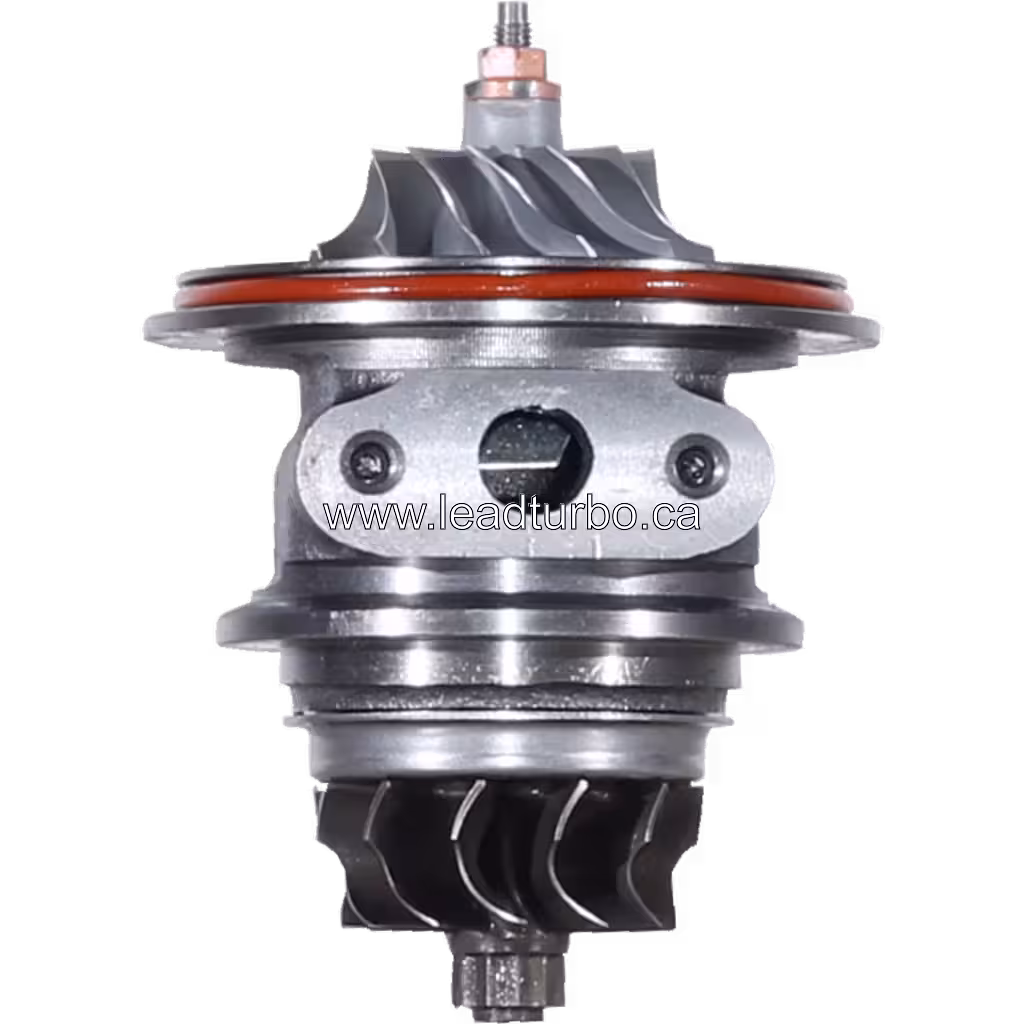

The TD04-09B core assembly features a central turbine housing with a visible turbine wheel and a compressor housing with a visible compressor wheel. A red gasket or seal ring is visible between the housings in the front view. The unit includes a two-bolt mounting flange with a central oil passage port on the side. A copper-colored nut and threaded shaft are visible at the top of the compressor wheel. The turbine housing and compressor housing have a black painted finish, while the compressor wheel and mounting flange show a silver/grey metallic finish. The turbine wheel has a black finish. These visual details help buyers verify the physical configuration against their existing unit. Confirm the mounting flange orientation and oil passage location match your specific application before ordering.

B2B Supply

LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing and worldwide shipping for this TD04-09B core. Technical fitment support is available to help verify the correct part number, engine code, and OEM reference numbers before ordering. Buyers can request additional documentation or clarification on the 15 associated references, including 49177-08020 and 49177-00640, to ensure the core matches their specific MITSUBISHI 4D56 or 4D65 application. Inquiries are handled with a focus on accurate part matching and efficient order fulfillment.
