49174-09200 TD08-22D 28 Turbocharger Core for Mitsubishi 6D22T

This aftermarket 49174-09200 TD08-22D 28 turbocharger core is a replacement component for Mitsubishi 6D22T engines. It serves as a reference application for KATO SK16-N2 and HD1250 equipment, with 10 associated OEM reference numbers for fitment verification.

Key Specifications

• Part Number: 49174-09200
• Product Type: Turbocharger Core (CHRA)
• Turbo Model: TD08-22D 28
• Gross Weight: 5 kg
• Packing Dimensions: 24 x 23 x 28 cm
• OEM Reference Numbers: 10 associated references, including 49174-00560, 49174-00565, 49174-00566, 49174-00680, 49174-00710, ME050579, ME157213, ME157214, ME157215, and ME157416.

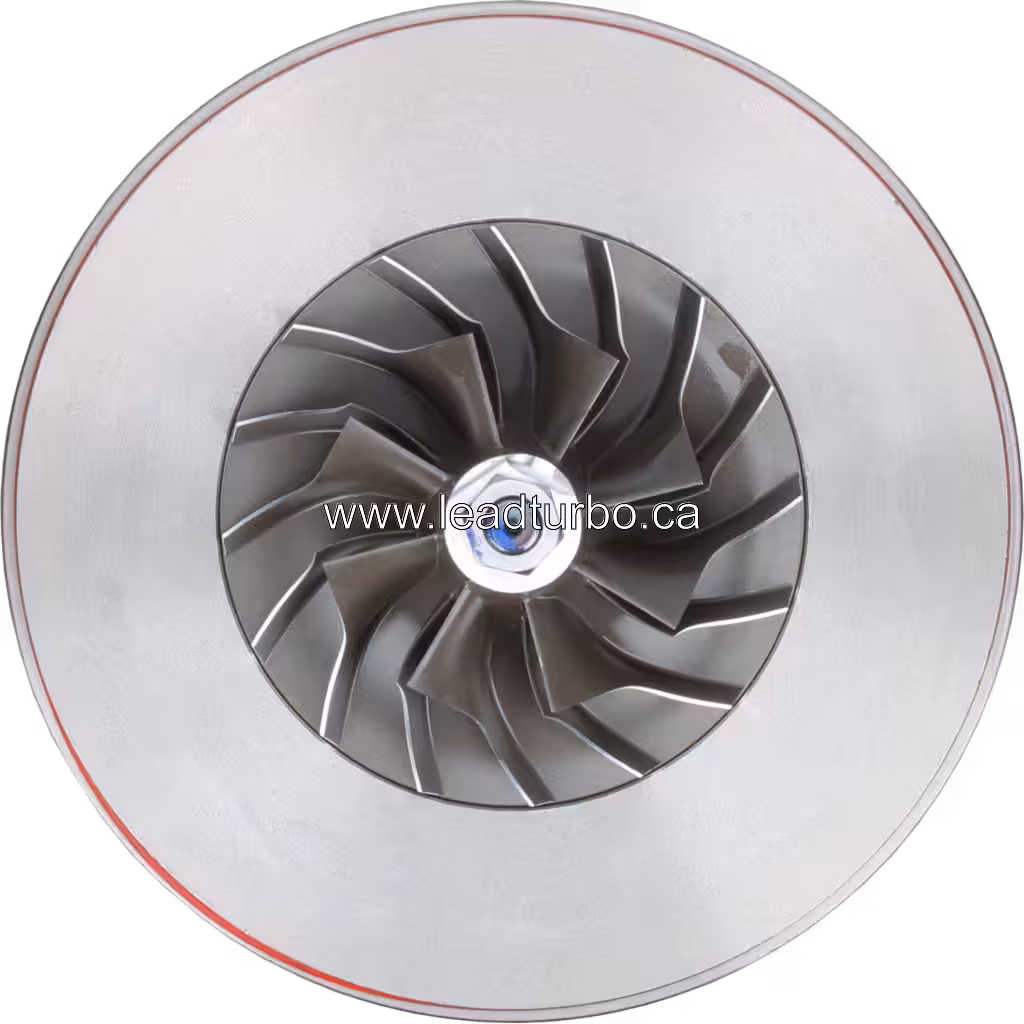

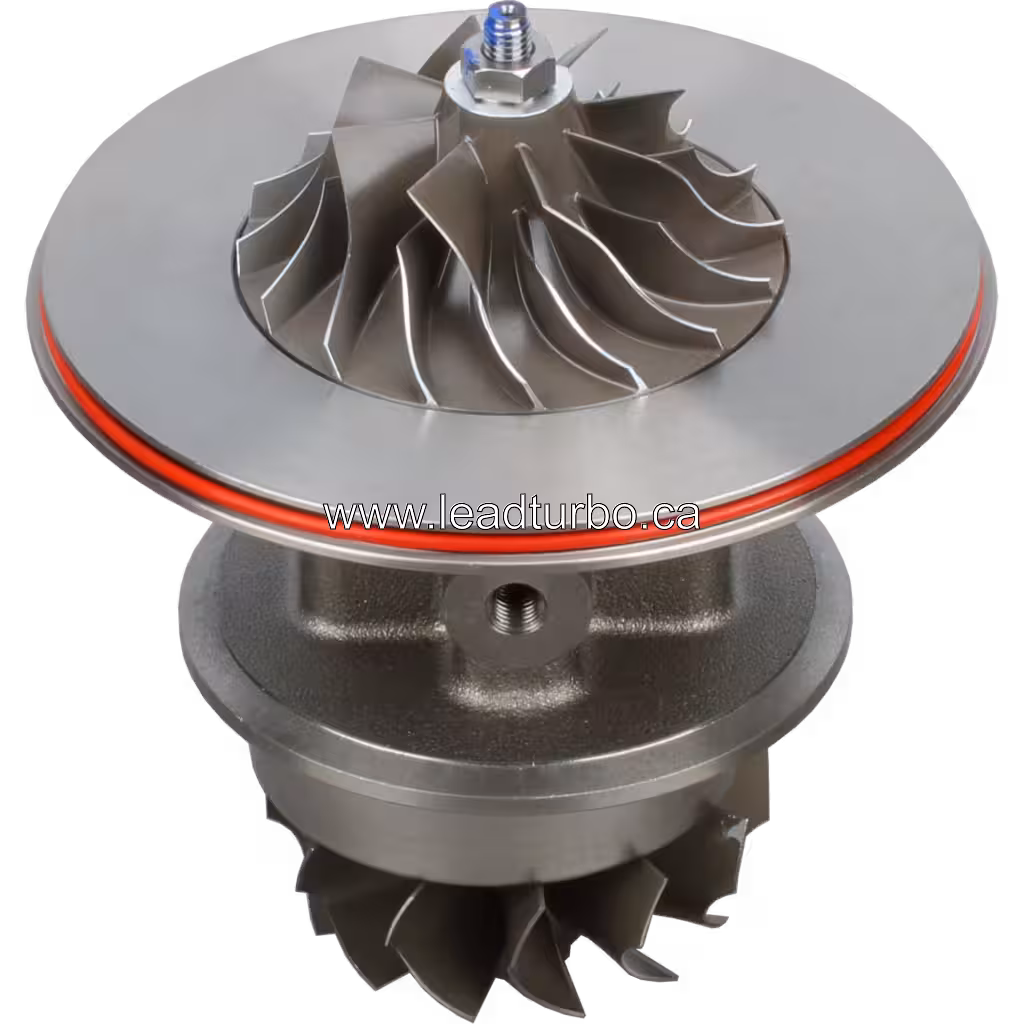

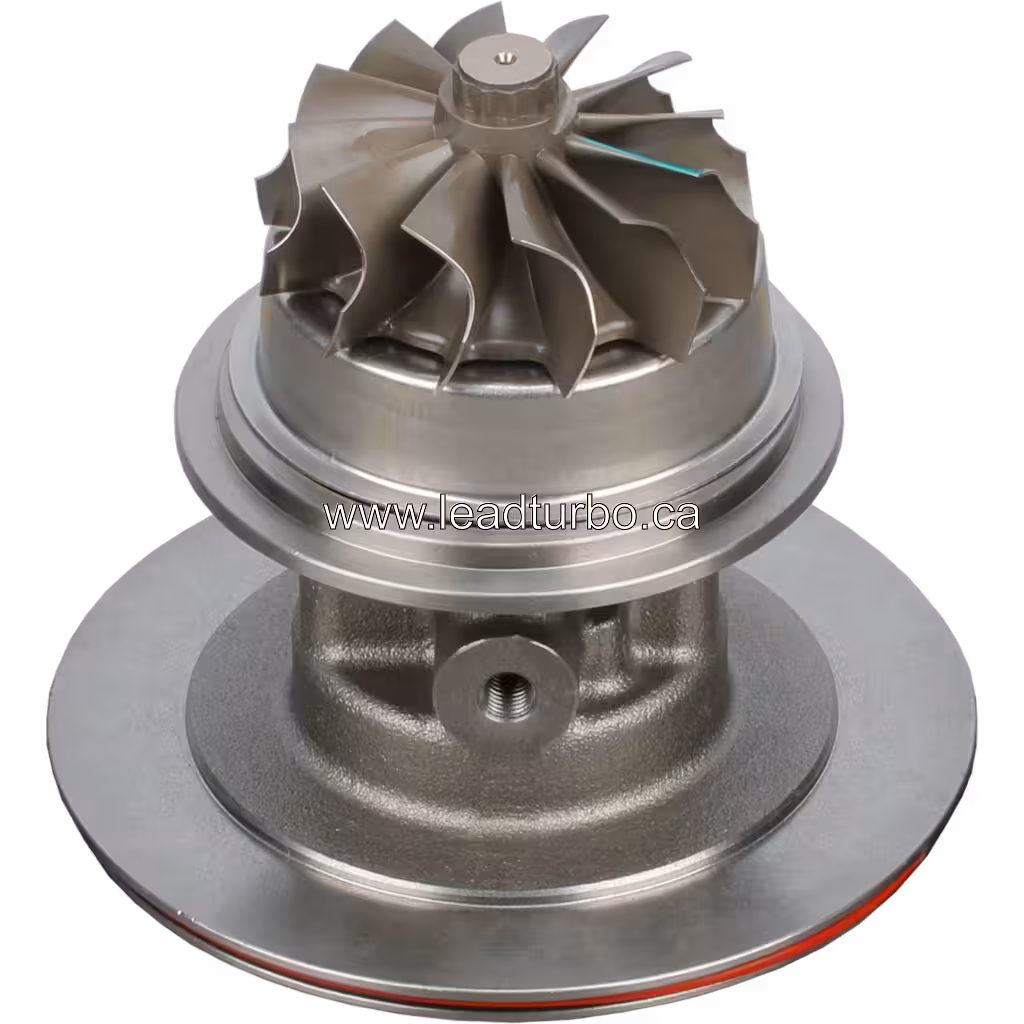

This core assembly includes the turbine housing, compressor housing, central shaft, and wheels. Visible features in product imagery include machined metal surfaces, a red O-ring seal on the compressor flange, and a central shaft with a blue anodized nut. Buyers should verify the specific OEM reference numbers against their existing turbocharger configuration to ensure the correct core is selected for their Mitsubishi 6D22T application.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• KATO > KATO SK16-N2 > MITSUBISHI 6D22T
• KATO > KATO HD1250 > MITSUBISHI 6D22

This core is listed for KATO SK16-N2 and KATO HD1250 equipment powered by Mitsubishi 6D22T and 6D22 engines. These application paths serve as reference clues for fitment verification. Buyers should confirm the specific engine code, production year, and existing turbo configuration before ordering. Cross-check the part number 49174-09200 against OEM reference numbers such as 49174-00560 or ME050579 to ensure the correct replacement application. Technical fitment support is available to assist with these verification steps.

Technical Notes

The TD08-22D 28 core is a fixed-geometry turbocharger component. It does not include variable geometry (VNT) vanes or an electronic actuator. During installation, verify that the turbine shaft rotates freely without binding. Check the red O-ring seal on the compressor housing flange for damage before assembly. Confirm the central shaft alignment and torque specifications per the manufacturer's service manual. LeadTurbo provides technical fitment support to verify these installation parameters for your specific Mitsubishi 6D22T application.

B2B Supply

LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing for the 49174-09200 TD08-22D 28 core. Worldwide shipping is available for this 5 kg unit packed in a 24 x 23 x 28 cm carton. Our team provides technical fitment support to help verify OEM reference numbers and engine applications before you place an order. Contact us for bulk quotes or to confirm specific Mitsubishi 6D22T configurations.
