49135-09022 TF035HM Turbocharger Core for Hyundai D4EB 150HP & 155HP
Aftermarket TF035HM turbo core, part number 49135-09022, for Hyundai Santa Fe 2.2 CRDI D4EB engines (150HP/155HP). Verify engine code and application before ordering. B2B volume pricing available.
Orders without stock ship approximately 60 days after ordering. Estimated ship date if ordered today: .
Subtotal: US$ 90.00
Send an InquiryThis aftermarket TF035HM turbocharger core, part number 49135-09022, is a replacement CHRA for Hyundai Santa Fe 2.2 CRDI vehicles equipped with the D4EB engine. Verify your specific engine code and production year before ordering to ensure the correct fitment for your application.
Key Specifications
- Part Number: 49135-09022
- Product Type: Turbocharger Core (CHRA)
- Turbo Model: TF035HM
- Gross Weight: 2 kg
- Application Clues: Hyundai Santa Fe 2.2 CRDI, D4EB engine (150HP/155HP)

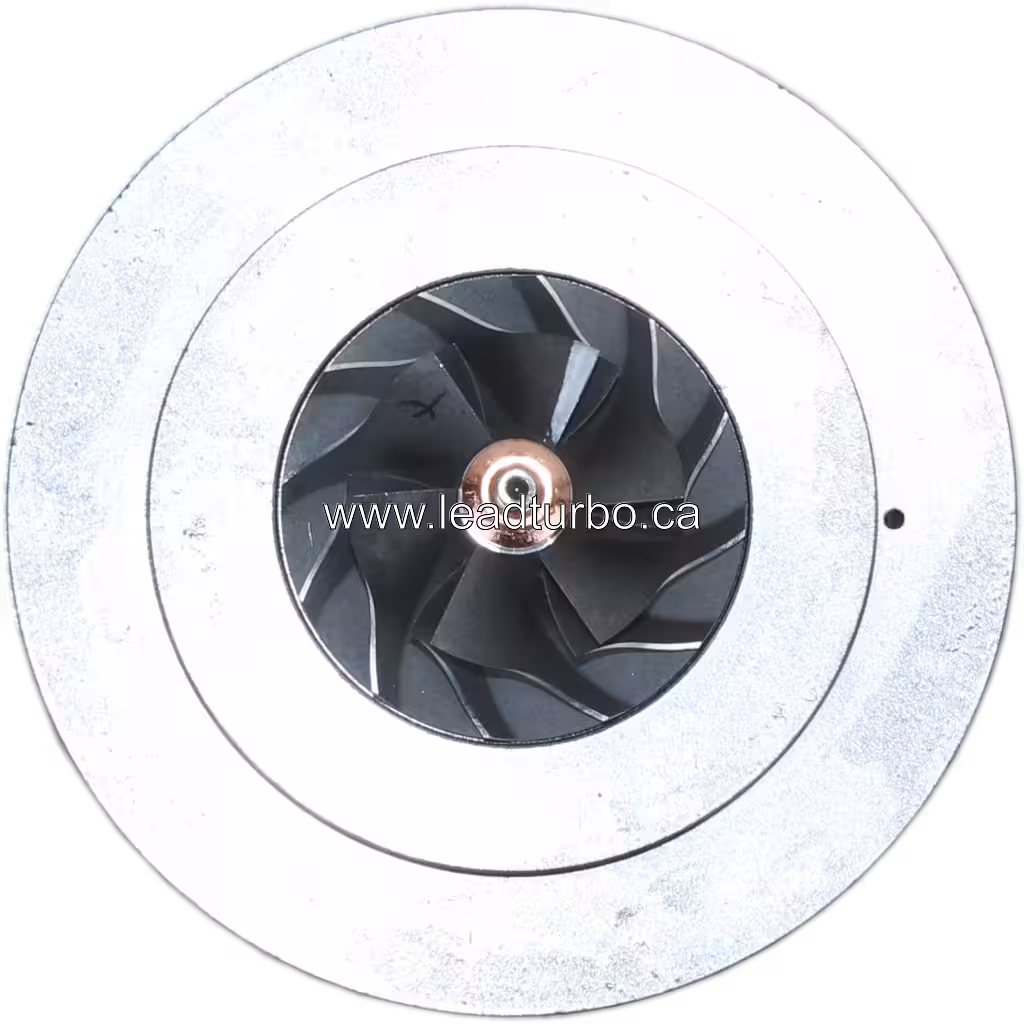

- Image Availability: High-resolution studio photos showing compressor/turbine wheels, bearing housing, and actuator mounting point

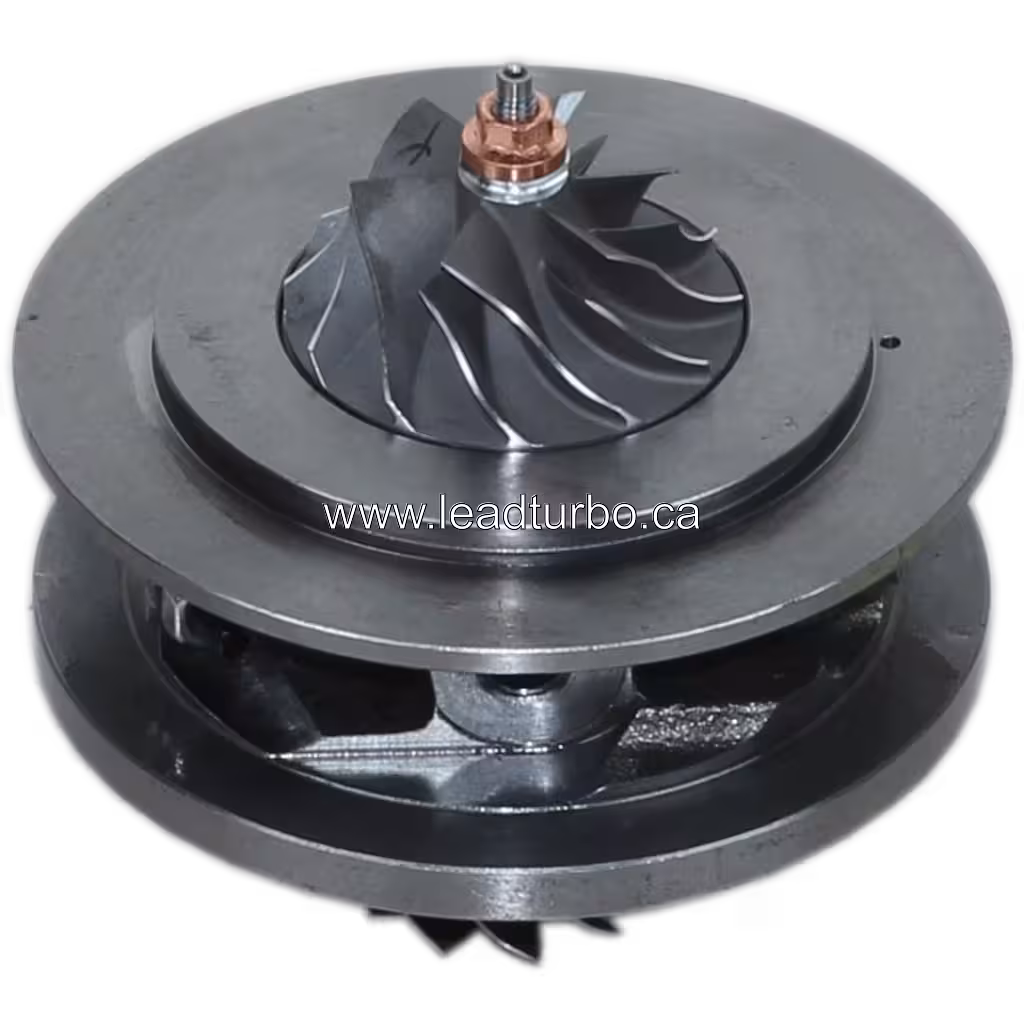

This core assembly includes the central bearing housing, compressor wheel, and turbine wheel. The visible actuator mounting point and mounting flanges are designed for integration into the TF035HM housing. Verify the specific turbo configuration and housing compatibility before installation.
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- HYUNDAI > HYUNDAI SANTA FE 2 2 CRDI > HYUNDAI D4EB 150HP
- HYUNDAI > HYUNDAI SANTA FE 2 2 CRDI > HYUNDAI D4EB 155HP
- HYUNDAI > D4EB
This TF035HM core is listed for Hyundai Santa Fe 2.2 CRDI vehicles with D4EB engines, covering both 150HP and 155HP variants. These application paths serve as reference clues for fitment verification. Buyers should confirm the specific engine code, production year, and turbocharger configuration against their vehicle VIN or service manual before ordering.
- Vehicle: Hyundai Santa Fe 2.2 CRDI
- Engine: D4EB (150HP / 155HP)
- Verification: Check part number 49135-09022 and turbo model TF035HM against your specific unit.
Technical fitment support is available to help confirm the correct core assembly for your application.
Technical Notes

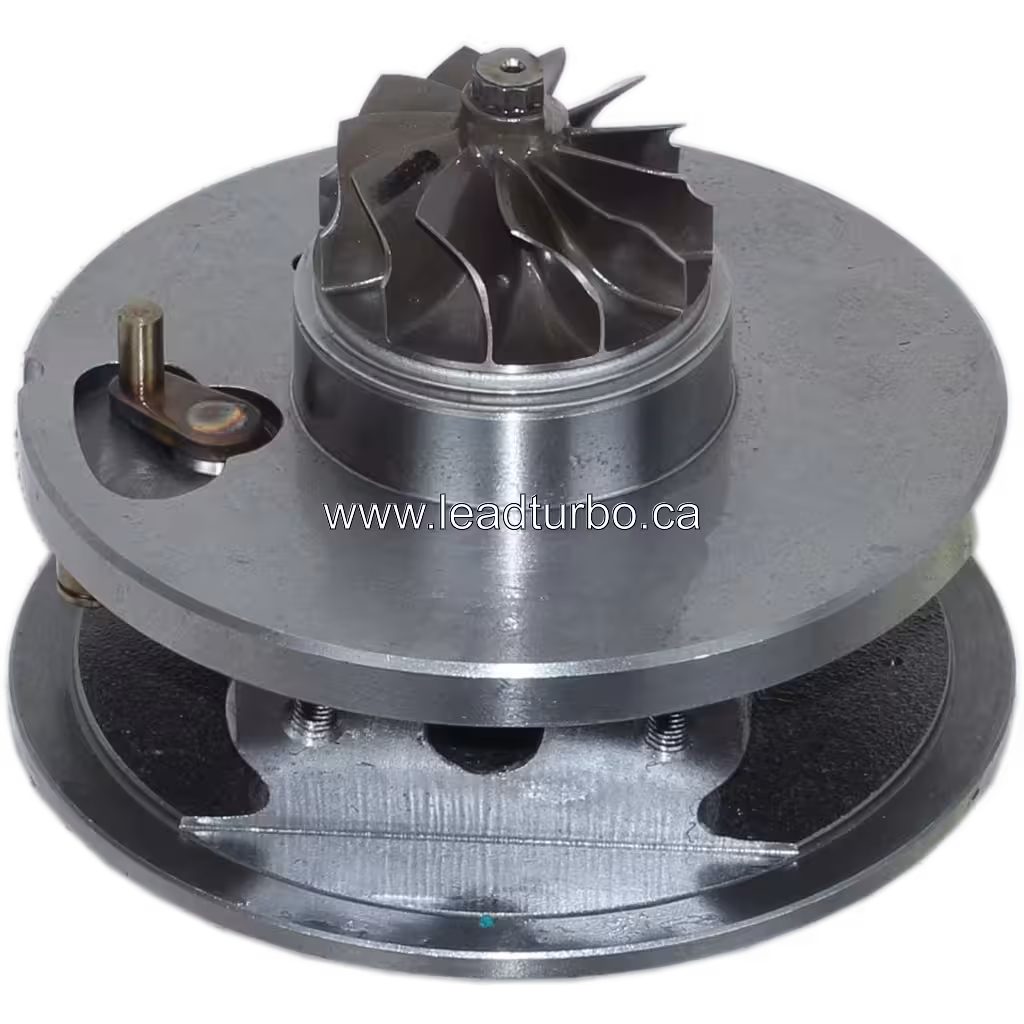

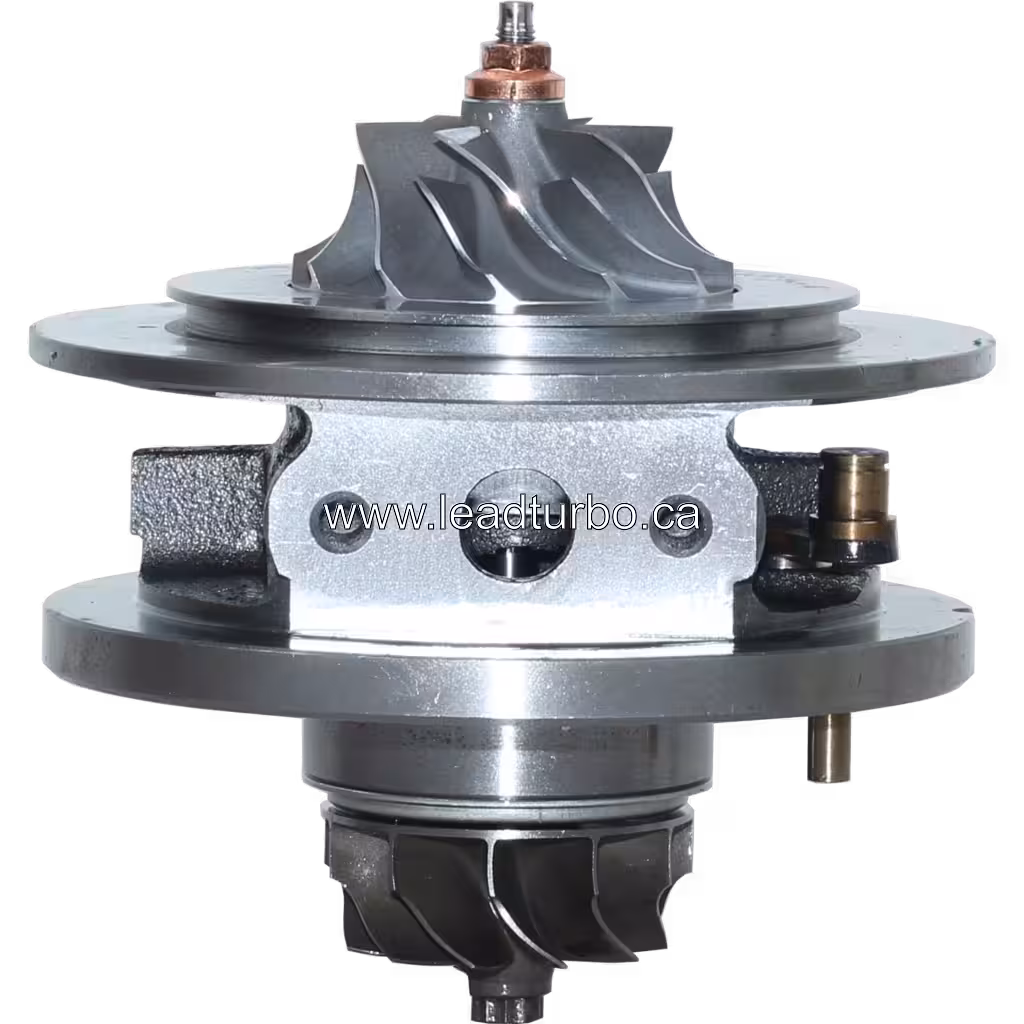

The TF035HM core assembly features a central bearing housing connecting the compressor and turbine wheels. Visible mounting flanges and tabs are designed for integration into the corresponding turbocharger housing. The actuator mounting point is positioned for standard actuator attachment. Before installation, verify that the housing, gaskets, and oil lines are clean and free of debris. Confirm the specific turbo configuration and part number 49135-09022 against your vehicle service manual to ensure the correct replacement application.
B2B Supply
LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing for the 49135-09022 TF035HM core. Worldwide shipping is available for this aftermarket replacement part. Technical fitment support is provided to help verify the correct core assembly for your specific Hyundai D4EB application. Contact our team to confirm part number, engine code, and turbo configuration before placing an order.
Product FAQ
HYUNDAI and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by HYUNDAI.
Compatibility Reference application for Hyundai Santa Fe 2.2 CRDI with D4EB engine (150HP and 155HP variants). Verify part number 49135-09022, engine code, vehicle production year, and specific turbo configuration before ordering. This is an aftermarket replacement component; confirm fitment against your specific vehicle VIN or service manual.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
