3594204 HC5A Turbocharger Core for Cummins KTA50 | Replacement

The 3594204 HC5A turbocharger core is an aftermarket replacement CHRA designed for Cummins KTA50 engines in heavy-duty mining and generator applications. This balanced core assembly serves as a reference replacement for BelAZ 75131 mining dump trucks and Komatsu 630 equipment, supporting B2B buyers who require verified fitment for high-horsepower industrial systems.

Key Specifications

• Part Number: 3594204
• Product Type: Turbocharger Core (CHRA)
• Turbo Model: HC5A
• Packing Dimensions: 21 x 23 x 26 cm
• Gross Weight: 12 kg
• OEM Reference Numbers: 3594207, 3594025, 3594026, 3594051, 3594052, 3594053, 3594074, 3594075, 3594104, 3594105, 3594106, 3801846, 3801886, 3803338, 4025013, 4033447, 4033455, 4033465, 4033582, 4044418, 4955505

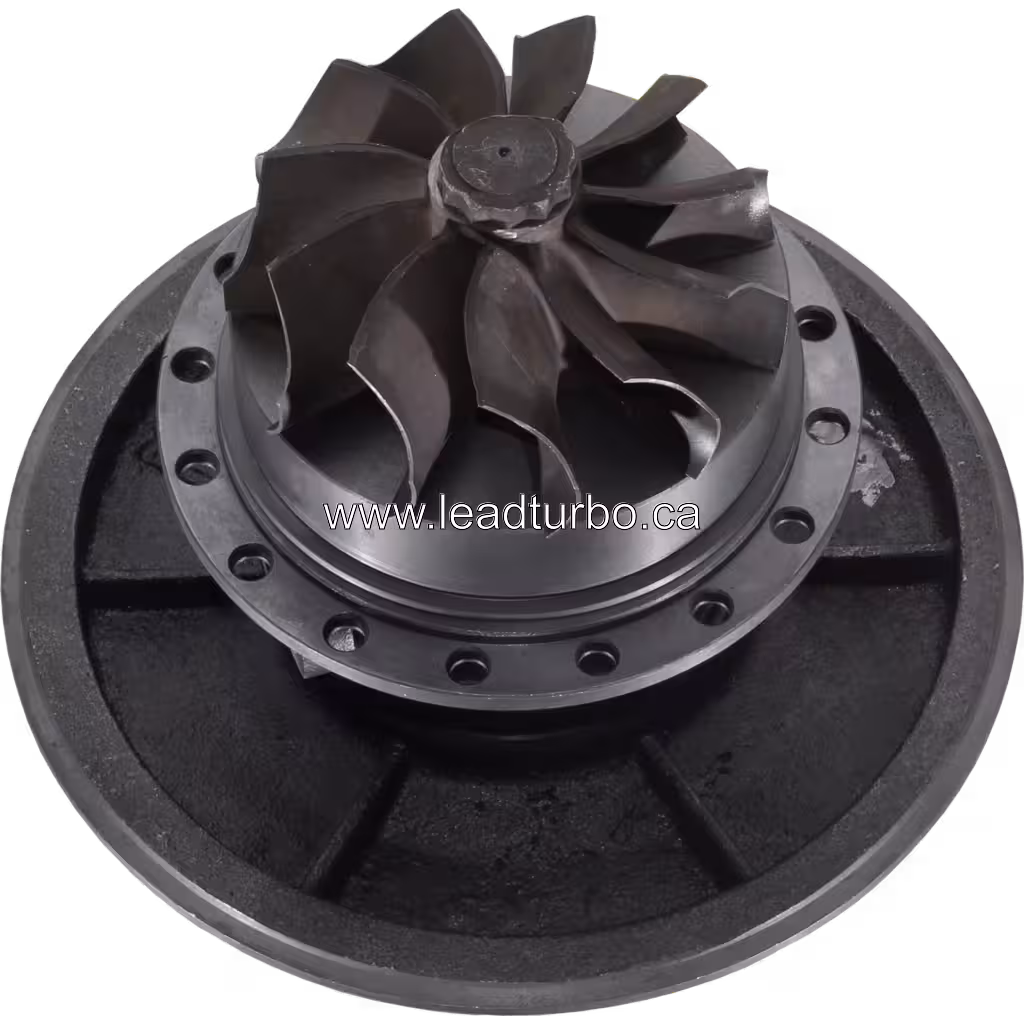

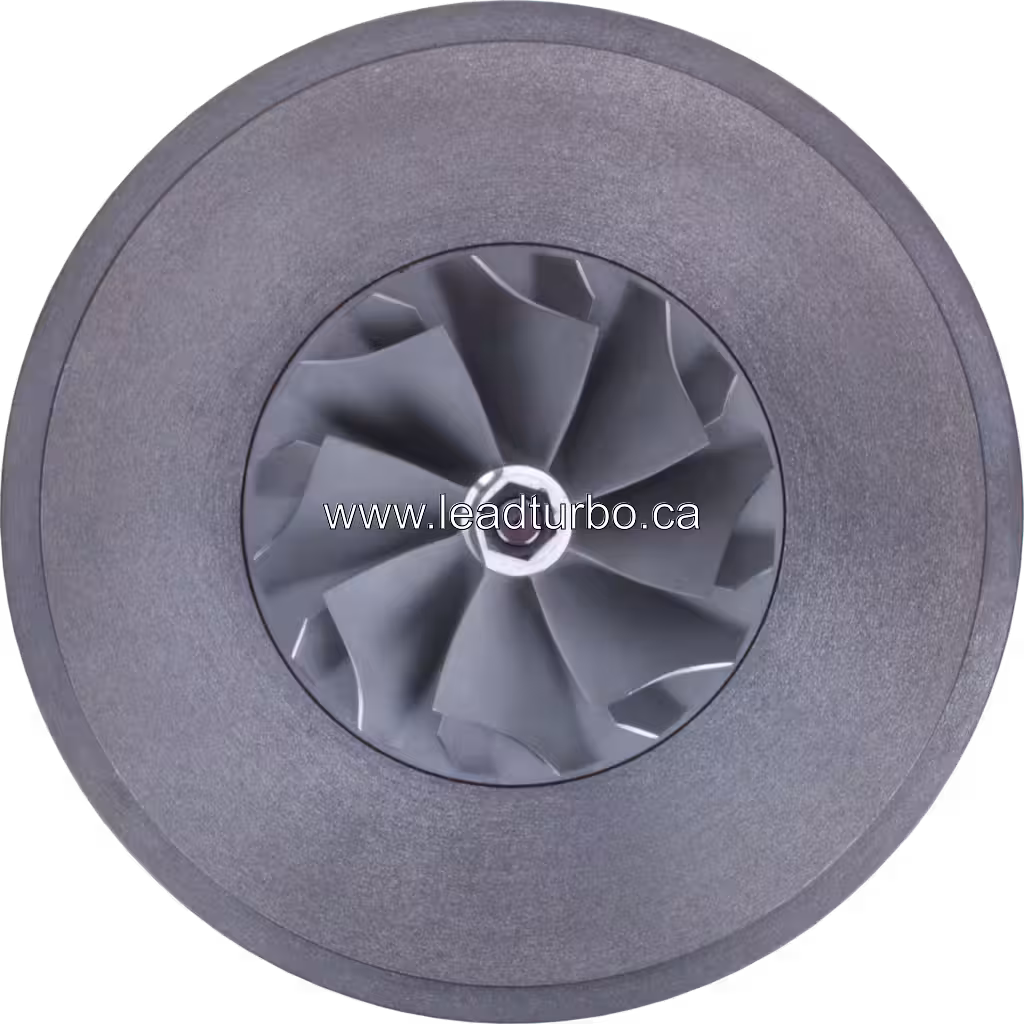

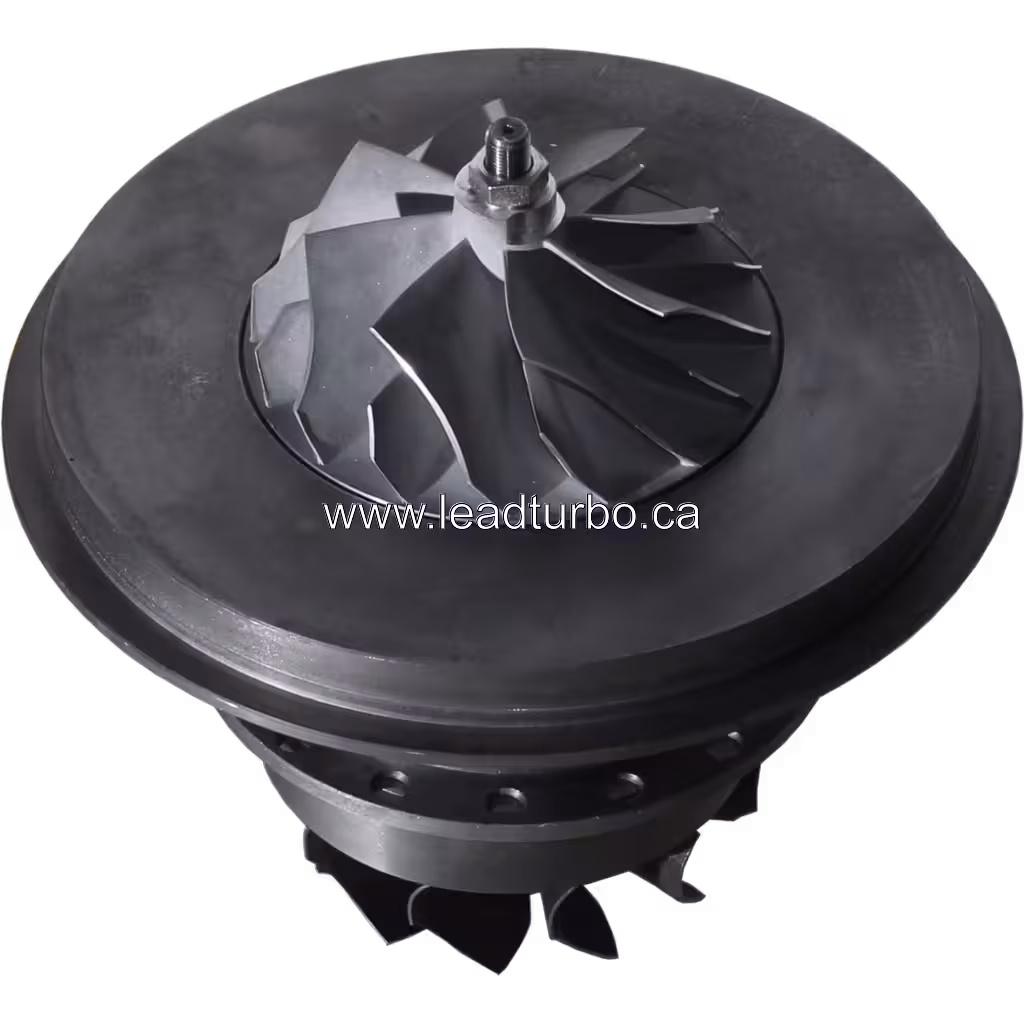

• Image Availability: High-resolution studio photography showing compressor and turbine wheels, central bearing housing, and mounting flanges.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• BelAZ > 75131 > 75131 Mining dump truck > CUMMINS KTAA50-C160
• BelAZ > BELAZ-75131 > BELAZ-75131 130–136-ton mining dump truck > CUMMINS KTA50 1600HP
• KOMATSU > Komatsu 630 > Cummins KTA50
• KOMATSU > Komatsu HD325 > Cummins KT
• ONAN > 1500 DFMB generator set > CUMMINS KTTA50 1840HP

This HC5A core is listed for Cummins KTA50 engines in heavy-duty mining and generator applications. Reference applications include the BelAZ 75131 mining dump truck, Komatsu 630, and Onan 1500 DFMB generator set. Buyers should verify the specific engine variant, turbo configuration, and flange type against their equipment. Cross-check OEM reference numbers such as 3594207 and 3594025 to confirm fitment before ordering. Technical fitment support is available to assist with verification.

Technical Notes

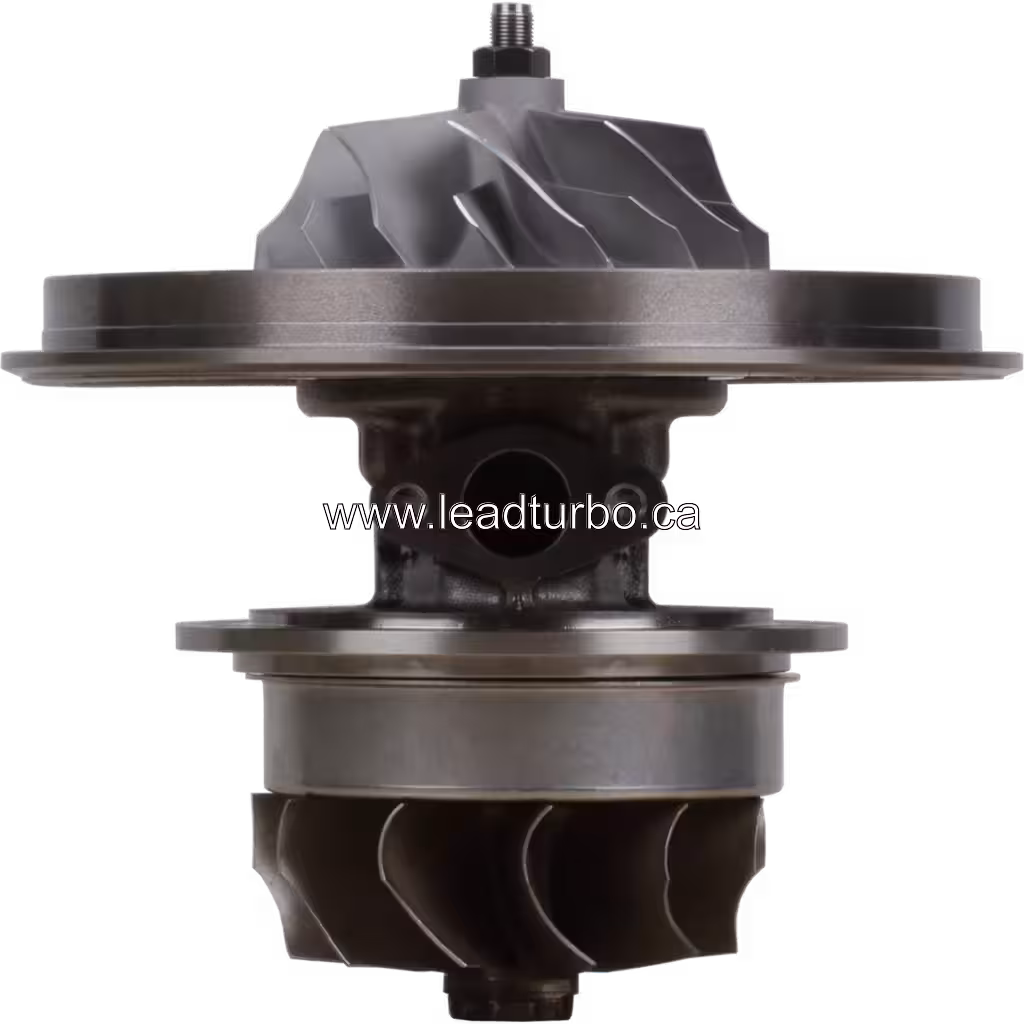

The HC5A core assembly features a central bearing housing connecting the compressor and turbine housings, with visible flanged mounting surfaces on both ends. The central shaft includes threaded ends, and a water seal or drain port is visible on the central housing. Buyers should verify the flange type and bolt pattern against their specific turbine housing application. Balancing is critical for stable operation in high-RPM engines like the Cummins KTA50; ensure the core meets balance specifications during pre-shipment inspection. Cross-check the nozzle ring vane count and height if applicable to your specific turbo configuration.

B2B Supply

LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for the 3594204 HC5A core. Technical fitment support is available to help verify part number, engine code, and OEM reference numbers before ordering. This service assists repair shops, distributors, and fleet parts buyers in confirming that the core matches their specific Cummins KTA50 application, such as BelAZ 75131 or Komatsu 630 equipment. Inquire for current stock availability and shipping timelines.
