3016871 TH Turbine Housing BTL8503 Turbocharger
Aftermarket turbine housing for FOR 3016871 TH / BTL8503. Reference application for CAT 3508B and CAT 3516B. Verify part number, engine code, and OEM reference numbers before ordering.
Show more cross references
2586589 258-6589 750128-0002 750129-0002 750129-2 FOR 10R2844 TH FOR 236-0857 TH FOR 254-4243 TH FOR 287-7215 TH FOR 296-3614 TH FOR 296-3616 TH FOR 301-6871 TH FOR 301-6873 TH FOR 338-3523 TH FOR 339-5907 TH FOR 740464-0004 TH FOR 740464-0009 TH FOR 740464-0011 TH FOR 740464-0015 TH FOR 740464-0018 TH FOR 740464-0019 TH FOR 740464-0020 TH FOR 740464-0021 TH FOR 740464-20 TH FOR 740464-5020 TH FOR 740464-5020S THSubtotal: US$ 150.00
Send an InquiryThis aftermarket turbine housing is a replacement component for the FOR 3016871 TH part, specifically designed for BTL8503 turbochargers in CAT 3508B industrial generator sets. It serves as a reference application for CAT 3516B and other heavy-duty Caterpillar equipment, requiring verification of OEM reference numbers such as 2586589 before ordering.
Key Specifications
- Part Number: FOR 3016871 TH
- Product Type: Turbine Housing
- Turbo Model: BTL8503
- Application Clues: CAT 3508B, CAT 3516B, CAT 3516
- Gross Weight: 12.3 kg
- Packing Dimensions: 24*23*28 cm
- Representative OEM References: 2586589, 750128-0002, 750129-0002, FOR 236-0857 TH

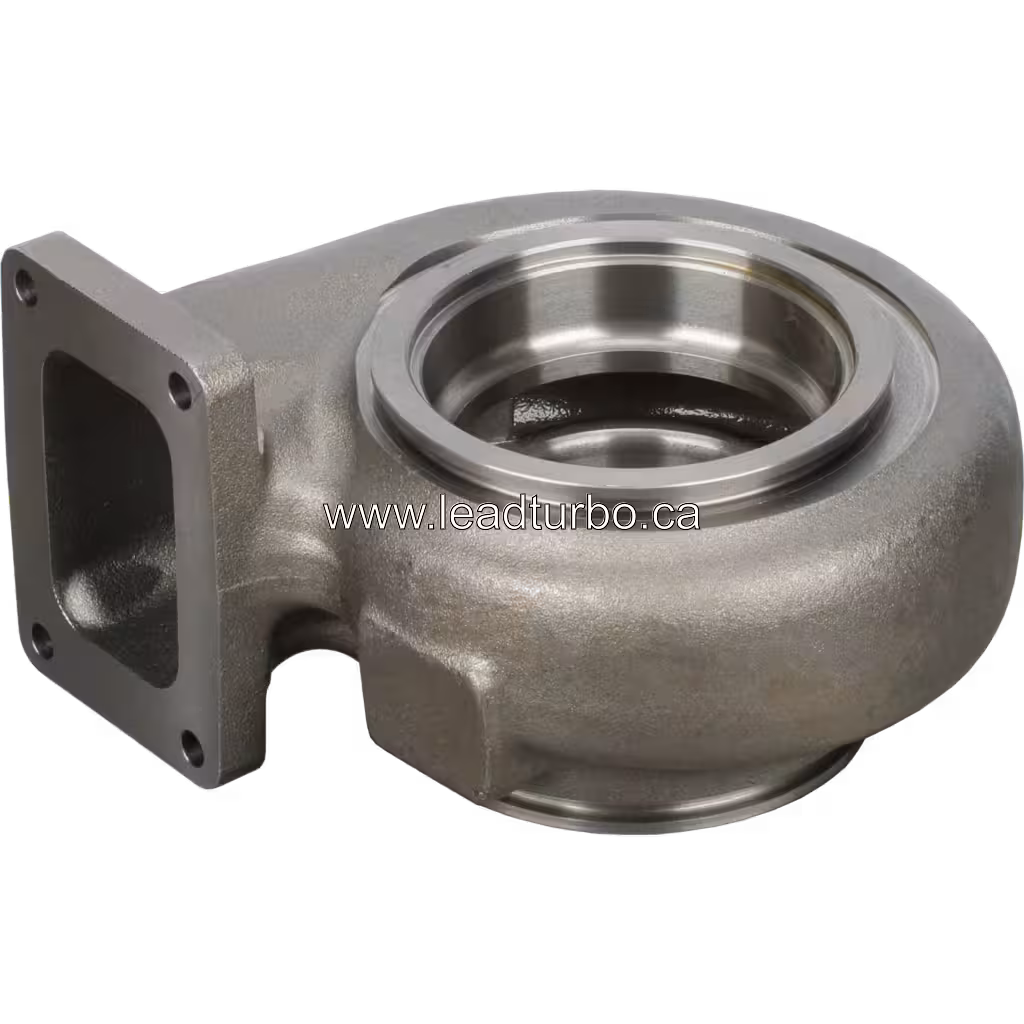

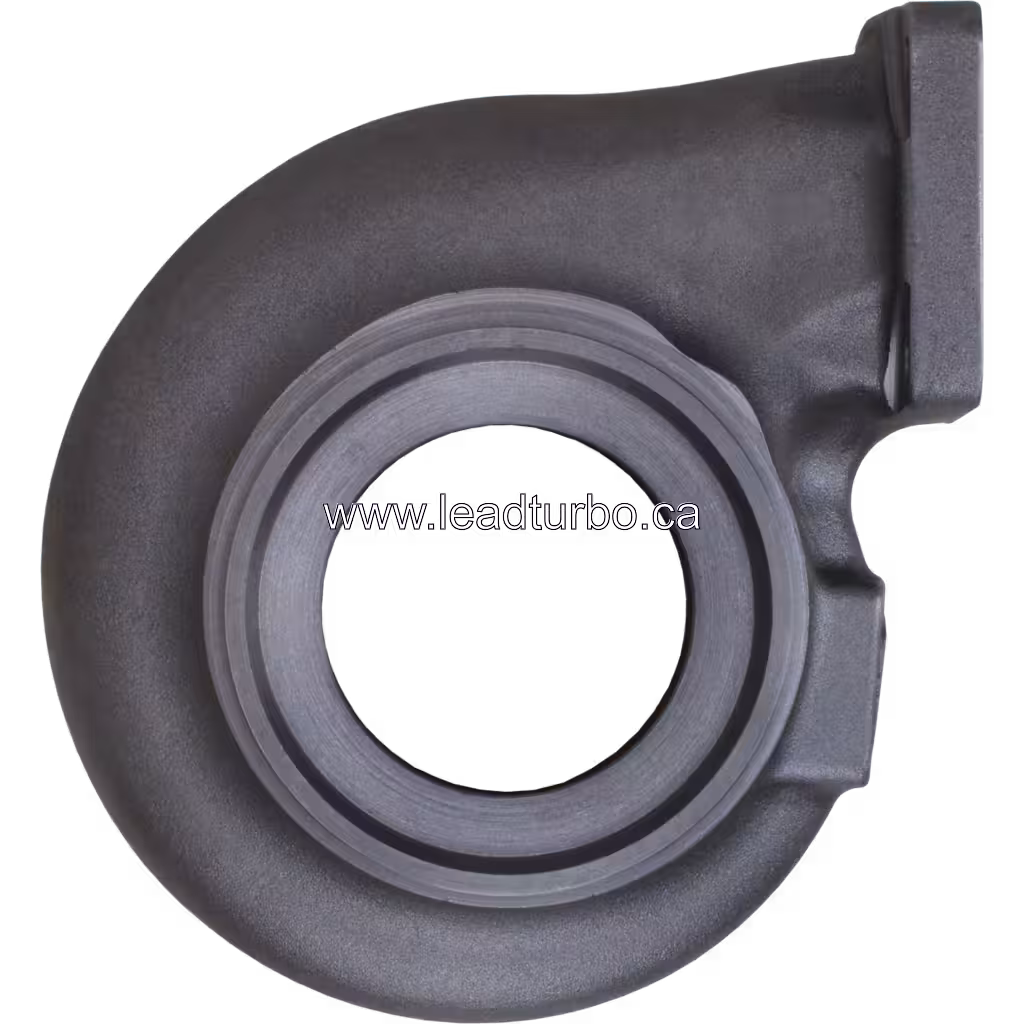

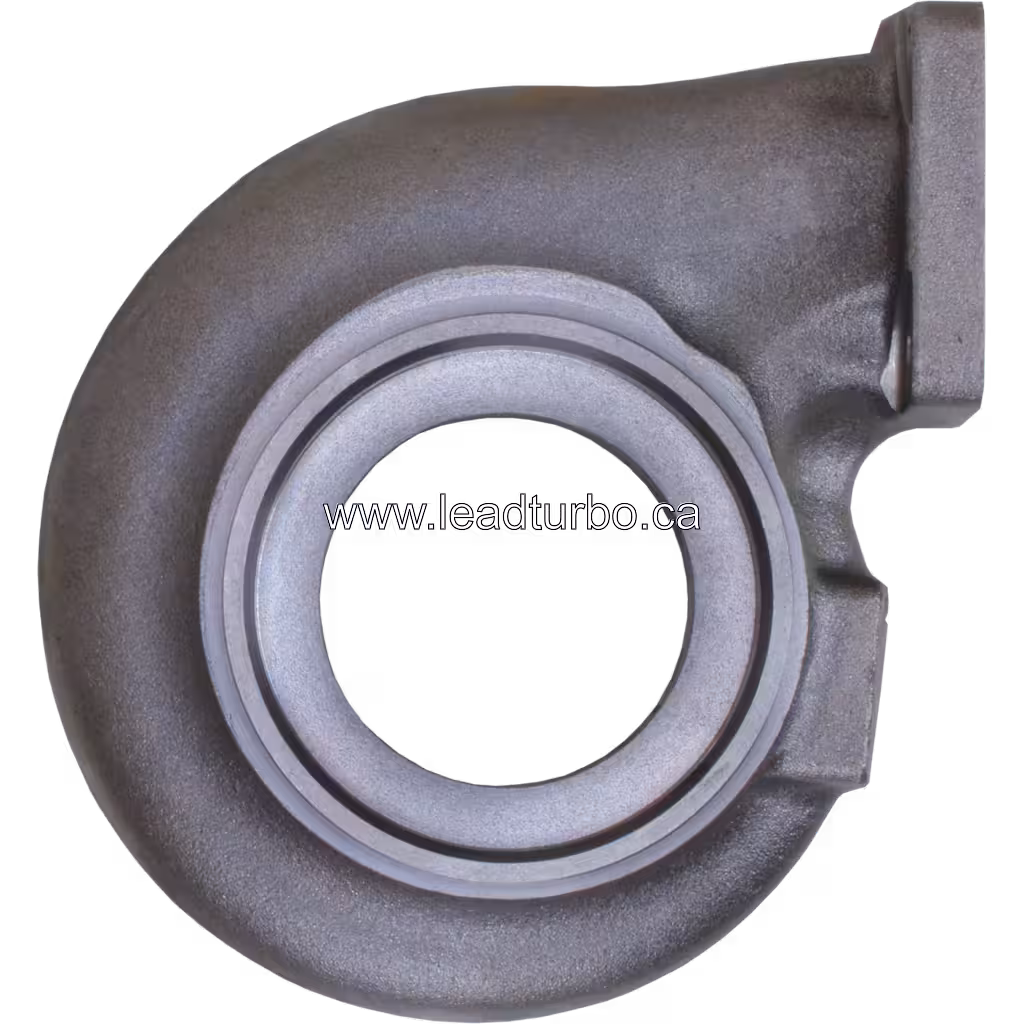

- Image Availability: High-resolution studio photography showing front, top, and bottom views

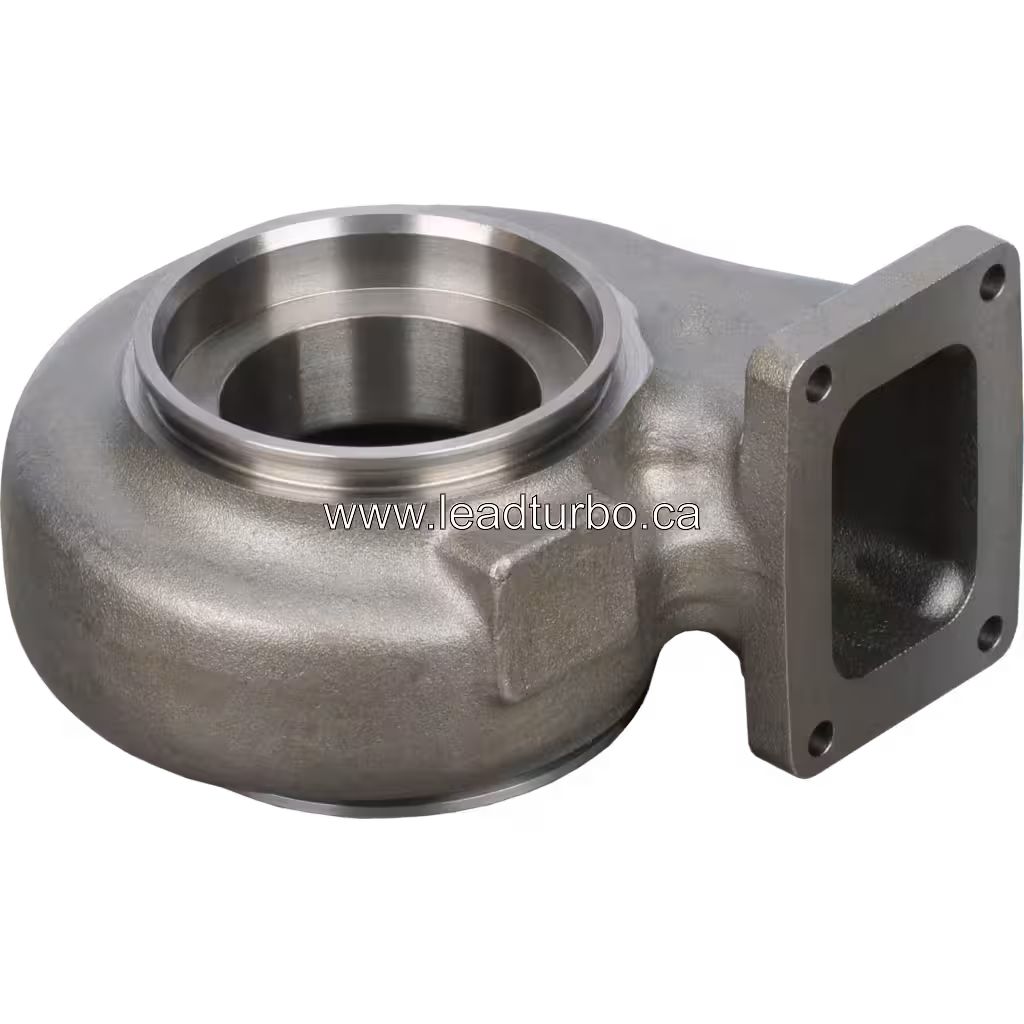

- Visible Features: Cast metal housing, circular opening, rectangular flange with four bolt holes
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- Caterpillar > CAT > CAT GENERATOR SET INDUSTRIAL > CAT 3508B
- Caterpillar > CAT > CAT EARTH MOVING
- Caterpillar > CAT > CAT TRUCK 793 HD > CAT 3516B
- Caterpillar > CAT > CAT 3516
This turbine housing is listed for reference applications including CAT 3508B industrial generator sets, CAT 3516B trucks, and CAT earth-moving equipment. It is associated with 26 OEM reference numbers, including 2586589, 750128-0002, and FOR 236-0857 TH. Buyers should verify the part number, engine code, and specific turbo configuration against these references before ordering. Confirm the rectangular flange bolt pattern and mounting surface dimensions match your existing housing to ensure proper installation.
Technical Notes
The BTL8503 turbine housing features a cast metal construction with a spiral volute design and a machined circular opening. The rectangular flange includes four bolt holes for mounting; verify the bolt pattern and surface dimensions against your existing housing before installation. This component is associated with 26 OEM reference numbers, including 2586589 and 750128-0002. Confirm these references match your specific CAT 3508B or 3516B turbo configuration. The 12.3 kg gross weight reflects the heavy-duty industrial nature of this part. Ensure the turbine housing is balanced with the compressor wheel during CHRA assembly to maintain stable operation.
B2B Supply
LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing and worldwide shipping for this turbine housing. Technical fitment support is available to help verify the FOR 3016871 TH part number against your specific CAT 3508B or 3516B turbo configuration. Confirm the 26 associated OEM reference numbers, including 2586589 and 750128-0002, along with the 12.3 kg gross weight and 24*23*28 cm packing dimensions, before placing an order. Contact our team for bulk inquiries or to request pre-shipment inspection details for your fleet or industrial generator set applications.
Product FAQ
CAT and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by CAT.
Compatibility Verify part number, engine code, vehicle application, production year, and OEM reference numbers (e.g., 2586589, 750128-0002) before ordering. This is an aftermarket replacement application; confirm fitment against your specific turbo configuration.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
