8972402101 RHF4H- Turbocharger Replacement for Isuzu 4JA1-L

This aftermarket 8972402101 RHF4H- turbocharger is a replacement unit designed for Isuzu 4JA1-L engines, including the D-Max 2.5 TD. It serves as an aftermarket replacement application for Isuzu D-Max, Rodeo, and TF Series vehicles, with six associated OEM reference numbers available for fitment verification.

Key Specifications

• Part Number: 8972402101
• Product Type: Turbocharger
• Turbo Model: RHF4H-
• Packing Dimensions: 21 x 23 x 26 cm
• Gross Weight: 7 kg
• OEM Reference Numbers: 8972402102, 8-97240-210-2, VA420037, VB420037, VC420037, VIDA
• Image Availability: High-resolution studio shots available

These factual specifications support initial identification. Buyers should use the part number and model RHF4H- to cross-check against their existing unit. The listed OEM reference numbers serve as verification clues for fitment confirmation.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• ISUZU > ISUZU D-MAX 2 5 TD > ISUZU 4JA1-L 136HP(VIDA)
• ISUZU > Isuzu Rodeo > Isuzu 4JA1-L
• ISUZU > Isuzu TF > Isuzu TF Series > Isuzu 4JA1-L

This RHF4H- turbocharger is listed for Isuzu 4JA1-L engine applications, including the D-Max 2.5 TD, Rodeo, and TF Series. Use these vehicle and engine clues as reference points to verify fitment against your existing unit. Confirm the part number 8972402101 and associated OEM reference numbers, such as 8972402102 and VA420037, before ordering. Technical fitment support is available to help buyers confirm the correct replacement application for their specific vehicle configuration.

Technical Notes

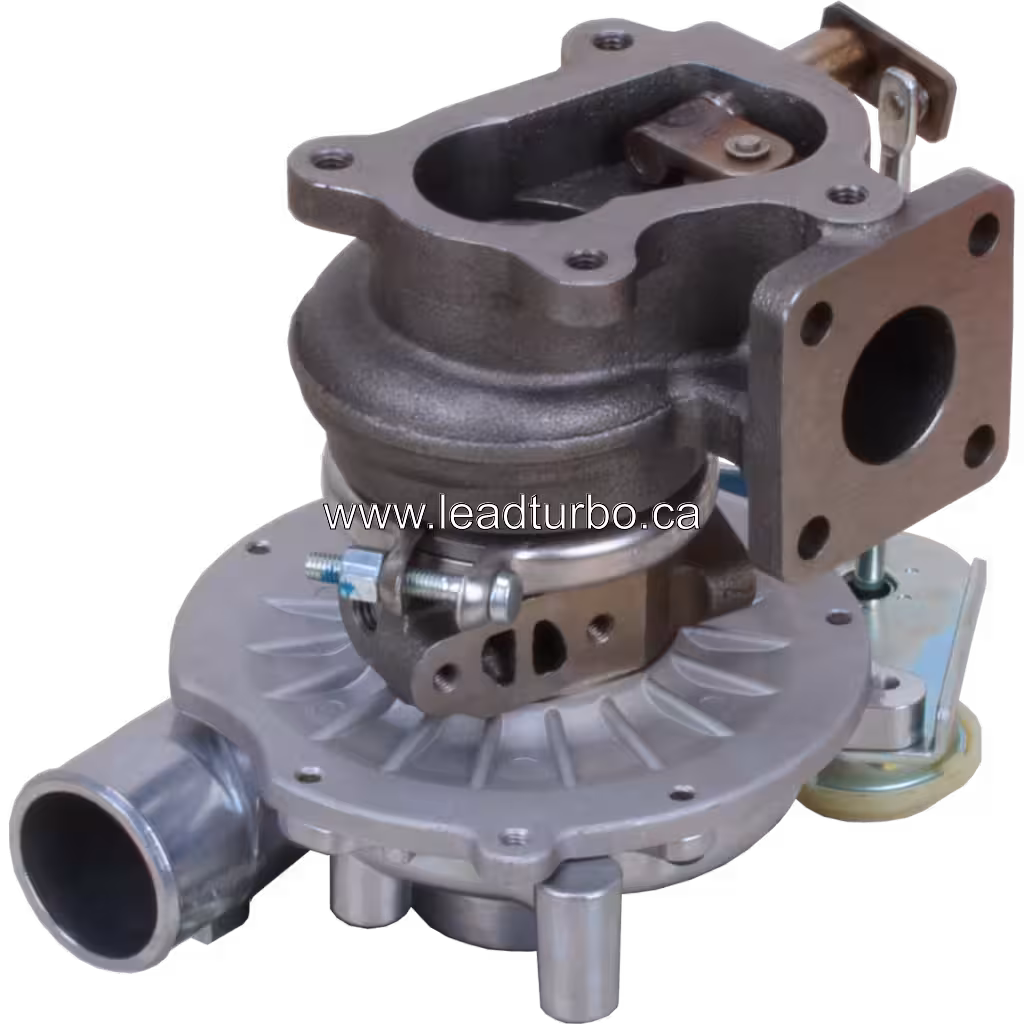

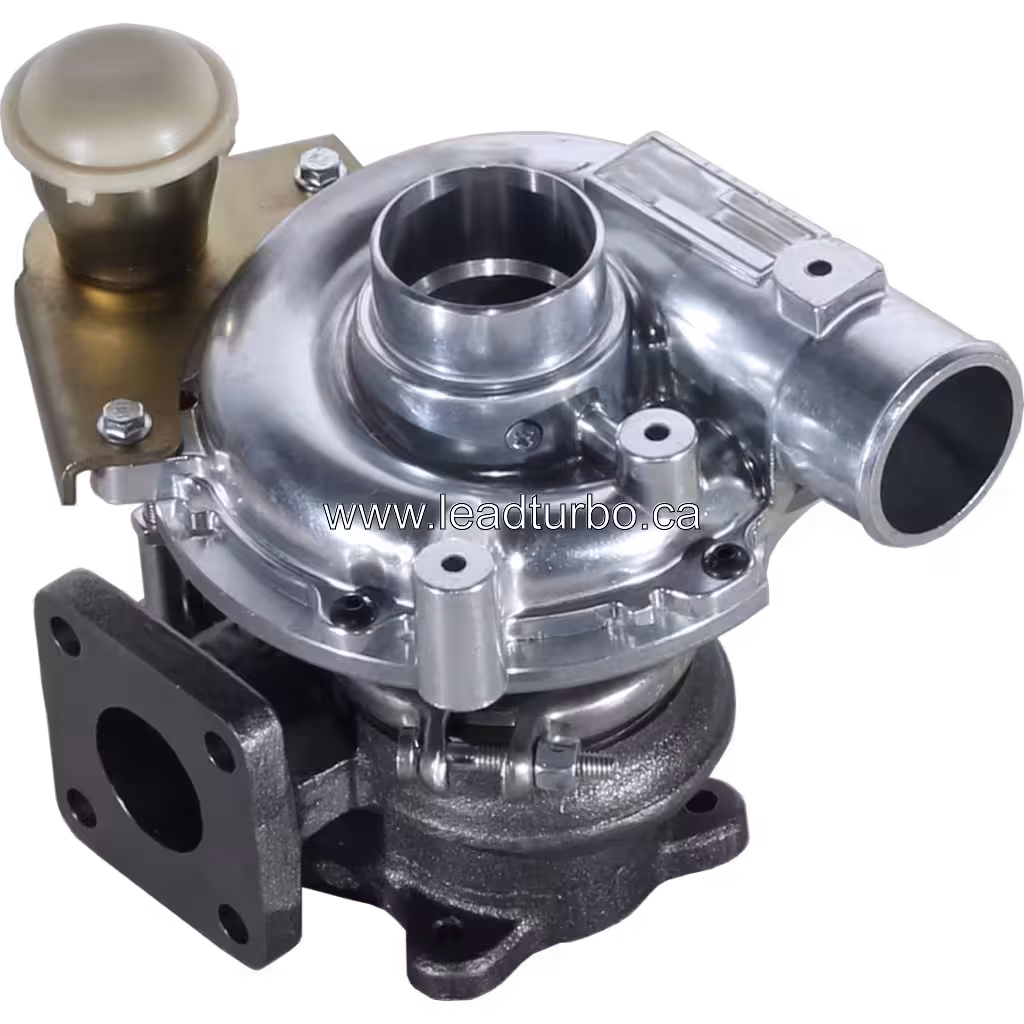

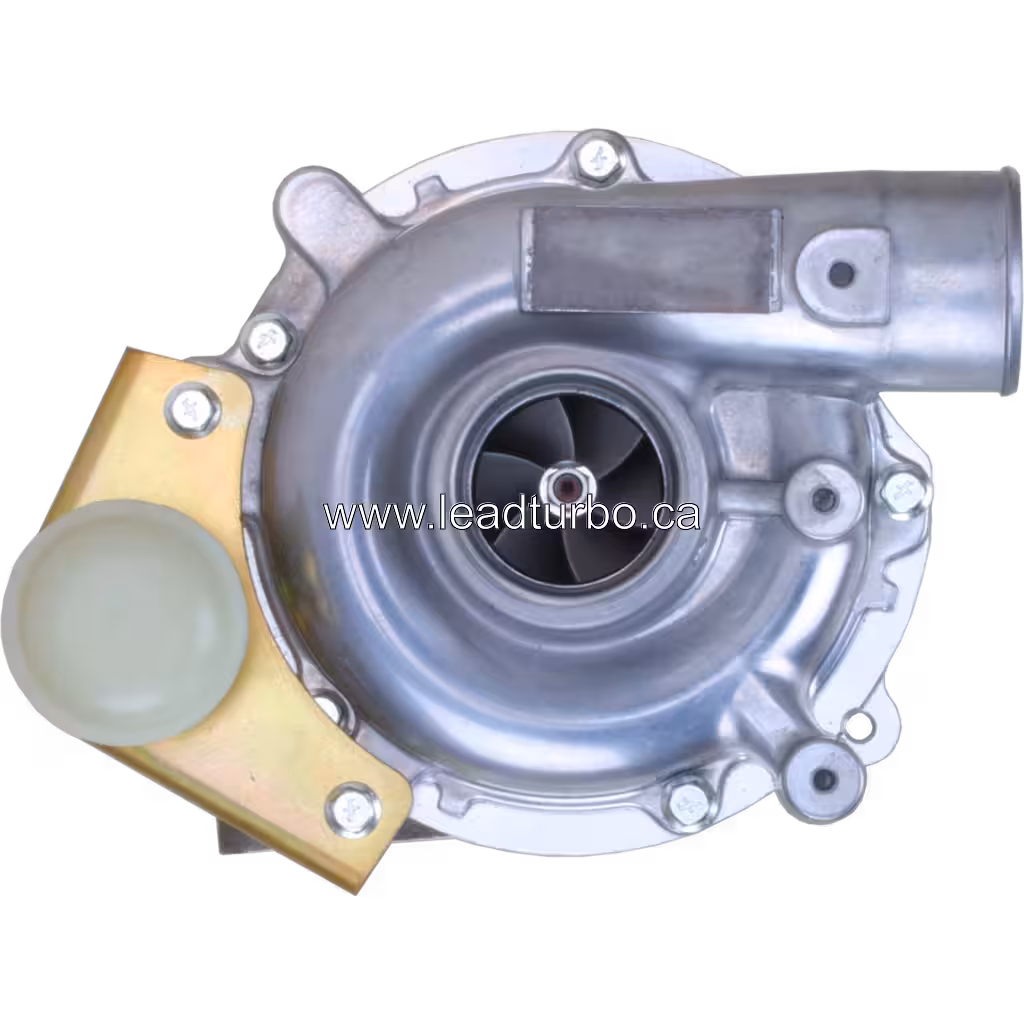

The RHF4H- turbocharger features a silver compressor housing with a visible impeller and a dark grey cast iron turbine housing. A gold-colored bracket supports a white plastic oil reservoir cap, while the turbine side includes a square flange with four bolt holes. Visible mounting studs and a coolant outlet port are present on the housing. These visual details help buyers confirm the physical configuration of the unit. Verify these features against your existing turbocharger to ensure the replacement application matches your specific Isuzu 4JA1-L engine setup.

B2B Supply

LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing and worldwide shipping for this 8972402101 RHF4H- turbocharger. Technical fitment support is available to help verify the part number, engine code, and OEM reference numbers against your specific Isuzu 4JA1-L application. Contact our team to confirm stock availability and logistics details for bulk orders or single-unit replacements.
