3594085 HC5A Turbocharger Replacement for CUMMINS KTA38-C

This aftermarket 3594085 HC5A turbocharger is a replacement unit for Terex TR100 Rigid Mining Dump Trucks equipped with CUMMINS KTA38-C engines. It serves as an aftermarket replacement application for units associated with OEM reference numbers such as 3525504 and 3594086, supporting fleet maintenance and repair operations.

Key Specifications

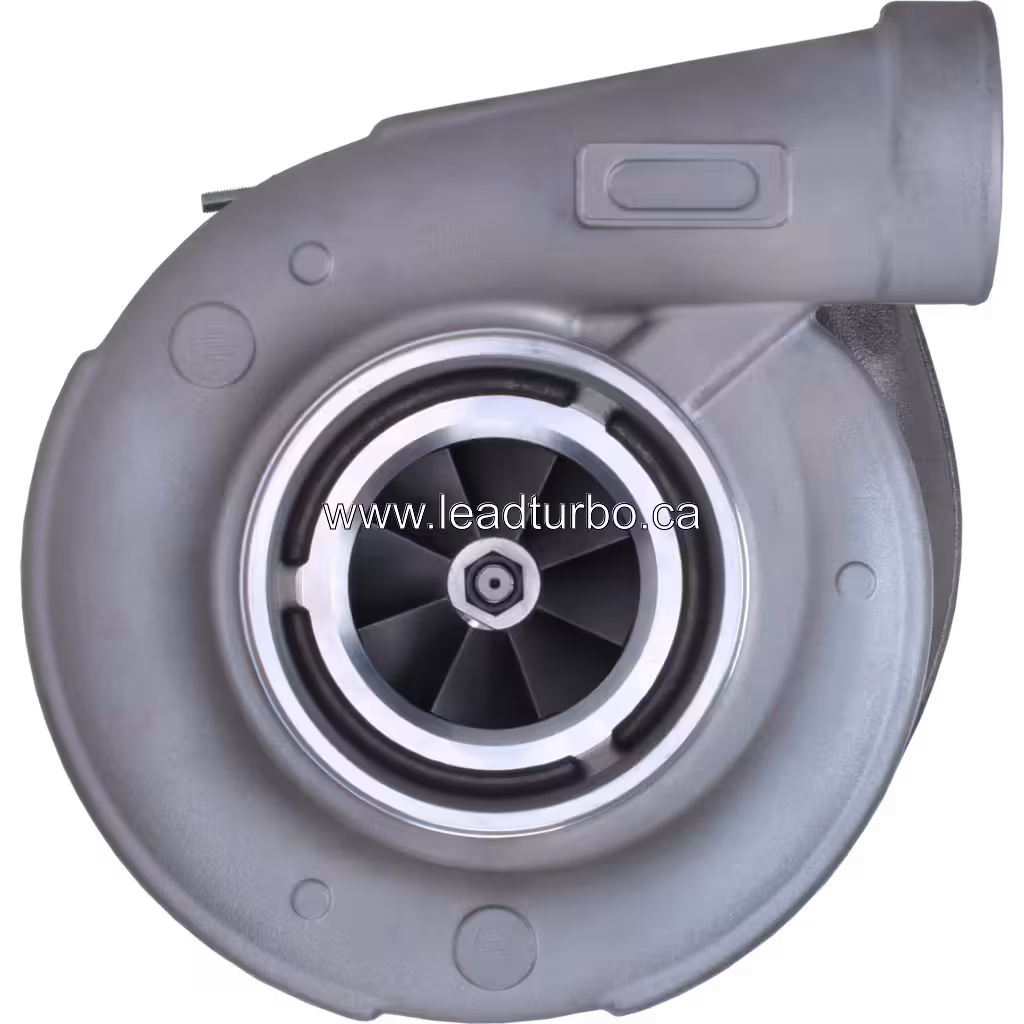

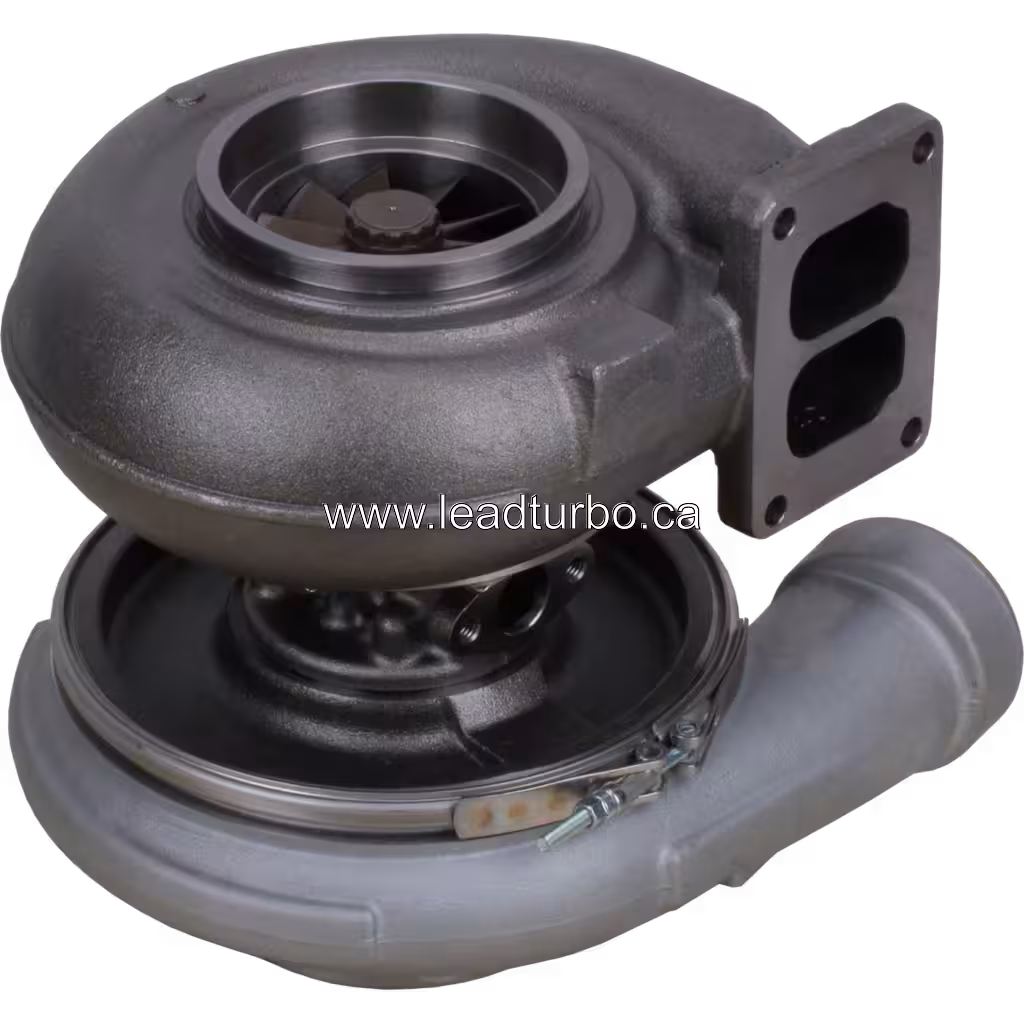

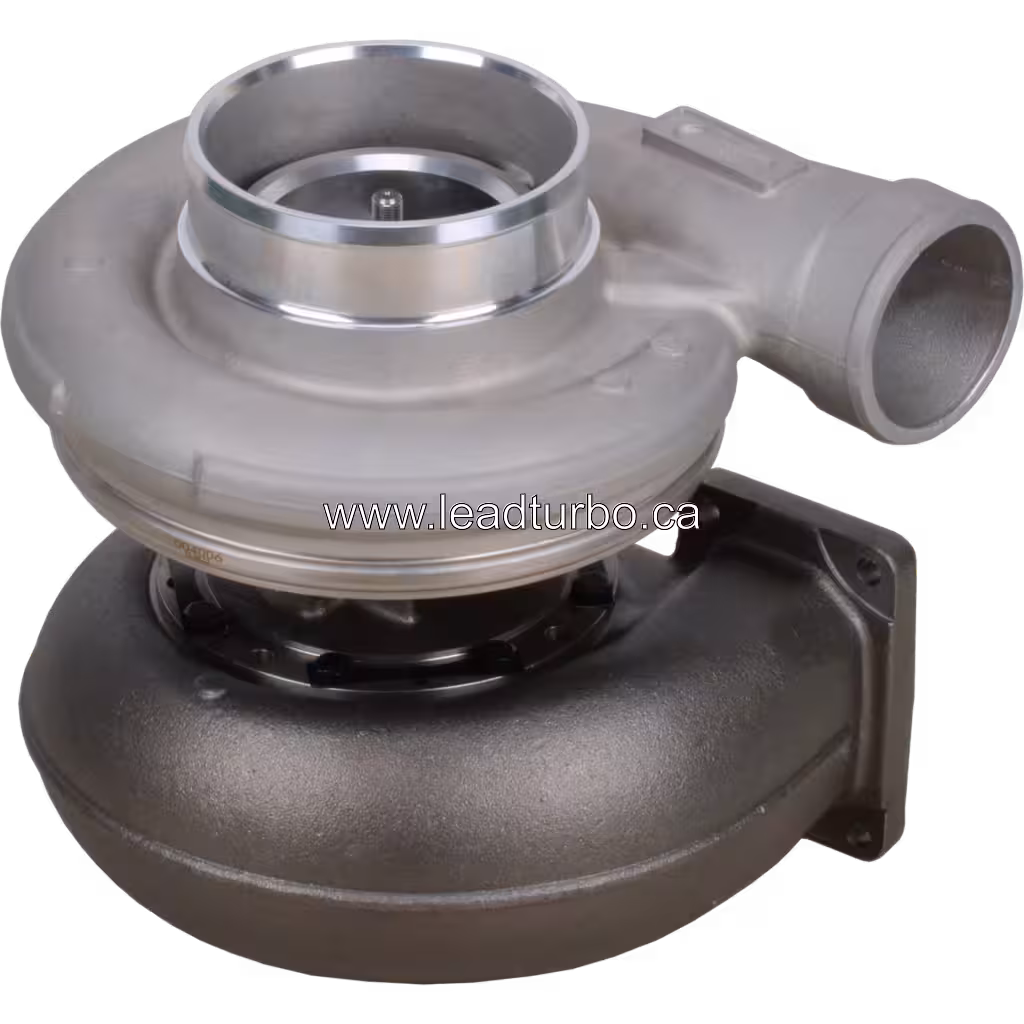

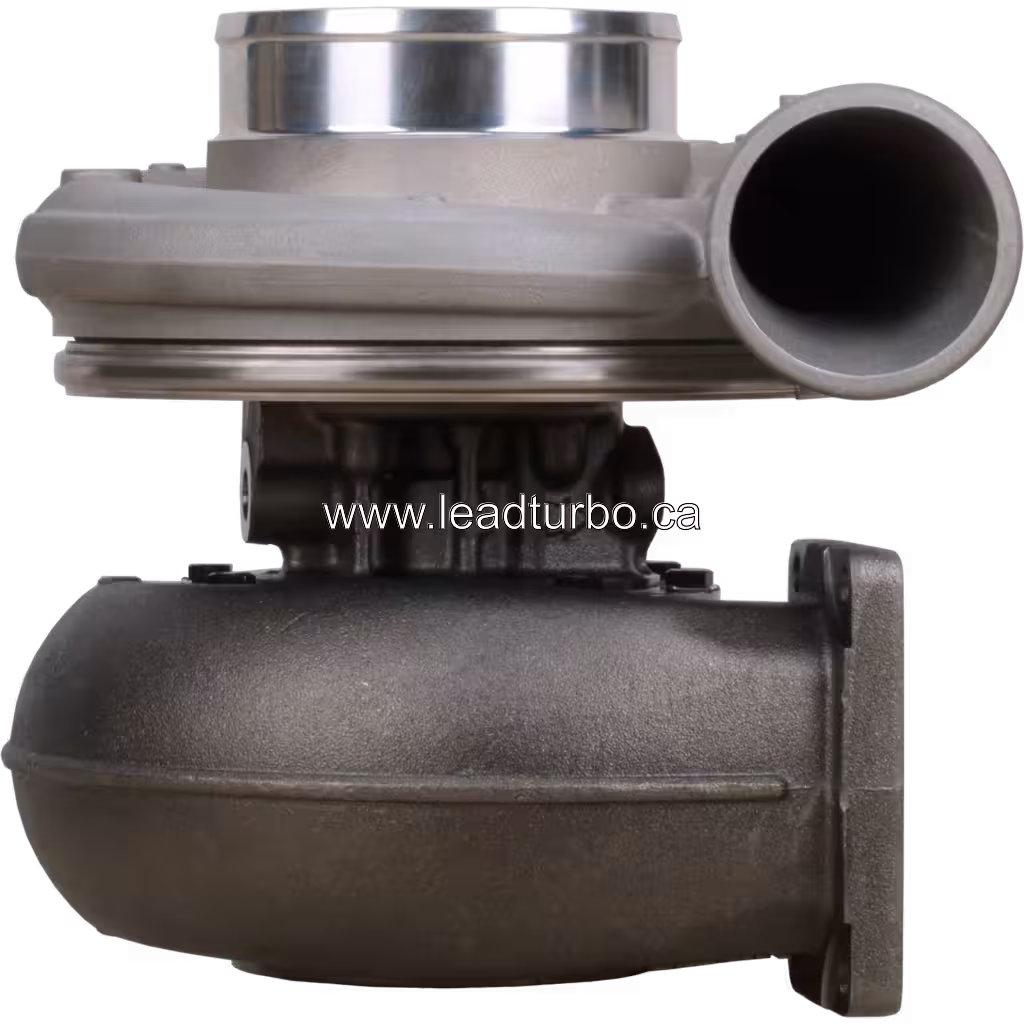

The 3594085 HC5A turbocharger is a complete aftermarket replacement unit designed for CUMMINS KTA38-C engines in Terex TR100 mining trucks. It features a two-part housing assembly with a dark cast-iron turbine section and a lighter compressor housing, connected by a central bearing housing. The turbine inlet flange includes two large rectangular openings, while the compressor inlet displays a polished metallic impeller. Visible mounting flanges and a water seal gasket at the housing junction support standard installation procedures. Buyers should verify the flange type and bolt pattern against their existing unit to ensure proper fitment for their specific application.

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• Terex > TR100 > TR100 Rigid mining dump truck > CUMMINS KTA38-C

This HC5A turbocharger is listed for Terex TR100 Rigid Mining Dump Trucks equipped with CUMMINS KTA38-C engines. It is associated with OEM reference numbers including 3525504, 3594086, 3594087, and 3594088. Buyers should verify the part number, engine code, and specific vehicle application against their service records before ordering. For twin-turbo or bi-turbo setups, confirm whether this unit is intended for the primary or secondary position. Technical fitment support is available to help validate flange types and bolt patterns for your specific mining truck configuration.

Technical Notes

The HC5A configuration is a large-displacement turbocharger designed for high-output diesel applications. Visible features include a two-port turbine inlet flange and a central bearing housing connecting the turbine and compressor sections. A water seal gasket is visible at the housing junction, which is critical for maintaining oil and coolant integrity during operation. Buyers should verify the compressor housing A/R ratio against their existing unit to ensure airflow characteristics match the CUMMINS KTA38-C engine requirements. For twin-turbo setups, confirm whether this unit is intended for the primary or secondary position. Technical fitment support is available to validate specific housing dimensions and mounting flange patterns before shipment.

B2B Supply

LeadTurbo supports B2B buyers, repair shops, and fleet parts distributors with volume pricing for the 3594085 HC5A turbocharger. Units ship worldwide in 34x34x38 cm cartons with a gross weight of 38 kg. Technical fitment support is available to verify flange types, bolt patterns, and OEM reference numbers such as 3525504 and 3594086 before shipment. Contact our team for bulk orders or application-specific validation for CUMMINS KTA38-C mining truck applications.
