852179-5001S GT2263KLNV Turbocharger for Hino J05E & N04C Engines
852179-5001S GT2263KLNV aftermarket turbocharger for Hino J05E and N04C engines. Reference application includes Hino 155, 300, and 500 series. Verify part number, engine code, and OEM reference 17201-E0895 before ordering.
Subtotal: US$ 1100.00
Send an InquiryThe 852179-5001S GT2263KLNV is an aftermarket replacement turbocharger designed for Hino J05E and N04C engines. This unit serves as a reference application for Hino 155, 300, and 500 series vehicles, as well as Toyota Dyna and Kobelco SK170 models. Verify your specific engine code and OEM reference 17201-E0895 before ordering to ensure correct fitment.
Key Specifications
- Part Number: 852179-5001S
- Product Type: Turbocharger
- Turbo Model: GT2263KLNV / GT22V
- OEM Reference: 17201-E0895
- Packing Dimensions: 21 x 23 x 26 cm
- Gross Weight: 9 kg
- Image Availability: High-resolution studio views available

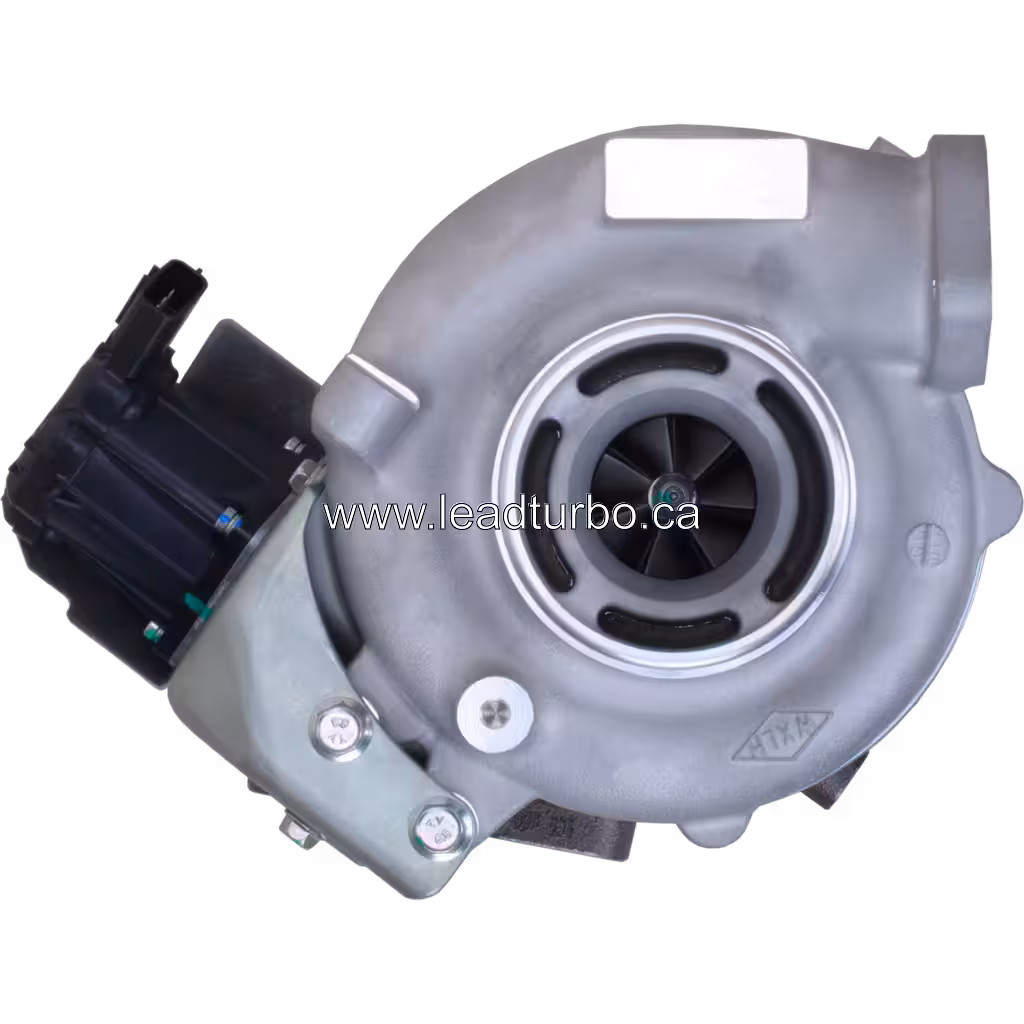

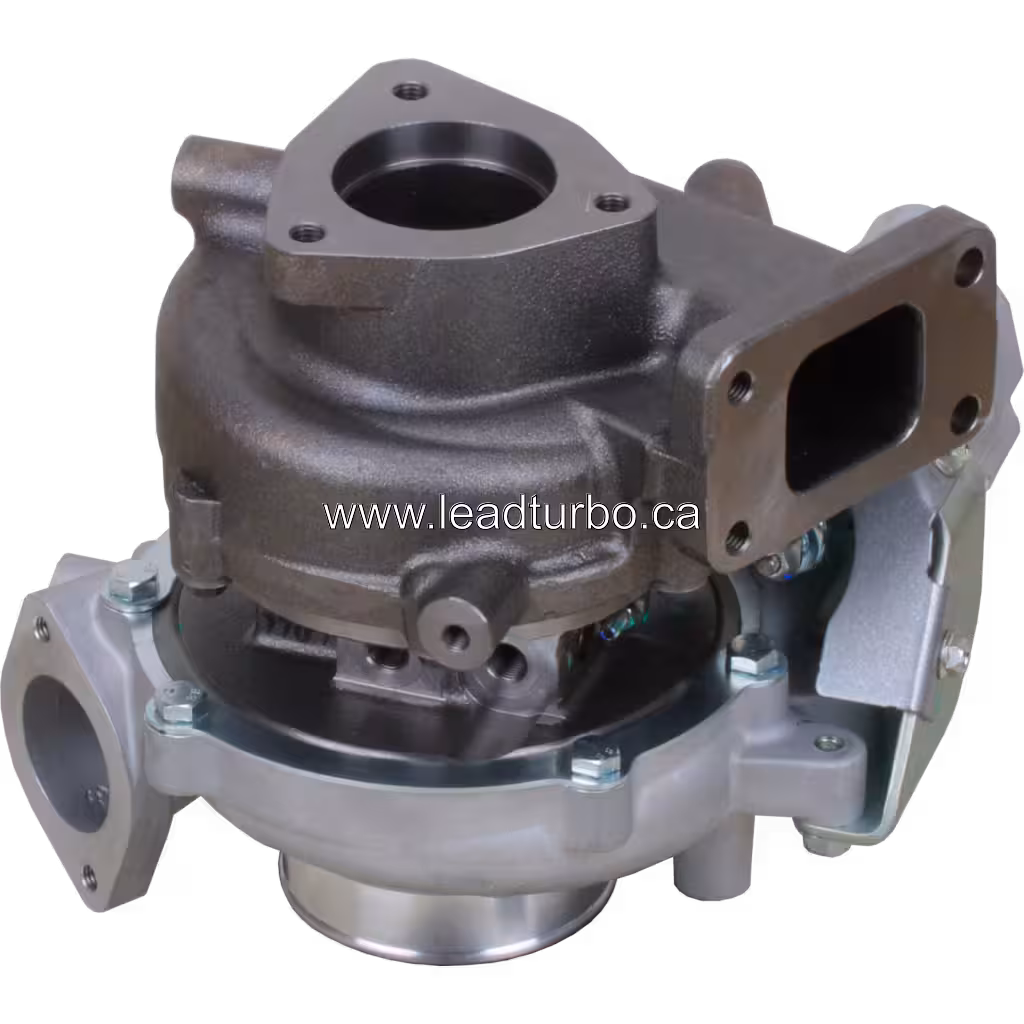

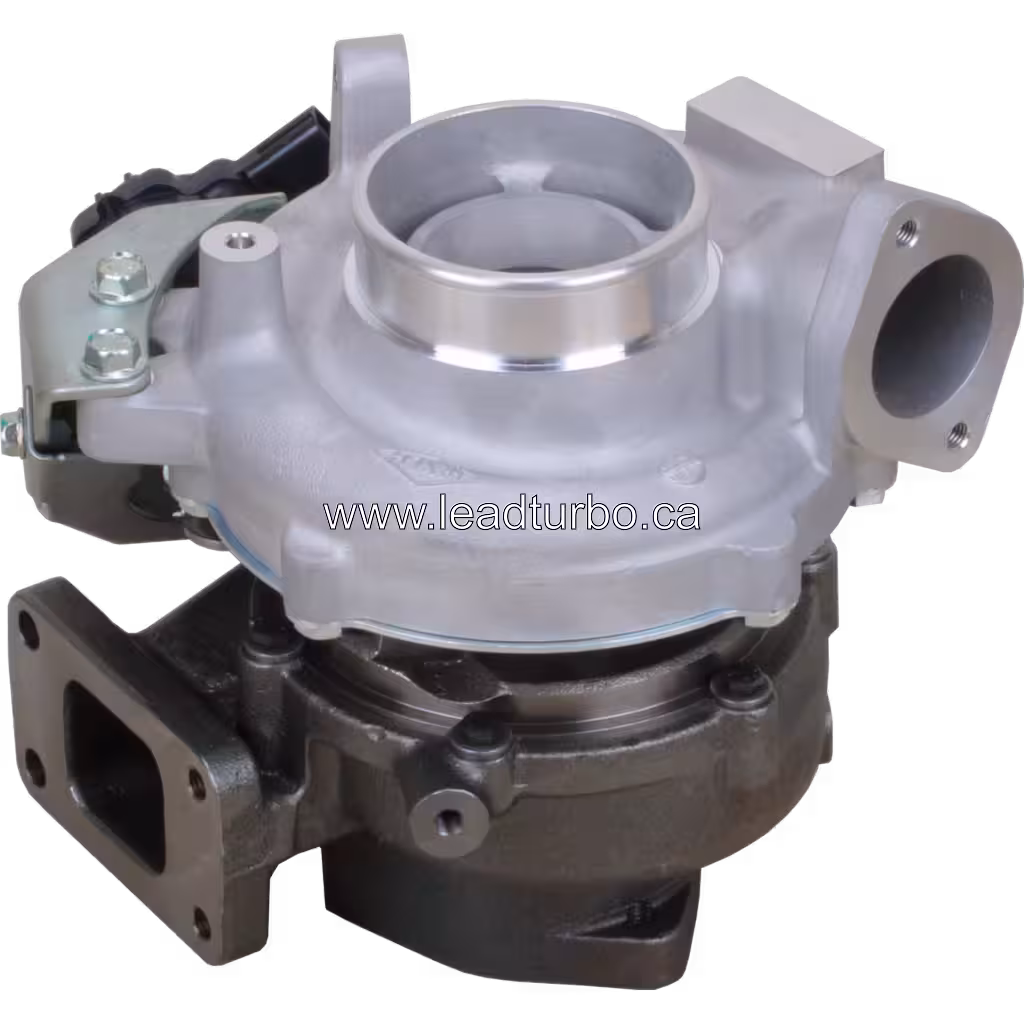

This unit features a two-shell construction with a dark cast turbine housing and light grey compressor housing. Visible features include a variable geometry turbine system with internal vanes, a black actuator assembly with an electrical related electrical detail, and a square turbine inlet flange with four bolt holes. The compressor outlet uses a round flange with two threaded holes, while the turbine outlet has a round flange with four bolt holes. A mounting bracket with two bolt holes is located on the compressor housing. Use these visual details to verify physical configuration against your existing unit before ordering.
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- HINO > HINO FC EURO 4
- HINO > Hino 155 > 195 Series > Hino J05E
- HINO > Hino 155 > 195 Series > Hino 195 > Hino J05E
- HINO > Hino 195 > Hino 195H > Hino J05E
- HINO > Hino 300 Series > Hino 300 Series 616 > Hino N04C
- HINO > Hino 300 Series > Hino J05E
- HINO > Hino 300 Series > Hino N04C
- HINO > Hino 300 Series > Hino Dutro > Hino N04C
- HINO > Hino 500 Series > Hino 500 Series FC9JJTC > Hino J05E
- HINO > Hino Dutro > Hino Dutro 2RG-XZC605M > Hino N04C
- HINO > Hino Dutro > Hino Dutro 2RG-XZC645M > Hino N04C
- HINO > Hino Dutro > Hino Dutro TKG-XZU605M > Hino N04C
- HINO > Hino M Series > Hino M5 > Hino J05E
- HINO > Hino Ranger > Hino Ranger TKG-FD9JLAA > Hino J05E
- KOBELCO > Kobelco SK170 > Kobelco SK170-10 > Hino J05E
- TOYOTA > Toyota Dyna > Hino N04C
- TOYOTA > Toyota ToyoAce > Toyota Toyoace 200 > Hino N04C
- Tadano > Tadano GR-150 > Tadano GR-150XL > Hino J05E
- Tadano > Tadano GR-XL Series > Tadano GR-200XL > Hino J05E
This turbocharger is listed for Hino J05E and N04C engines, with reference applications including Hino 155, 195, 300, 500, and Dutro series. It also appears in Toyota Dyna, ToyoAce, Kobelco SK170, and Tadano crane applications. Use the OEM reference 17201-E0895 and part number 852179-5001S to verify fitment against your specific vehicle or machine. Confirm the engine code, production year, and existing turbo configuration before ordering, as mid-production updates may alter flange or actuator details. Technical fitment support is available to help match the correct unit for your fleet or rebuild project.
Technical Notes
The GT2263KLNV unit features a visible variable geometry turbine (VGT) system with internal vanes and a black actuator assembly equipped with an electrical related electrical detail. This configuration is associated with efficiency and reduced lag in general technical references. Verify the physical actuator type, related electrical detail orientation, and vane mechanism against your existing unit, as these details may vary by production year. Confirm the square turbine inlet flange and round compressor outlet flange match your engine bay layout before ordering.
B2B Supply
LeadTurbo supports B2B buyers with volume pricing and worldwide shipping for the 852179-5001S GT2263KLNV turbocharger. Technical fitment support is available to help verify engine codes, OEM reference 17201-E0895, and vehicle applications before ordering. Inquire for wholesale quotes on Hino J05E and N04C applications, including Hino 155, 300, and 500 series, as well as Toyota Dyna and Kobelco SK170 models. Confirm your specific unit configuration and production year to ensure the correct replacement application for your fleet or rebuild project.
Product FAQ
HINO and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by HINO.
Compatibility Verify part number 852179-5001S, engine code (J05E or N04C), vehicle application, production year, and OEM reference 17201-E0895 before ordering. This is an aftermarket replacement application; confirm fitment against your specific unit configuration.
Customer Reviews
Share installation notes, fitment feedback, or service experience for this product.
No customer reviews have been added for this product yet.
