4035499 HX35 Turbocharger for Case IH & DCEC
Aftermarket 4035499 HX35 turbocharger for DCEC and Case IH applications. Verify engine code and OEM references 3787189, 4035497, 4035498 before ordering.
Show more cross references
3787189 4035497 4035498Subtotal: US$ 138.00
Send an InquiryThis aftermarket 4035499 HX35 turbocharger is a replacement assembly for DCEC and Case IH applications, including Cummins 6BT5.9 engines. Verify your specific engine code and OEM reference numbers 3787189, 4035497, or 4035498 before ordering to ensure correct fitment for your vehicle or equipment.
Key Specifications
- Part Number: 4035499
- Product Type: Turbocharger
- Turbo Model: HX35
- Application Clues: DCEC, Case IH, Cummins 6BT5.9
- Packing Dimensions: 21 x 23 x 26 cm
- Gross Weight: 13 kg
- OEM Reference Numbers: 3787189, 4035497, 4035498
- Image Availability: High-resolution studio views showing compressor and turbine housings
Application & Compatibility
Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:
- DCEC
- Case IH > Case IH 1600 Series > Case Combine 1640 > Cummins 6BT5.9
- Case IH > Case IH 9000 Series > Case Tractor 1896 > Cummins 6BT5.9
- Case IH > Case IH 96 Series > Case Tractor 2096 > Cummins 6BT5.9
- Case IH > Case IH Axial-Flow > Case Combine 1644 > Cummins 6BT5.9
- Case IH > Case IH Maxxum > Case IH 5140 > Cummins 6T-590
- Case > Case 1845 > Case Skid Steer 1845C > Cummins 4BTA
- Case > Case 6T-590 > Case Loader 6T-590 > Cummins 6BT5.9
- DAF > DAF Truck > DAF Truck 2000 > Cummins 6BT-590
- Müller > Müller TM Series > Miller 70C Tractor > Cummins 6BT-590
This HX35 turbocharger assembly is listed for DCEC and Case IH applications, including Cummins 6BT5.9 and 4BTA engines. Reference applications include Case IH 1600 Series combines, 9000 Series tractors, and Case skid steers. Buyers should verify the specific engine code, production year, and mounting details against OEM reference numbers 3787189, 4035497, or 4035498. Confirm that the turbine housing flange and oil return line alignment match your existing setup before ordering this replacement unit.
Technical Notes

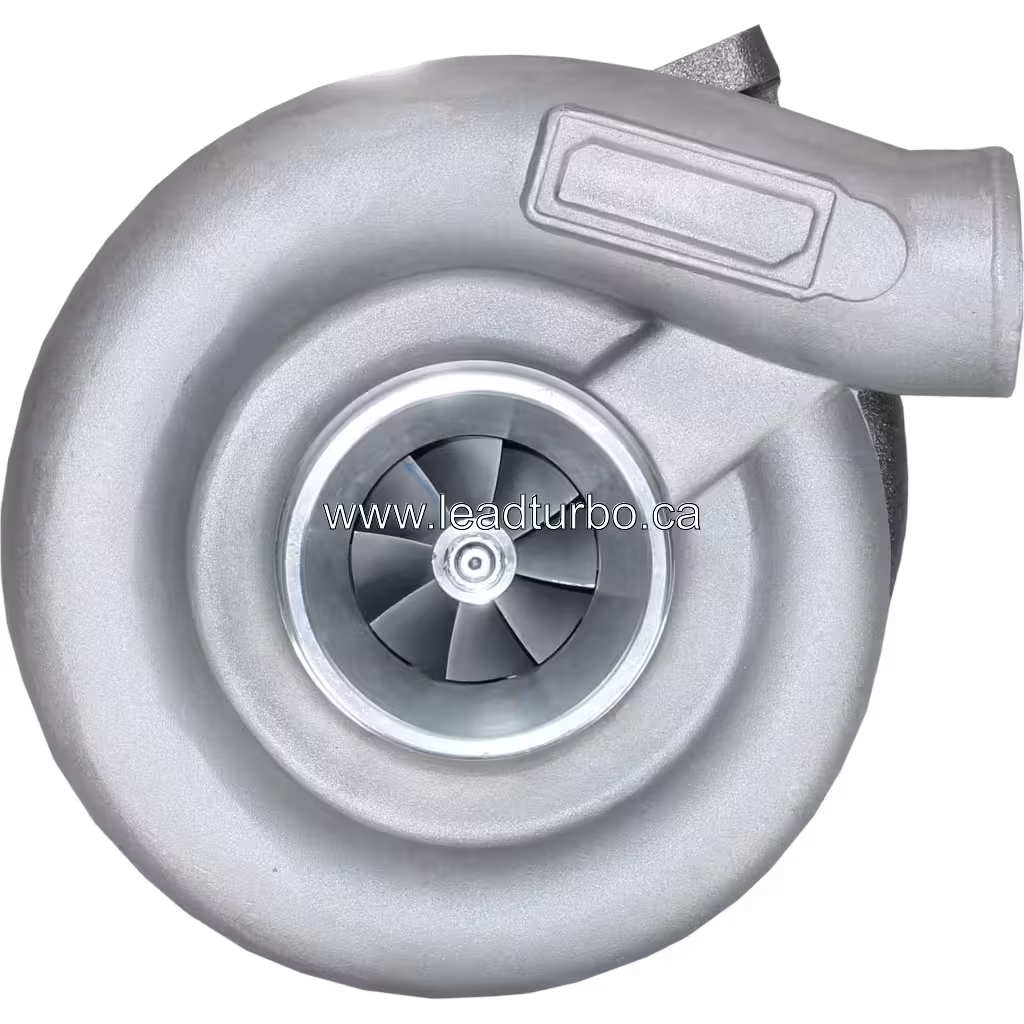

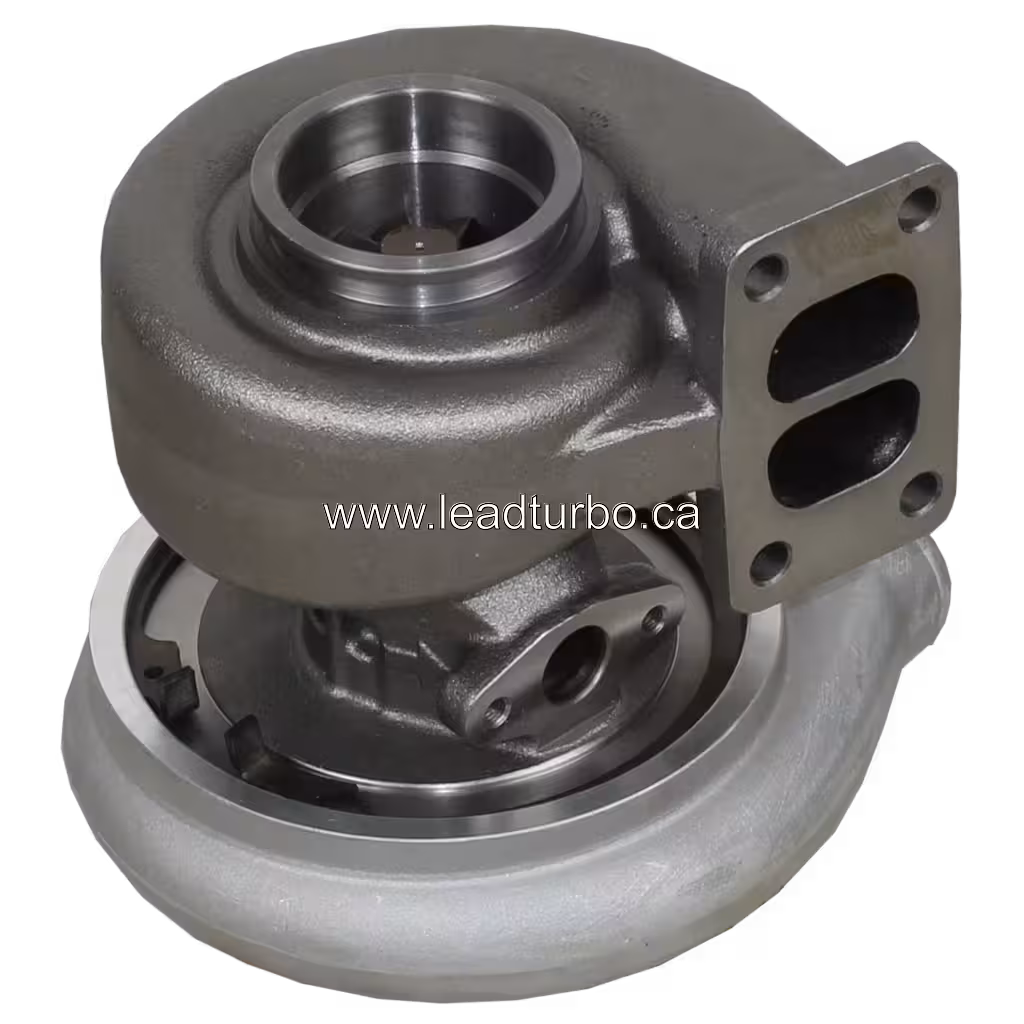

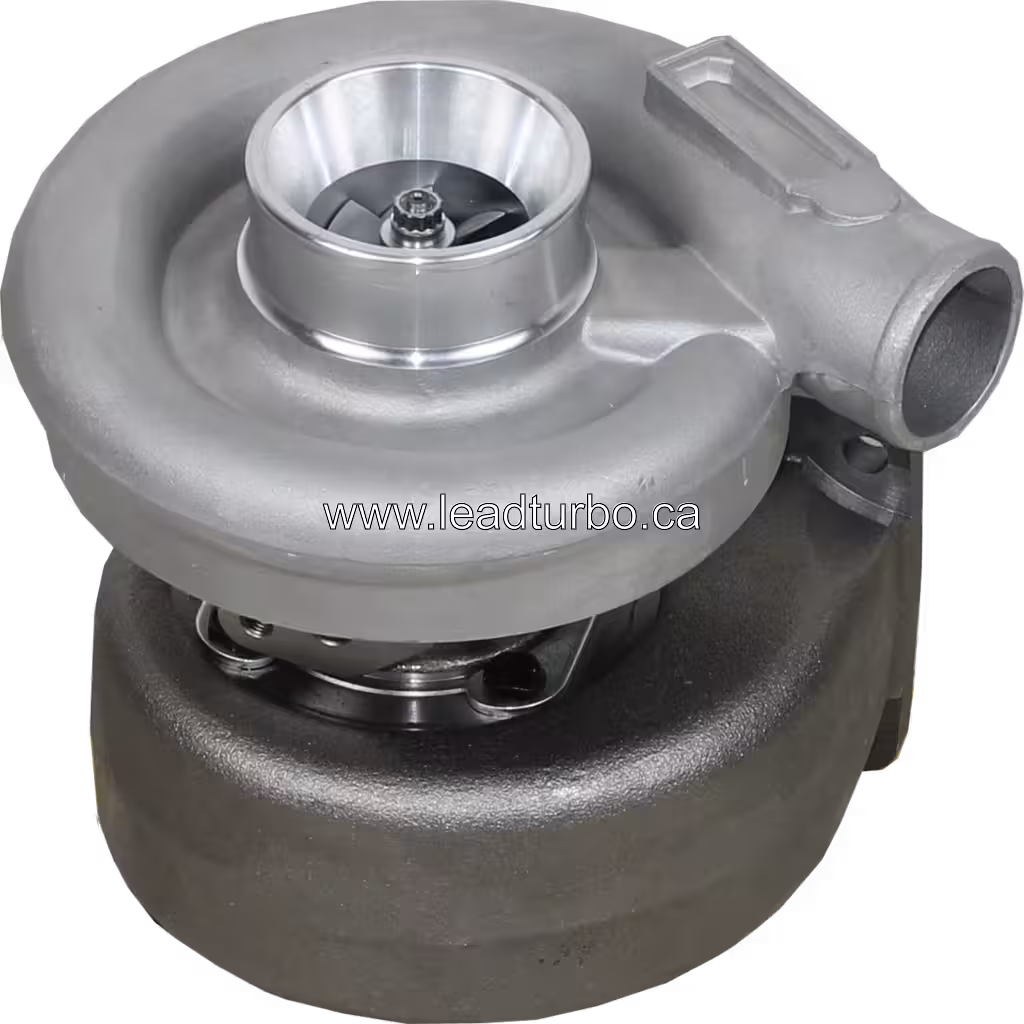

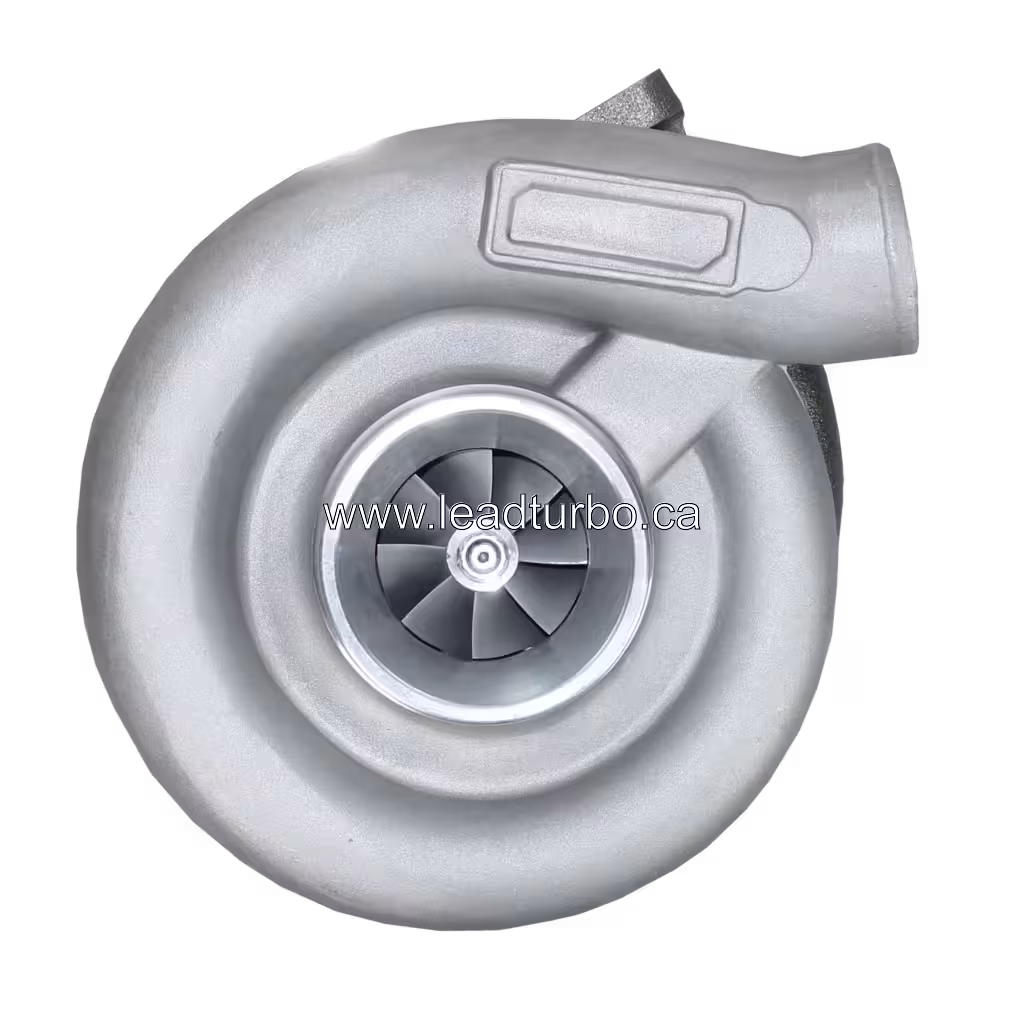

The HX35 turbocharger assembly features a silver compressor housing with a visible multi-blade impeller and a dark grey cast turbine housing. A rectangular mounting flange with four bolt holes is visible on the turbine side, while a water separator or drain port is present on the turbine housing in the bottom view. Buyers should verify that the mounting flange bolt pattern and oil return line alignment match their specific engine block and intake manifold configuration. Confirm the gasket kit completeness and drain angle against OEM reference numbers 3787189, 4035497, or 4035498 to ensure proper installation for Case IH or DCEC applications.
B2B Supply
LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing and worldwide shipping for the 4035499 HX35 turbocharger. Technical fitment support is available to help verify mounting detailss and oil return line alignment for Case IH and DCEC applications. Confirm your specific engine code and OEM reference numbers 3787189, 4035497, or 4035498 before placing an order. Contact our team for bulk inquiries or to request pre-shipment inspection details for your fleet or workshop needs.
Product FAQ
DCEC and other product, brand and model names are the property of their respective owners and are used for reference and application-lookup only. LeadTurbo is not affiliated with or endorsed by DCEC.
Compatibility Verify part number 4035499, engine code (e.g., Cummins 6BT5.9), vehicle application, production year, and OEM reference numbers (3787189, 4035497, 4035498) before ordering. Confirm mounting bracket and oil return line alignment for your specific application.
