3523850 BP Turbocharger Back Plate for CUMMINS KTA38 HC5A

This FOR 3523850 BP back plate is an aftermarket replacement component for HC5A turbochargers, specifically listed for CUMMINS KTA38 and K1500E engine applications. It serves as a structural support part for turbocharger rebuilds, with 29 associated OEM reference numbers available for fitment verification.

Key Specifications

• Part Number: FOR 3523850 BP
• Product Type: Turbocharger Back Plate
• Turbo Model: HC5A
• Application Clues: CUMMINS KTA38, CUMMINS K1500E
• Packing: 34*36*2 bubble bag
• Gross Weight: 3 kg
• OEM Reference Examples: 3520782-CAST-2, 3524862, 3545532 BP
• Image Availability: High-resolution studio photography showing front, top, and bottom views

Application & Compatibility

Source application path clues for buyer verification. These are source category/application paths, not confirmed fitment claims:

• CUMMINS > CUMMINS K1500E > CUMMINS KTA38
• CUMMINS

This back plate is listed for CUMMINS KTA38 and K1500E engine applications. It is associated with 29 OEM reference numbers, including 3520782-CAST-2, 3524862, and 3545532 BP. These references serve as verification clues for buyers identifying the correct HC5A turbocharger configuration.

• Reference Application: CUMMINS KTA38, CUMMINS K1500E
• OEM Reference Examples: 3520782-CAST-2, 3524862, 3545532 BP, 3545702 BP
• Verification Step: Cross-check your specific turbo model and engine code against these numbers before ordering.

Buyers should confirm the exact part number and engine application to ensure the correct replacement application. Technical fitment support is available to assist with reference number matching.

Technical Notes

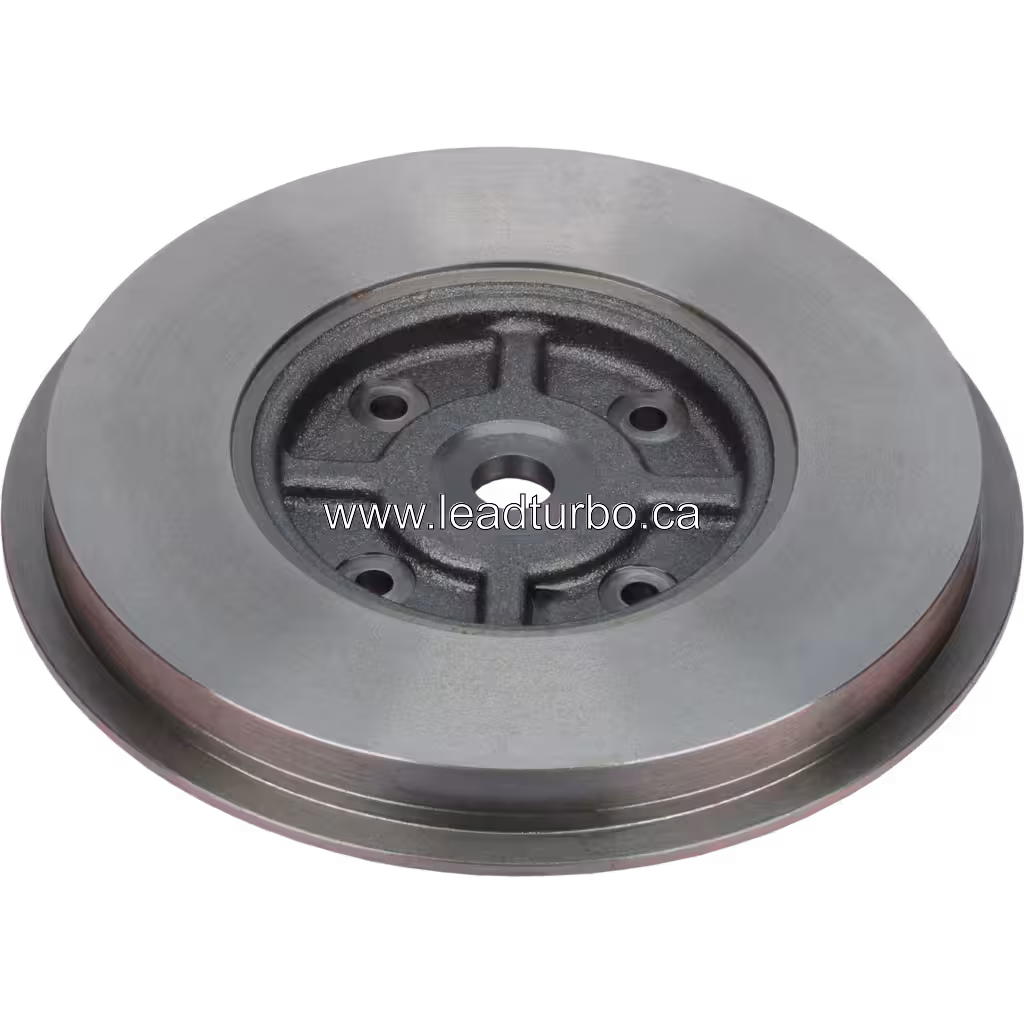

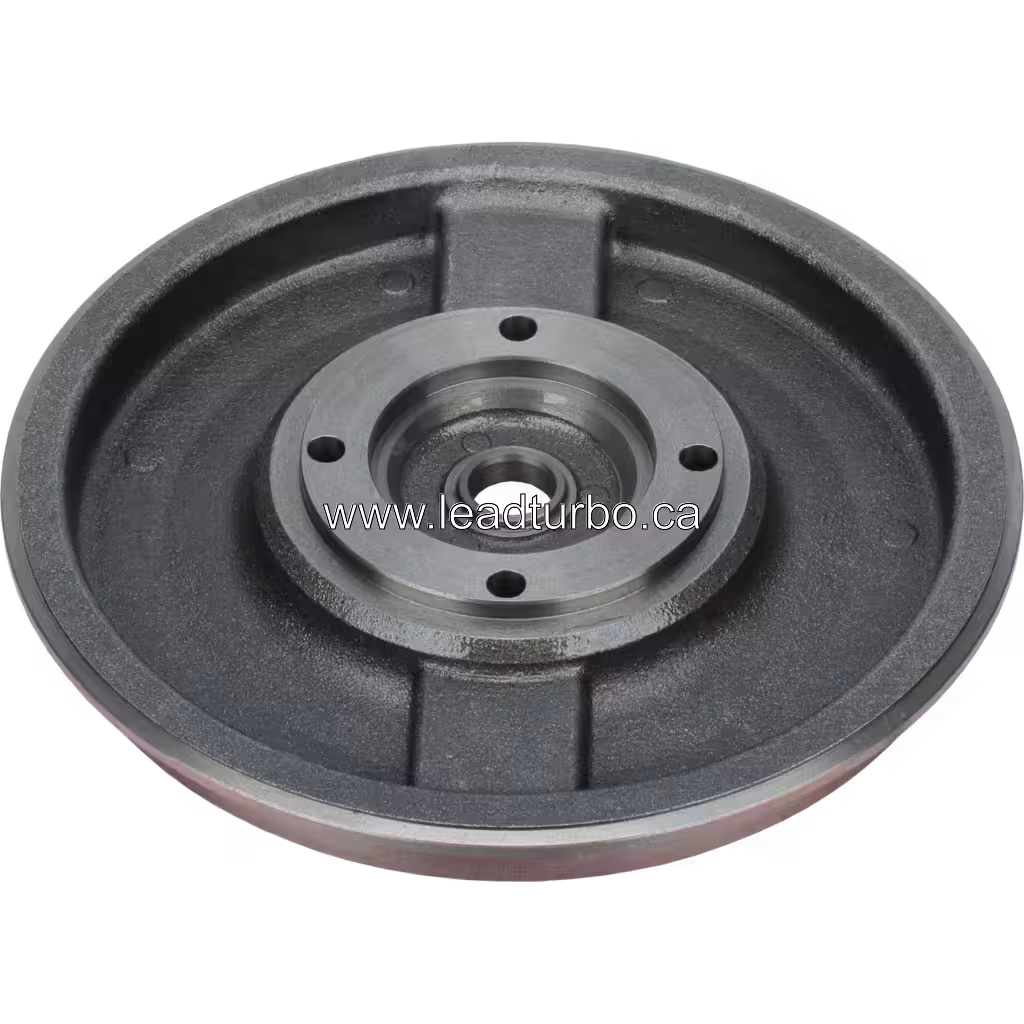

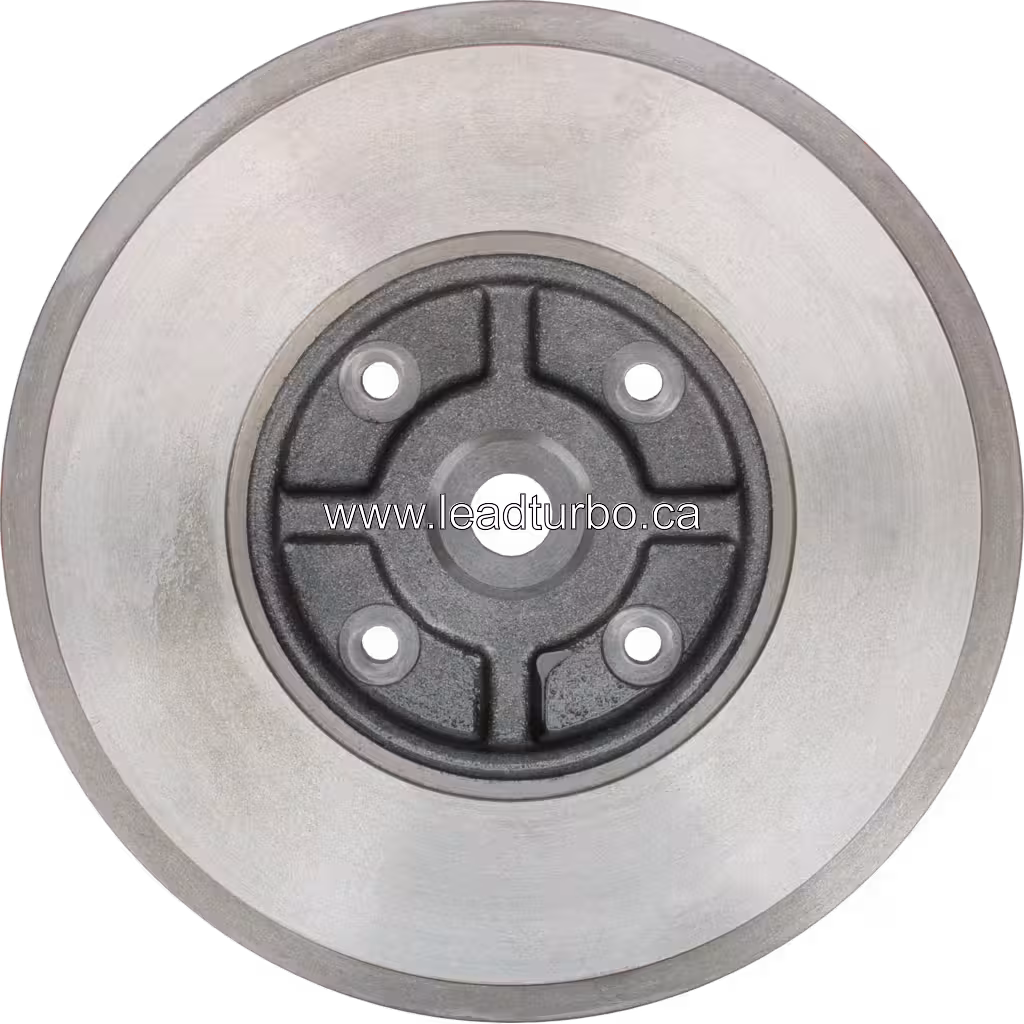

The HC5A turbocharger back plate is a structural component that supports the turbine housing assembly. Visible features include a circular metal body with a wide flat outer rim, a central raised hub with a large bore, and four bolt holes arranged around the center. The underside displays cross-shaped internal ribs and a central bearing seat. The surface shows a machined finish on the exterior and a cast-like texture on internal structural parts. Buyers should verify the specific material grade and dimensions against their HC5A turbocharger configuration, as these details are not confirmed by visual inspection alone. Cross-reference the part number FOR 3523850 BP and associated OEM numbers like 3520782-CAST-2 to ensure the correct variant for your CUMMINS KTA38 application.

B2B Supply

LeadTurbo supports B2B buyers, repair shops, and distributors with volume pricing and worldwide shipping for this FOR 3523850 BP back plate. Technical fitment support is available to help verify the HC5A turbo model, CUMMINS KTA38 application, and associated OEM reference numbers before ordering. For international delivery, confirm transit times for the 3 kg package and ensure the 34*36*2 bubble bag packing meets your receiving standards. Inquire about after-sales support processes and bulk order terms to streamline your procurement workflow.
